Series EVO

Optional accessories Accessories


Model EVO-5001A
EVO-5001A		EVO-8225
EVO-8225		EVO-8227
EVO-8227		EVO-8243
EVO-8243		EVO-9202
EVO-9202		EVO-9205
EVO-9205		EVO-9211

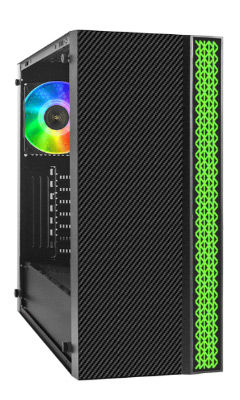

EVO-9211
Cases FeaturesThe color and backlight mode of the front panel are controlled by a button located at the top of the front panel.-----
Case TypeMidiTowerMidiTowerMidiTowerMidiTowerMiditowerMiditowerMiditower
Motherboard SupportATX, mATX, ITXATX, mATX, ITXATX, mATX, ITXATX, mATX, ITXATX, micro ATX, mini ATX, ITXATX, micro ATX, mini ATX, ITXATX, micro ATX, mini ATX, ITX
Chassis MaterialSteelSteelSteelSteelSteelSteelSteel
Material Thickness, mm0,550,450,550,450,60,560,55
Material of front panelPlasticPlasticPlasticPlasticPlasticPlasticPlastic
Material of left panelTempered glassTempered glassTempered glassTempered glassTempered glassTempered glassTempered glass
Material of right panelSteelSteelSteelSteelSteelSteelSteel
Screwless AccessYesYesYesYesYesYesYes
Number of screws for mounting the side panel, pcs6666666
Window on the side panelYesYesYesYesYesYesYes
LED BacklightMulti-color fixed at the fans on the front panelMulti-color fixed fan on the front and back wall and dynamic RGB strip on the front panelMulti-color fixed at the fans on the front panelMulti-color fixed at the fans on the front panelMulti-color -n-adjustable fan lighting on the front panelMulti-color -n-adjustable fan lighting on the front panelMulti-color adjustable lighting on the front panel
Case ColorBlackBlackBlackBlackBlackBlackBlack
Chassis ColorBlackBlackBlackBlackBlackBlackBlack
Power
PSU TypeATXATXATXATXATXATXATX
Power supply locationIn the lower partIn the lower part of the rear sideIn the lower partIn the lower part of the rear sideIn the lower part of the rear sideIn the lower part of the rear sideIn the lower part of the rear side
PSU models*-w/o PSU-w/o PSUw/o PSUw/o PSUw/o PSU
PSU models*500NPX, 600NPX, 700NPX, EVO800500NPX, 600NPX, 700NPX500NPX, 600NPX, 700NPX, EVO800500NPX, 600NPX, 700NPX500NPX, 600NPX, 700NPX500NPX, 600NPX, 700NPX450NPX, 500NPX, 600NPX, 700NPX, EVO800
Recommended ExeGate PSUNPX/EVO SeriesSeries NPXNPX/EVO SeriesSeries NPXSeries NPXSeries NPXSeries NPX
Construction
Internal 3,5" Drive Bay3222112
Internal 2,5" Drive Bay3 (1 instead of 1 internal 3.5")33 (1 instead of 1 internal 3.5")3333 (2 instead of 2 internal 3.5")
Dush Filter (location)In the top and bottom panelsIn the top panel, in the bottom of the caseIn the front, top and bottom panelsIn the top panel, in the bottom of the caseOn the top panelOn the top panel2
Expansion Slots7+2777997
Cooling System
Installed fans on the front panel3 x FRGB 12cm1 x FRGB 12cm3 x FRGB 12cm3 x FRGB 12cm3 x FRGB 12cm3 x FRGB 12cm-
Installed fans on the rear panel-1 x FRGB 12cm----FRGB 12cm
Places for installation on the front panel14 cm x 3 or 12 cm x 312 cm x 314 cm x 3 or 12 cm x 312 cm x 312 cm x 312 cm x 312 cm x 3
Places for installation on the top panel14 cm x 3 or 12 cm x 312 cm x 212 cm x 212 cm x 212 cm x 212 cm x 2-
Places for installation on the rear panel12 cm x 112 cm x 112 cm x 112 cm x 112 cm x 112 cm x 112 cm x 1
Support Liquid Cooling Systems----YesYesYes
A place for water cooling on the top panel.----YesYesYes
Recommended ExeGate fans12 cm12 cm12 cm12 cm12 cm12 cm12/14 cm
Interfaces
Interface locationIn the top panelAt the top of the front panelIn the top panelAt the top of the front panelAt the top of the front panelAt the top of the front panelAt the top of the front panel
USB 2.0 Type-A2222222
USB 3.2 Gen1 Type-A1111111
Audio I/O PortsHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mmHD Audio 2 x 3.5mm
Other parameters
Max. motherboard length, mm244244244244305305270
Max. height of the CPU fan, mm150150150150160160160
Max. PSU length, mm160 (300 instead of 3 internal 3,5")160160 (300 instead of 2 internal 3,5")160187187180
Max. PSU length with drive opposite, mm160160160160187187180
Max. SVGA length, mm310300310300300300330
Max. SVGA length with drive opposite, mm310250310250---
Chassis dimensions
Width, mm210185200185210210190
Height, mm450413440413441442435
Depth, mm340335330335343 + 11 mm (raised bezel for expansion slots (removable))341 + 11 mm (raised bezel for expansion slots (removable))335 + 8 mm
Case Dimensions
Width, mm210200207200210 + 3 mm (protruding bolts of the side door)211 + 3 mm (protruding bolts of the side door)203
Height, mm220427450427451450445
Depth, mm385380380380374 +11 mm (raised bezel for expansion slots (removable))383380
Carton Dimensions
Width, mm265230250230265265260
Height, mm490435420435438446440
Depth, mm610480490480513513495
Net Weight , kg------3,8
Gross Weight , kg4,14,34,414,34,64,74,7
PSU models, PN/EAN
w/o PSUEX295766
4895205160484		EX292858
4895205132153		EX295765
4895205160491		EX292859
4895205132146		EX294965
4895205140981		EX294966
4895205140998		EX299420
4895205188488
450W/NPXEX296316
4895205163263		EX300152
500W/NPXEX296317
4895205163270		EX293014
4895205137226		EX296352
4895205163294		EX293017
4895205137271		EX294971
4895205140899		EX294974
4895205140929		EX300153
600W/NPXEX296318
4895205163393		EX293015
4895205137233		EX296353
4895205163409		EX293018
4895205137257		EX294972
4895205140905		EX294975
4895205140936		EX300154
700W/NPXEX296319
4895205163287		EX293016
4895205137240		EX296354
4895205163300		EX293019
4895205137264		EX294973
4895205140912		EX294976
4895205140943		EX300155
800W/NPXEX300156
800W/EVO RGBEX296071
4895205161955		EX296073
4895205161856		EX296074
4895205161863		EX296075
4895205161870		EX296077
4895205161894		EX296078
4895205161900		EX300157
* At a customer's request Computer Cases can be completed with any PSU
