Series XP

Optional accessories

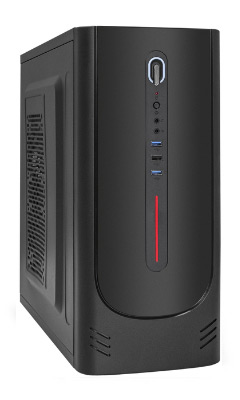

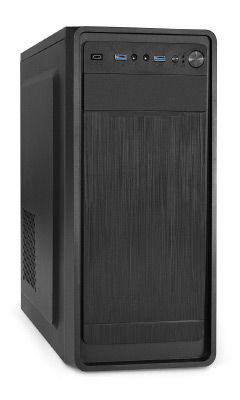

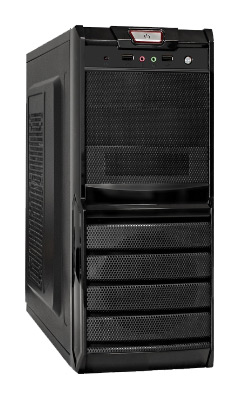

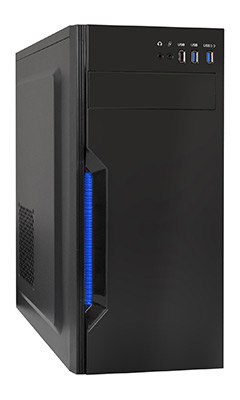

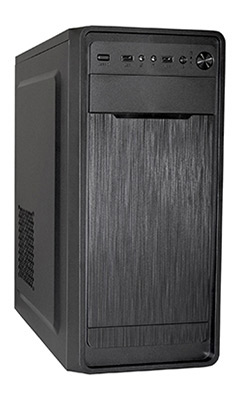

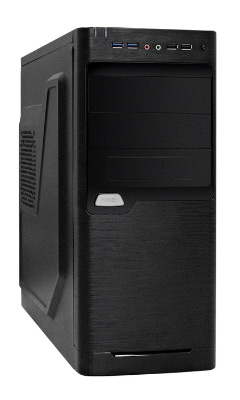

Model	XP-329S	XP-330U	XP-332	XP-332UC	XP-333U	XP-334UC	XP-340U
Cases Features
Case Type	MidiTower	MidiTower	MidiTower	MidiTower	MidiTower	MidiTower	MidiTower
Motherboard Support	ATX	ATX	ATX	ATX	ATX	ATX	ATX
Chassis Material	Steel	Steel	Steel	Steel	Steel	Steel	Steel
Material Thickness, mm	0,5	0,5	0,52	0,5	0,5	0,5	0,48
Material of front and side panels	-	-	-	-	-	-	Plastic / Steel
Screwless Access	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Number of screws for mounting the side panel, pcs	4	4	4	4	4	4	4
Hinge For The Lock	Yes	Yes	-	-	-	-	Yes
Case Color	Black	Black	Black	Black	Black	Black	Black
Chassis Color	Black	Black	Black	Black	Black	Black	Black
Power
PSU Type	ATX	ATX	ATX	ATX	ATX	ATX	ATX
Power supply location	At the top of the rear side	At the top of the rear side	At the top of the rear side	At the top of the rear side	At the top of the rear side	At the top of the rear side	At the top of the rear side
PSU models*	XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500	XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500	XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500	XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500	XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500	XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500	XP350, XP400, XP450, XP500, XP550, XP600, UNS350, UNS400, UNS450, UNS500
Recommended ExeGate PSU	Series XP, Special UNS	Series XP, Special UNS	Series XP, Special UNS	Series XP, Special UNS	Series XP, Special UNS	Series XP, Special UNS	Series XP, Special UNS
Construction
External 5,25" Drive Bay	2	2	1	1	1	1	-
External 3,5" Drive Bay	1	1 (instead 1 internal 5.25")	-	-	-	-	-
Internal Drive Bay 5,25"	1	2	-	-	-	-	3
Internal 3,5" Drive Bay	2	5	2	2	2	2	2
Internal 2,5" Drive Bay	3	1	3 (1 instead 1 internal 3.5")	3 (1 instead 1 internal 3.5")	3 (1 instead 1 internal 3.5")	2	3
Expansion Slots	6	6	7	7	7	7	6
Cooling System
Places for installation on the front panel	12 cm x 1	-	12 cm x 2	12 cm x 2	12 cm x 2	-	-
Places for installation on the rear panel	8 cm x 1 or 9,2 cm x 1	8 cm x 1 or 9,2 cm x 1	12 cm x 1	12 cm x 1	12 cm x 1	12 cm x 1	1 x 8 or 1 x 9,2 cm
Places to install on the side panel	8 cm x 2 or 12 cm x 2	8 cm x 1 or 12 cm x 1	12 cm x 1	12 cm x 1	12 cm x 1	12 cm x 1	2 x 8 or 2 x 12 cm
Recommended ExeGate fans	-	-	-	-	-	-	8 cm, 9 cm, 12 cm
Interfaces
Interface location	At the top of the front panel	At the top of the front panel	At the top of the front panel	At the top of the front panel	At the top of the front panel	At the top of the front panel	At the middle of the front panel
USB 2.0 Type-A	2	2	2	-	1	1	1
USB 3.2 Gen1 Type-A	-	2	-	2	2	1	2
USB 3.2 Gen1 Type-C	-	-	-	1	-	1	-
Audio I/O Ports	2 x 3.5mm	2 x 3.5mm	2 x 3.5mm	2 x 3.5mm	2 x 3.5mm	2 x 3.5mm	2 x 3.5mm
Other parameters
Max. motherboard length, mm	244	244	244	244	244	244	244
Max. height of the CPU fan, mm	140	135	155	155	155	140	140
Max. PSU length, mm	210	150	210	210	210	210	160
Max. PSU length with drive opposite, mm	200	150	180	180	180	150	-
Max. SVGA length, mm	210	240	320	320	300	330	240
Max. SVGA length with drive opposite, mm	-	240	250	250	250	-	180
Chassis dimensions
Width, mm	175	175	180	180	180	180	175
Height, mm	410	410	410	410	410	410	408
Depth, mm	350	380	340	340	340	340	350
Case Dimensions
Width, mm	185	185	195	195	195	195	183
Height, mm	410	415	415	415	415	413	412
Depth, mm	410	435	385	385	385	390	405
Carton Dimensions
Width, mm	210	210	225	225	225	230	210
Height, mm	450	440	425	425	430	425	455
Depth, mm	450	460	460	460	460	460	440
Gross Weight , kg	2,5	3,27	3,5	3,5	3,5	3,5	3
PSU models, PN/EAN
w/o PSU	EX278402 4895205108134	EX272731 4895205106086	EX283070 4895205115880	EX287371 4895205125254	EX283075 4895205115941	EX287365 4895205125193	EX292986 4895205132894
350W/UNS	EX299345 4895205186835	EX299349 4895205186873	EX299353 4895205186910	EX299357 4895205186958	EX299361 4895205186996	EX299365 4895205187030	EX299369 4895205187078
350W/XP	EX278395 4895205108189	EX272726 4895205106031	EX283069 4895205115835	EX287372 4895205125261	EX283076 4895205115897	EX287366 4895205125209	EX292987 4895205137295
400W/UNS	EX299346 4895205186842	EX299350 4895205186880	EX299354 4895205186927	EX299358 4895205186965	EX299362 4895205187009	EX299366 4895205187047	EX299370 4895205187085
400W/XP	EX278396 4895205108172	EX272727 4895205106048	EX283071 4895205115842	EX287373 4895205125278	EX283077 4895205115903	EX287367 4895205125216	EX292988 4895205137301
450W/UNS	EX299347 4895205186859	EX299351 4895205186897	EX299355 4895205186934	EX299359 4895205186972	EX299363 4895205187016	EX299367 4895205187054	EX299371 4895205187092
450W/XP	EX278398 4895205108165	EX272728 4895205106055	EX283072 4895205115859	EX287374 4895205125285	EX283078 4895205115910	EX287368 4895205125223	EX292989 4895205132900
500W/UNS	EX299348 4895205186866	EX299352 4895205186903	EX299356 4895205186941	EX299360 4895205186989	EX299364 4895205187023	EX299368 4895205187061	EX299372 4895205187108
500W/XP	EX278399 4895205108158	EX272729 4895205106062	EX283073 4895205115866	EX287375 4895205125292	EX283079 4895205115927	EX287369 4895205125230	EX292990 4895205132917
550W/XP							EX292991 4895205137318
600W/XP	EX278400 4895205108141	EX272730 4895205106079	EX283074 4895205115873	EX287376 4895205125308	EX283080 4895205115934	EX287370 4895205125247	EX292992 4895205137325
* At a customer's request Computer Cases can be completed with any PSU
