Products / Uninterruptible Power Supply / Inverters / General Purpose

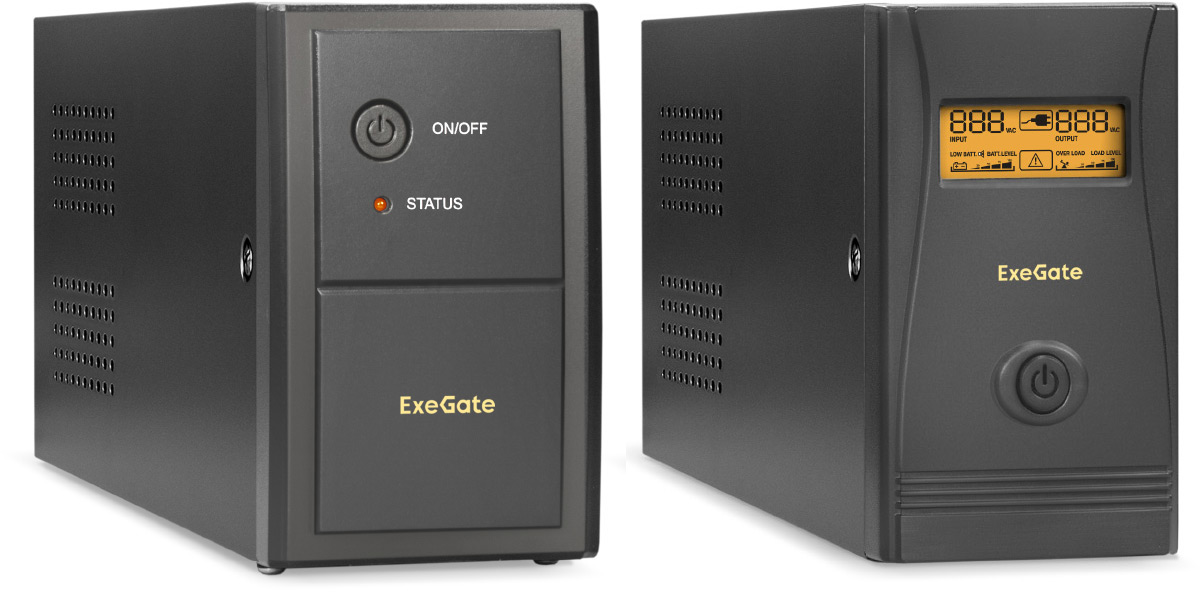

Series Power NB / Power Back BNB / Smart LB / Power Smart ULB

Power Back BNB and Power Smart ULB battery backup offers sufficient level of electric supplyment safety for most common appliances, like local IT and network devices, personal computers, peripherals, medical and healthcare equipment, and other electronics in your home or business. Guaranteed power and surge protection provides battery backup during blackouts, outages and unsafe voltage fluctuations, RF and EMC interference, as well as protects from damaging surges, spikes, and unsatisfactory mains voltage condition. Power Smart ULB has wide ability of operational control and management, taking advantage of multifunction LCD display for visualization, rather than Power Back BNB has a simplified operation control and LED indication.
Features Power Back BNB and Power Smart ULB are based on line-interactive topology, and are available by 2 variants - with Euro type connections, and with IEC320C13 connections. (except Power Back BNB-500.LED.4C13 and Power Back BNB-500.LED.2SH)
Input
Nominal input voltage 230V
Input voltage range for mains operation 140V-300V or 145V-290V (depending on model)
Input frequency 50/60±5 Hz
Output
Nominal output voltage 230±10% V
Output frequency 50/60±1 Hz
Waveform type Stepped approximation to a sine wave
Protection
Surge Protection and Filtering Full time multi-pole noise filtering, peaks and spikes suppression
AVR Yes
Transfer time 4-8 ms typical, 13 ms maximum
Battery type Sealed lead-acid battery, maintenance-free
Typical recharge time 4-6 hours to 90% charge level
Input connection Undetachable earthed Euro type plug
Environmental
Operating Temperature 0-40°C
Operating Relative Humidity 0-90%
Audible noise at 1 meter from surface of unit 40dBa
Cabinet color Black


Model Full power capacity Active power capacity Indicator type Output connections Port RJ45/11 Port USB Run time, for load Battery Product size, mm Net weight, kg P/N
 50% 70% 100%
Power NB-400.LED.AVR.4C13 400 240 LED 4xC13 - - 11 6 2 ExeGate HR 12-4.5 (12V/4.5Ah) 295x95x145 3,60 EX299621
Power NB-400.LED.AVR.4C13.USB 4xC13 - + EX299622
Power NB-400.LED.AVR.2SH 2xSchuko - - EX299468
Power NB-400.LED.AVR.2SH.USB 2xSchuko - + EX299625
Power Back BNB-400.LED.AVR.4C13 400 240 LED 4xC13 - - 1162 ExeGate HR 12-4.5 (12V/4,5Ah) 255x86x140 4,20 EP285520
Power Back BNB-400.LED.AVR.2SH 2xSchuko - - EP244541
Power NB-450.LED.AVR.4C13 450 270 LED 4xC13 - - 11 6 2 ExeGate HR 12-4.5 (12V/4.5Ah) 295x95x145 3,60 EX299628
Power NB-450.LED.AVR.4C13.USB 4xC13 - + EX299629
Power NB-450.LED.AVR.2SH 2xSchuko - - EX299473
Power NB-450.LED.AVR.2SH.USB 2xSchuko - + EX299632
Power Back BNB-450.LED.AVR.4C13 450 240 LED 4xC13 - - 1051,8 ExeGate HR 12-4.5 (12V/4,5Ah) 255x86x140 4,20 EP285546
Power Back BNB-450.LED.AVR.2SH 2xSchuko - - EP279215
Power NB-500.LED.AVR.4C13 500 300 LED 4xC13 - - 11 6 2 ExeGate HR 12-4.5 (12V/4.5Ah) 295x95x145 3,60 EX299478
Power NB-500.LED.AVR.4C13.USB 4xC13 - + EX299479
Power NB-500.LED.AVR.2SH 2xSchuko - - EX299480
Power NB-500.LED.AVR.2SH.USB 2xSchuko - + EX299481
Power Back BNB-500.LED.4C13 500 300 LED 4xC13 - - 941,4 ExeGate HR 12-4.5 (12V/4,5Ah) 255x86x140 3,40 EX294607
Power Back BNB-500.LED.2SH 2xSchuko - - EX294611
Power NB-600.LED.AVR.4C13 600 360 LED 4xC13 - - 2,2 ExeGate HR 12-7.2 (12V/7.2Ah) 295x95x145 4,30 EX299749
Power NB-600.LED.AVR.4C13.USB 4xC13 - + EX299750
Power NB-600.LED.AVR.2SH 2xSchuko - - EX299753
Power NB-600.LED.AVR.2SH.USB 2xSchuko - + EX299754
Power Back BNB-600.LED.AVR.2SH 600 360 LED 2xSchuko - - 8,62,51,3 ExeGate HR 12-7.2 (12V/7,2Ah) 280x95x140 4,10 EP244543
Power Back BNB-600.LED.AVR.4C13 4xC13 - - EP285538
Power NB-650.LED.AVR.4C13 650 390 LED 4xC13 - - 2,2   ExeGate HR 12-7.2 (12V/7.2Ah) 295x95x145 4,30 EX299482
Power NB-650.LED.AVR.4C13.USB 4xC13 - + EX299483
Power NB-650.LED.AVR.2SH 2xSchuko - - EX299484
Power NB-650.LED.AVR.2SH.USB 2xSchuko - + EX299485
Power Back BNB-650.LED.AVR.4C13 650 360 LED 4xC13 - - 8,32,51,1 ExeGate HR 12-7.2 (12V/7,2Ah) 280x95x140 4,20 EP285542
Power Back BNB-650.LED.AVR.2SH.RJ.USB 2xSchuko + + EP285555
Power Back BNB-650.LED.AVR.2SH 2xSchuko - - EP276528
Power NB-800.LED.AVR.4C13 800 480 LED 4xC13 - - 1,6 ExeGate HR 12-9 (12V/9Ah) 295x95x145 4,50 EX299757
Power NB-800.LED.AVR.4C13.USB 4xC13 - + EX299758
Power NB-800.LED.AVR.2SH 2xSchuko - - EX299761
Power NB-800.LED.AVR.2SH.USB 2xSchuko - + EX299762
Power Back BNB-800.LED.AVR.2SH 800 480 LED 2xSchuko - - 9,13,10,9 ExeGate HR 12-9 (12V/9Ah) 280x95x140 4,60 EP212516
Power Back BNB-800.LED.AVR.4C13 4xC13 - - EX292773
Power NB-850.LED.AVR.4C13 850 510 LED 4xC13 - - 1,6   ExeGate HR 12-9 (12V/9Ah) 295x95x145 4,50 EX299486
Power NB-850.LED.AVR.4C13.USB 4xC13 - + EX299487
Power NB-850.LED.AVR.2SH 2xSchuko - - EX299488
Power NB-850.LED.AVR.2SH.USB 2xSchuko - + EX299489
Power Back BNB-850.LED.AVR.4C13.RJ.USB 850 480 LED 4xC13 + + 8,92,90,9 ExeGate HR 12-9 (12V/9Ah) 280x95x140 4,65 EP285472
Power Back BNB-850.LED.AVR.4C13.RJ 4xC13 + - EP285473
Power Back BNB-850.LED.AVR.2SH.RJ.USB 2xSchuko + + EP285474
Power Back BNB-850.LED.AVR.2SH 2xSchuko - - EP285475
Power NB-1000.LED.AVR.4C13 1000 650 LED 4xC13 - - 1,6   ExeGate HR 12-9 (12V/9Ah) 295x95x145 4,70 EX299490
Power NB-1000.LED.AVR.4C13.USB 4xC13 - + EX299491
Power NB-1000.LED.AVR.2SH 2xSchuko - - EX299492
Power NB-1000.LED.AVR.2SH.USB 2xSchuko - + EX299493
Power Back BNB-1000.LED.AVR.2SH 1000 550 LED 2xSchuko - - 8,92,90,9 ExeGate HR 12-9 (12V/9Ah) 280x95x140 4,65 EX292785
Power Back BNB-1000.LED.AVR.2SH.RJ.USB 2xSchuko + + EX292786
Power Back BNB-1000.LED.AVR.4C13 4xC13 - - EX292783
Power Back BNB-1000.LED.AVR.4C13.RJ.USB 4xC13 + + EX292784
Smart LB-400.LCD.AVR.4C13 400 240 LCD 4xC13 - - 11 6 2 ExeGate HR 12-4.5 (12V/4.5Ah) 295x95x145 3,60 EX299623
Smart LB-400.LCD.AVR.4C13.USB 4xC13 - + EX299624
Smart LB-400.LCD.AVR.2SH 2xSchuko - - EX299626
Smart LB-400.LCD.AVR.2SH.USB 2xSchuko - + EX299627
Smart LB-450.LCD.AVR.4C13 450 270 LCD 4xC13 - - 11 6 2 ExeGate HR 12-4.5 (12V/4.5Ah) 295x95x145 3,60 EX299630
Smart LB-450.LCD.AVR.4C13.USB 4xC13 - + EX299631
Smart LB-450.LCD.AVR.2SH 2xSchuko - - EX299633
Smart LB-450.LCD.AVR.2SH.USB 2xSchuko - + EX299634
Smart LB-500.LCD.AVR.4C13 500 300 LCD 4xC13 - - 11 6 2 ExeGate HR 12-4.5 (12V/4.5Ah) 295x95x145 3,60 EX299636
Smart LB-500.LCD.AVR.4C13.USB 4xC13 - + EX299637
Smart LB-500.LCD.AVR.2SH 2xSchuko - - EX299494
Smart LB-500.LCD.AVR.2SH.USB 2xSchuko - + EX299495
Power Smart ULB-500.LCD.AVR.2SH 500 300 LCD 2xSchuko - - 941,4 ExeGate HR 12-4.5 (12V/4,5Ah) 255x86x140 3,93 EX294613
Smart LB-600.LCD.AVR.4C13 600 360 LCD 4xC13 - - 2,2 ExeGate HR 12-7.2 (12V/7,2Ah) 295x95x145 4,30 EX299751
Smart LB-600.LCD.AVR.4C13.USB 4xC13 - + EX299752
Smart LB-600.LCD.AVR.2SH 2xSchuko - - EX299755
Smart LB-600.LCD.AVR.2SH.USB 2xSchuko - + EX299756
Power Smart ULB-600.LCD.AVR.2SH.RJ.USB 600 360 LCD 2xSchuko + + 8,62,51,3 ExeGate HR 12-7.2 (12V/7,2Ah) 280x95x140 4,15 EP212515
Smart LB-650.LCD.AVR.4C13 650 390 LCD 4xC13 - - 2,2   ExeGate HR 12-7.2 (12V/7.2Ah) 295x95x145 4,30 EX299496
Smart LB-650.LCD.AVR.4C13.USB 4xC13 - + EX299497
Smart LB-650.LCD.AVR.2SH 2xSchuko - - EX299498
Smart LB-650.LCD.AVR.2SH.USB 2xSchuko - + EX299499
Power Smart ULB-650.LCD.AVR.2SH 650 360 LCD 2xSchuko - - 8,32,51,1 ExeGate HR 12-7.2 (12V/7,2Ah) 280x95x140 4,20 EP285568
Power Smart ULB-650.LCD.AVR.1SH.2C13 1xSchuko + 2xC13 - - 255x86x140 EX292769
Power Smart ULB-650.LCD.AVR.4C13 4xC13 - - 280x95x140 EX292771
Smart LB-800.LCD.AVR.4C13 800 480 LCD 4xC13 - - 1,6 ExeGate HR 12-9 (12V/9Ah) 295x95x145 4,50 EX299759
Smart LB-800.LCD.AVR.4C13.USB 4xC13 - + EX299760
Smart LB-800.LCD.AVR.2SH 2xSchuko - - EX299763
Smart LB-800.LCD.AVR.2SH.USB 2xSchuko - + EX299764
Power Smart ULB-800.LCD.AVR.2SH.RJ.USB 800 480 LCD 2xSchuko + + 9,13,10,9 ExeGate HR 12-9 (12V/9Ah) 280x95x140 4,70 EP212517
Power Smart ULB-800.LCD.AVR.2SH 2xSchuko - - EX292776
Power Smart ULB-800.LCD.AVR.4C13 4xC13 - - EX292775
Smart LB-850.LCD.AVR.4C13 850 510 LCD 4xC13 - - 1,6   ExeGate HR 12-9 (12V/9Ah) 295x95x145 4,50 EX299500
Smart LB-850.LCD.AVR.4C13.USB 4xC13 - + EX299501
Smart LB-850.LCD.AVR.2SH 2xSchuko - - EX299502
Smart LB-850.LCD.AVR.2SH.USB 2xSchuko - + EX299503
Power Smart ULB-850.LCD.AVR.4C13.RJ.USB 850 480 LCD 4xC13 + + 8,92,90,9 ExeGate HR 12-9 (12V/9Ah) 280x95x140 4,75 EP285476
Power Smart ULB-850.LCD.AVR.2SH.RJ.USB 2xSchuko + + EP285478
Power Smart ULB-850.LCD.AVR.2SH 2xSchuko - - EP285479
Smart LB-1000.LCD.AVR.4C13 1000 650 LCD 4xC13 - - 1,6   ExeGate HR 12-9 (12V/9Ah) 295x95x145 4,70 EX299504
Smart LB-1000.LCD.AVR.4C13.USB 4xC13 - + EX299505
Smart LB-1000.LCD.AVR.2SH 2xSchuko - - EX299506
Smart LB-1000.LCD.AVR.2SH.USB 2xSchuko - + EX299507
Power Smart ULB-1000.LCD.AVR.2SH 1000 550 LCD 2xSchuko - - 8,92,90,9 ExeGate HR 12-9 (12V/9Ah) 280x95x140 4,75 EX292791
Power Smart ULB-1000.LCD.AVR.2SH.RJ.USB 2xSchuko + + EX292792
Power Smart ULB-1000.LCD.AVR.4C13 4xC13 - - 345x123x189 EX292789
Power Smart ULB-1000.LCD.AVR.4C13.RJ.USB 4xC13 + + 280x95x140 EX292790
