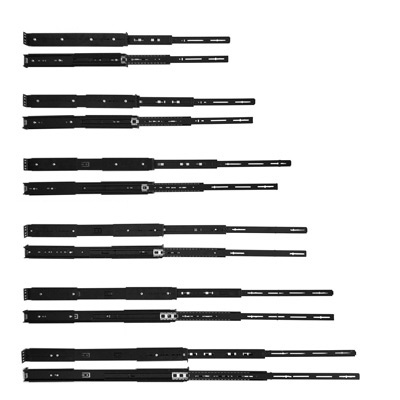

Sliding Rails
Specification
| Applications | Sliding Rails for 19" Rackmount Server Cases and other devices |
| Model | Expandable core length | Mounting clearance | P/N | EAN | ||||
| Inch | when folded, mm | extended state, mm | Min, mm | Max, mm | ||||
 |
RK-400-16" | 16" | 400 | 800 | 400 | 550 | EX251180 | 4897040859721 |
 |
RK-450-18" | 18" | 450 | 900 | 450 | 600 | EX251179 | 4897040859738 |
 |
RK-500-20" | 20" | 500 | 1000 | 500 | 650 | EX174452 | 4897040859745 |
 |
RK-550-22" | 22" | 550 | 1100 | 550 | 700 | EX194264 | 4897040854009 |
 |
RK-600-24" | 24" | 600 | 1200 | 600 | 750 | EX261503 | 4897040855020 |
 |
RK-650-26" | 26" | 650 | 1300 | 650 | 800 | EX272618 | 4895205106277 |
 |
RK-700-28" | 28" | 700 | 1400 | 700 | 850 | EX296300 | 4895205163089 |
 |
RK-750-30" | 30" | 750 | 1500 | 750 | 900 | EX296301 | 4895205163096 |
 |
RU-550-22" | 22" | 550 | 1100 | 550 | 700 | EX296302 | 4895205163102 |
 |
RU-650-26" | 26" | 650 | 1300 | 650 | 800 | EX296303 | 4895205163119 |
Compatibility rails and rackmount chassiss ExeGate
| Model | RK-400-16" | RK-450-18" | RK-500-20" | RK-550-22" | RK-600-24" | RK-650-26" | RK-700-28" | RK-750-30" | RU-550-22" | RU-650-26" |
| 1U250-01 | - | Yes | Yes | - | Yes | Yes | Yes | Yes | - | Yes |
| 1U250-11 | - | Yes | Yes | - | Yes | Yes | Yes | Yes | - | Yes |
| 1U255-01 | - | - | - | - | - | - | - | - | - | - |
| 1U390-01 | - | Yes | Yes | - | Yes | Yes | Yes | Yes | - | Yes |
| 1U430-02 | - | - | - | - | Yes | Yes | Yes | Yes | - | - |
| 1U550-04 | - | - | - | Yes | - | Yes | Yes | Yes | Yes | Yes |
| 1U650-04 | - | - | - | - | - | Yes | Yes | Yes | - | Yes |
| 1U660-HS04 | - | - | - | Yes | Yes | Yes | Yes | Yes | With effort | - |
| 2U300-04 | - | - | - | - | - | - | - | - | - | - |
| 2U330-03 | Yes | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U350-01 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U350-03 | - | - | Yes | Yes | Yes | Yes | Yes | Yes | With effort | With effort |
| 2U350-33 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U390-04 | Yes | Yes | Yes | - | Yes | Yes | Yes | Yes | - | Yes |
| 2U400-02 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U400-04 | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | - |
| 2U400-04AL | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | - |
| 2U420-06 | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U450-03 | - | Yes | - | Yes | Yes | Yes | Yes | Yes | With effort | With effort |
| 2U450-06 | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U450-09 | Yes | Yes | Yes | Yes | - | - | - | Yes | Yes | - |
| 2U480-HS06 | - | - | Yes | Yes | Yes | Yes | - | - | Yes | Yes |
| 2U550-04 | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | - |
| 2U550-06/2U2088 | With effort | With effort | With effort | With effort | With effort | With effort | Yes | Yes | Yes | Yes |
| 2U550-08 | - | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U550-HS08 | - | - | Yes | - | Yes | Yes | Yes | Yes | - | With effort |
| 2U550-HS12 | - | - | Yes | Yes | Yes | Yes | - | - | Yes | Yes |
| 2U650-05 | - | - | - | - | Yes | Yes | Yes | Yes | - | Yes |
| 2U650-06/2U2098L | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U650-08 | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U650-HS09 | - | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U660-HS06 | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U660-HS08 | - | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 2U660-HS12 | - | - | - | - | - | Yes | Yes | Yes | - | Yes |
| 3U300-03 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 3U330-02 | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 3U390-08 | Yes | Yes | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes |
| 3U390-11 | - | Yes | Yes | Yes | - | - | - | Yes | - | Yes |
| 3U400-07 | Yes | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | - |
| 3U450-08 | Yes | Yes | Yes | - | Yes | Yes | Yes | Yes | - | Yes |
| 3U450-09 | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 3U450-12 | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 3U660-HS16 | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 4U300-08 | - | - | - | - | - | - | - | - | - | - |
| 4U350-02 | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 4U390-05 | Yes | - | - | - | - | - | - | Yes | - | - |
| 4U450-07/4U4017S | - | Yes | Yes | - | Yes | Yes | Yes | Yes | - | Yes |
| 4U450-16/4U4019S | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 4U450-17 | - | Yes | Yes | - | Yes | Yes | Yes | Yes | - | Yes |
| 4U450-26/4U4020S | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 4U480-06/4U4021S | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 4U480-15/4U4132 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 4U650-010/4U4139L | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 4U650-18 | - | - | - | - | - | Yes | Yes | Yes | - | Yes |
| 4U660-HS24 | - | - | - | - | - | Yes | Yes | Yes | - | Yes |
