Products
/
Computer cases
/
Minitower
/
Series MA
Series MA
Optional accessories
Accessories
Model
MA-371X
MA-401
MA-372UX

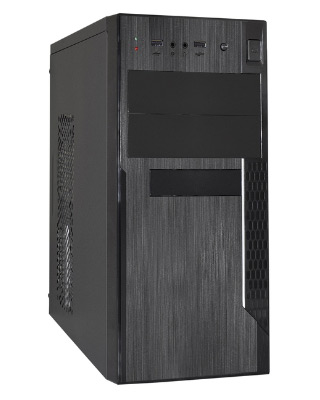

MA-373X
Cases Features
Case Type
MiniTower
MiniTower
MiniTower
MiniTower
Motherboard Support
mATX
mATX
mATX
mATX
Chassis Material
Steel
Steel
Steel
Steel
Material Thickness, mm
0,45
0,48
0,6
0,6
Material of front and side panels
Plastic / Steel
Plastic / Steel
-
-
Screwless Access
Yes
-
Yes
Yes
Number of screws for mounting the side panel, pcs
4
-
-
-
Hinge For The Lock
Yes
-
Yes
Yes
Case Color
Black
Black
Black
Black
Chassis Color
Silver
Black
Silver
Silver
Power
PSU Type
ATX
ATX
ATX
ATX
Power supply location
At the top of the rear side
At the top of the rear side
At the top of the rear side
At the top of the rear side
PSU models*
UN350, UN400, UN450, UN500, UN600, UNS350, UNS400, UNS450, UNS500
XP350, XP400, XP450, XP500, XP600, UNS350, UNS400, UNS450, UNS500
UN350, UN400, UN450, UN500, UN600, UNS350, UNS400, UNS450, UNS500
UN350, UN400, UN450, UN500, UN600, UNS350, UNS400, UNS450, UNS500
Recommended ExeGate PSU
Series UN, Special UNS
Series XP, Special UNS
Series UN, Special UNS
Series UN, Special UNS
Construction
External Drive Bay 5,25"
2
1
1
1
External Drive Bay 3,5"
-
-
1
1
Internal Drive Bay 5,25"
-
1
-
-
Internal Drive Bay 3,5"
3
1+2 universal (3,5"/2,5")
4
4
Internal Drive Bay 2,5"
1 (1 instead 1 internal 3.5")
1+2 universal (3,5"/2,5")
2
2
Expansion Slots
4
4
4
4
Cooling System
Places for installation on the rear panel
8 cm x 1 or 9,2 cm x 1
1 x 8 cm
9,2 cm x 3
9,2 cm x 3
Places to install on the side panel
8 cm x 1 or 12 cm x 1
1 x 12 cm
-
-
Recommended ExeGate fans
-
8 cm, 12 cm
-
-
Interfaces
Interface location
In the middle of the front panel
At the top of the front panel
At the top of the front panel
At the top of the front panel
USB 2.0 Type-A
2
2
2
2
USB 3.2 Gen1 Type-A
2
1
2
-
Audio I/O Ports
2 x 3.5mm
2 x 3.5mm
2 x 3.5mm
2 x 3.5mm
Other parameters
Max. motherboard length, mm
256
244
200
200
Max. height of the CPU fan, mm
130
150
140
140
Max. PSU length, mm
194
160
230
230
Max. PSU length with drive opposite, mm
140
140
210
210
Max. SVGA length, mm
300
340
220
220
Max. SVGA length with drive opposite, mm
195
340
190
190
Chassis dimensions
Width, mm
175
170
175
175
Height, mm
366
350
365
365
Depth, mm
330
340
380
380
Case Dimensions
Width, mm
185
190
175
175
Height, mm
370
353
370
370
Depth, mm
370
385
420
420
Carton Dimensions
Width, mm
215
210
210
210
Height, mm
415
415
415
415
Depth, mm
405
395
460
460
Gross Weight, kg
2,47
2,55
2,9
2,9
PSU models, PN/EAN
w/o PSU
EX277439
4895205106970
EX295154
4895205141162
EX283234
4895205116511
EX283240
4895205117181
350W/UN
EX277434
4895205106925
EX283235
4895205116566
EX283241
4895205117136
350W/UNS
EX299300
4895205188129
EX299313
4895205189201
EX299304
4895205189164
EX299309
4895205188167
350W/XP
EX295155
4895205141179
400W/UN
EX277435
4895205106932
EX283236
4895205116559
EX283242
4895205117143
400W/UNS
EX299301
4895205188136
EX299314
4895205189218
EX299305
4895205189171
EX299310
4895205188174
400W/XP
EX295156
4895205141186
450W/UN
EX277436
4895205106949
EX283237
4895205116542
EX283243
4895205117150
450W/UNS
EX299302
4895205188143
EX299315
4895205189225
EX299306
4895205189188
EX299311
4895205188181
450W/XP
EX295157
4895205141193
500W/UN
EX277437
4895205106956
EX283238
4895205116535
EX283244
4895205117167
500W/UNS
EX299303
4895205188150
EX299316
4895205189232
EX299307
4895205189195
EX299312
4895205188198
500W/XP
EX295158
4895205141209
600W/UN
EX277438
4895205106963
EX283239
4895205116528
EX283245
4895205117174
600W/XP
EX295159
4895205141216
* At a customer's request Computer Cases can be completed with any PSU
