Series BA
| Optional accessories | Accessories |

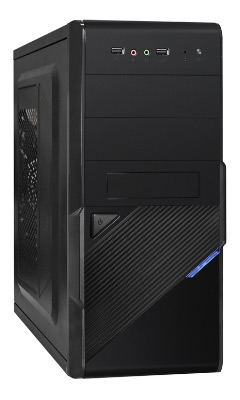

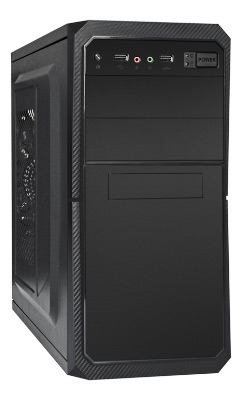

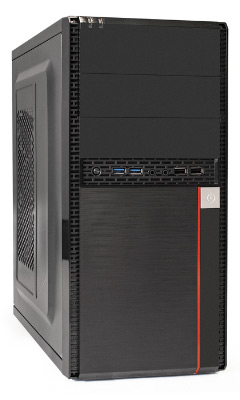

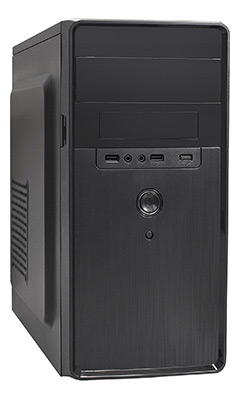

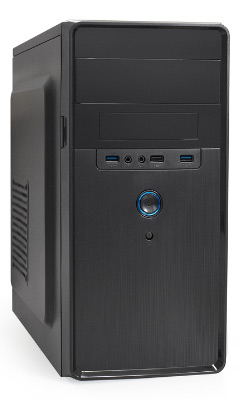

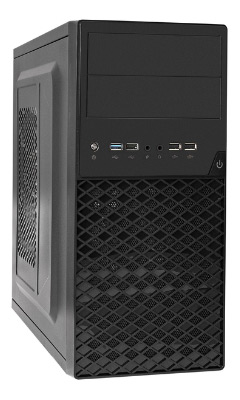

| Model |  BA-201 |  BA-202 |  BA-203U |  BA-204U |  BA-309 |  BA-309U2 |
| Cases Features | ||||||
| Case Type | MiniTower | MiniTower | MiniTower | MiniTower | MiniTower | MiniTower |
| Motherboard Support | mATX | mATX | mATX | mATX | mATX | mATX |
| Chassis Material | Steel | Steel | Steel | Steel | Steel | Steel |
| Material Thickness, mm | 0,45 | 0,45 | 0,45 | 0,45 | 0,5 | 0,5 |
| Material of front and side panels | Plastic / Steel | Plastic / Steel | Plastic / Steel | Plastic / Steel | Plastic / Steel | Plastic / Steel |
| Screwless Access | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of screws for mounting the side panel, pcs | 4 | 4 | 4 | 4 | 4 | 4 |
| Hinge For The Lock | Yes | Yes | Yes | Yes | - | - |
| Case Color | Black | Black | Black | Black | Black | Black |
| Chassis Color | Silver | Silver | Silver | Silver | Black | Black |
| Power | ||||||
| PSU Type | ATX | ATX | ATX | ATX | ATX | ATX |
| Power supply location | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side | At the top of the rear side |
| PSU models* | AA350, AA400, AA450, AA500 | AA350, AA400, AA450, AA500 | AA350, AA400, AA450, AA500 | AA350, AA400, AA450, AA500 | AA350, AA400, AA450, AA500 | AA350, AA400, AA450, AA500 |
| Recommended ExeGate PSU | Series AA | Series AA | Series AA | Series AA | Series AA | Series AA |
| Construction | ||||||
| External 5,25" Drive Bay | 1 | 1 | 2 | 2 | 1 | 1 |
| External 3,5" Drive Bay | 1 | 1 | - | - | 1 | 1 |
| Internal 3,5" Drive Bay | 2 | 2 | 2 | 3 | 3 | 3 |
| Internal 2,5" Drive Bay | 1 | 1 | 1 | 1 (1 instead 1 internal 3.5") | 3 | 3 |
| Expansion Slots | 4 | 4 | 4 | 4 | 4 | 4 |
| Cooling System | ||||||
| Places for installation on the front panel | - | - | - | - | 12 cm x 1 | 12 cm x 1 |
| Places for installation on the rear panel | 8 cm x 1 or 9,2 cm x 1 | 8 cm x 1 or 9,2 cm x 1 | 8 cm x 1 or 9,2 cm x 1 | 8 cm x 1 or 9,2 cm x 1 | 8 cm x 1 | 8 cm x 1 |
| Places to install on the side panel | 8 cm x 1 or 12 cm x 1 | 8 cm x 1 or 12 cm x 1 | 8 cm x 1 or 12 cm x 1 | 8 cm x 1 or 12 cm x 1 | 12 cm x 1 | 12 cm x 1 |
| Interfaces | ||||||
| Interface location | At the top of the front panel | At the top of the front panel | In the middle of the front panel | In the middle of the front panel | In the middle of the front panel | In the middle of the front panel |
| USB 2.0 Type-A | 2 | 2 | 3 | 2 | 2 | 1 |
| USB 3.2 Gen1 Type-A | - | - | 1 | 2 | - | 2 |
| Audio I/O Ports | 2 x 3.5mm | 2 x 3.5mm | 2 x 3.5mm | 2 x 3.5mm | HD Audio 2 x 3.5mm | HD Audio 2 x 3.5mm |
| Other parameters | ||||||
| Max. motherboard length, mm | 240 | 240 | 240 | 256 | 244 | 244 |
| Max. height of the CPU fan, mm | 130 | 130 | 130 | 130 | 135 | 135 |
| Max. PSU length, mm | 140 | 140 | 140 | 194 | 200 | 200 |
| Max. PSU length with drive opposite, mm | 140 | 140 | 140 | 140 | 180 | 180 |
| Max. SVGA length, mm | 200 | 200 | 200 | 300 | 320 | 320 |
| Max. SVGA length with drive opposite, mm | 200 | 200 | 200 | 195 | 310 | 310 |
| Chassis dimensions | ||||||
| Width, mm | 175 | 175 | 175 | 175 | 170 | 170 |
| Height, mm | 365 | 365 | 365 | 366 | 350 | 350 |
| Depth, mm | 325 | 325 | 325 | 330 | 340 | 340 |
| Case Dimensions | ||||||
| Width, mm | 185 | 185 | 185 | 185 | 190 | 190 |
| Height, mm | 370 | 370 | 370 | 370 | 355 | 355 |
| Depth, mm | 355 | 355 | 370 | 370 | 380 | 380 |
| Carton Dimensions | ||||||
| Width, mm | 215 | 215 | 215 | 215 | 205 | 215 |
| Height, mm | 410 | 410 | 410 | 415 | 420 | 400 |
| Depth, mm | 400 | 400 | 400 | 405 | 395 | 440 |
| Net Weight , kg | 2 | 2 | 2 | 2,47 | 2,05 | 2,15 |
| PSU models, PN/EAN | ||||||
| w/o PSU | EX284022 4895205117846 | EX284027 4895205117891 | EX284032 4895205117945 | EX284039 4895205117990 | EX286412 4895205124028 | EX286429 4895205124073 |
| 350W | EX284018 4895205117808 | EX284026 4895205117853 | EX284028 4895205117907 | EX284033 4895205117952 | EX286424 4895205124035 | EX286438 4895205124080 |
| 400W | EX284020 4895205117815 | EX284024 4895205117860 | EX284030 4895205117914 | EX284037 4895205117969 | EX286425 4895205124042 | EX286439 4895205124097 |
| 450W | EX284019 4895205117822 | EX284025 4895205117877 | EX284029 4895205117921 | EX284036 4895205117976 | EX286426 4895205124059 | EX286440 4895205124103 |
| 500W | EX284021 4895205117839 | EX284023 4895205117884 | EX284031 4895205117938 | EX284038 4895205117983 | EX286427 4895205124066 | EX286441 4895205124110 |
| * At a customer's request Computer Cases can be completed with any PSU | ||||||
