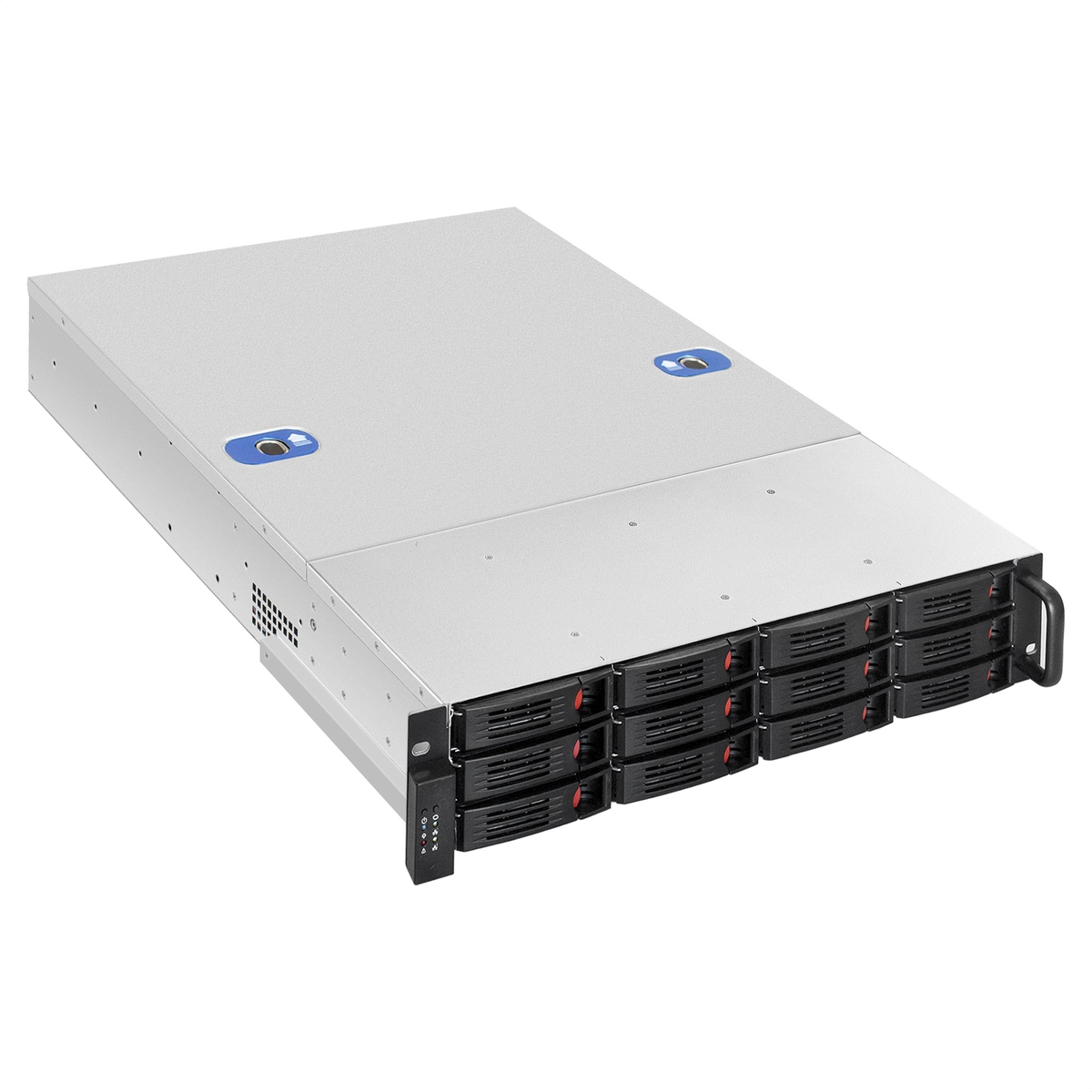

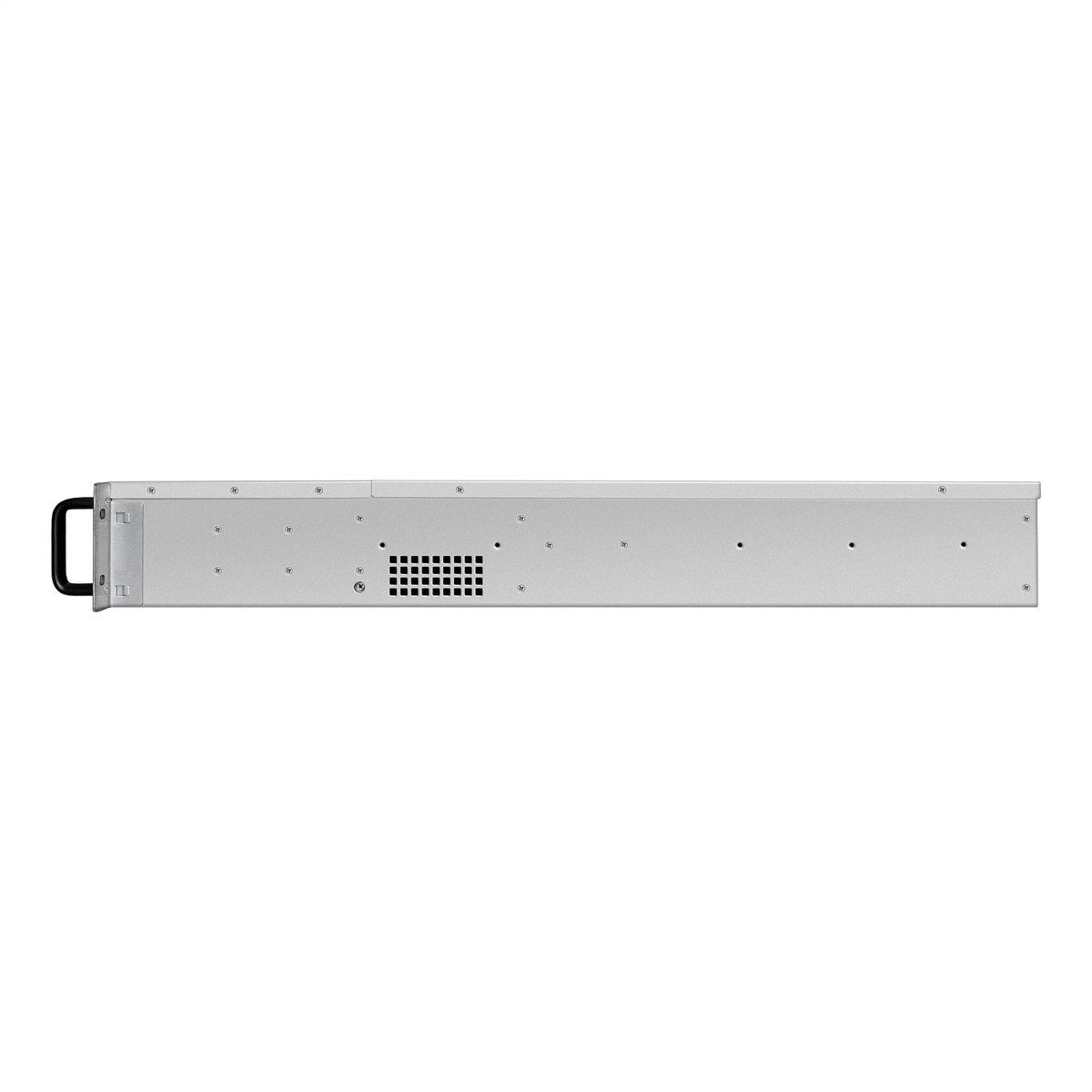

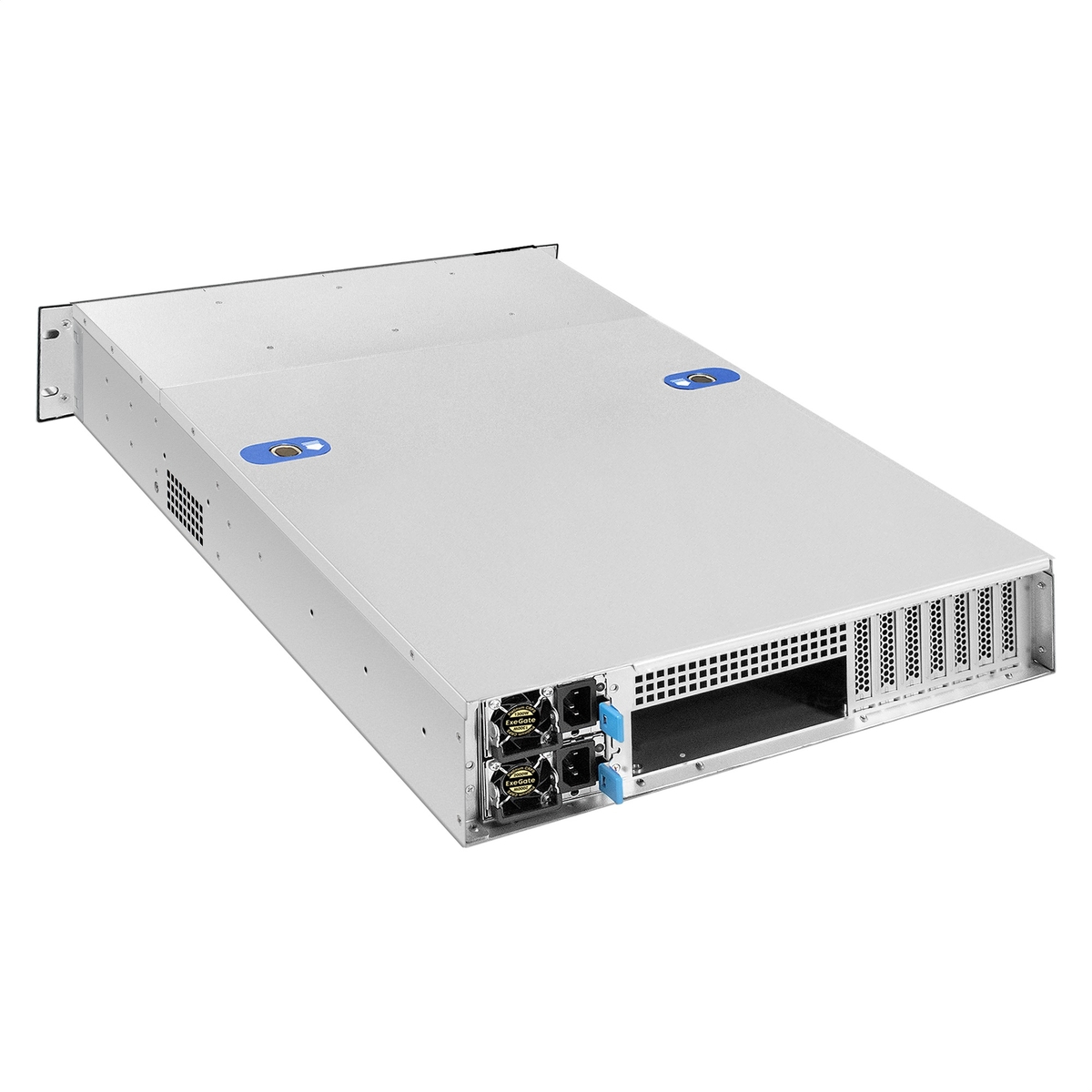

Server platform ExeGate Pro 2U660-HS12/Redundant 2x2000W
| Modification | P/N | EAN |
| EX294275 | 4895205139305 | |
| EX294276 | 4895205139312 | |
| EX294277 | 4895205139329 | |
| EX294278 | 4895205139336 | |
| 2U660-HS12/Redundant 2x1300W | EX304296 | |
| 2U660-HS12/Redundant 2x1600W | EX304297 | |
| 2U660-HS12/Redundant 2x2000W | EX304298 |
Specification
| Height | 2U |
| Supported MB formats | mini ITX, mini DTX, mATX, ATX, SSI CEB, E-ATX/SSI EEB |
| Chassis material | Steel |
| Material Thickness, mm | 1 |
| Cases color | Black |
| Chassis color | Silver |
| Power | |

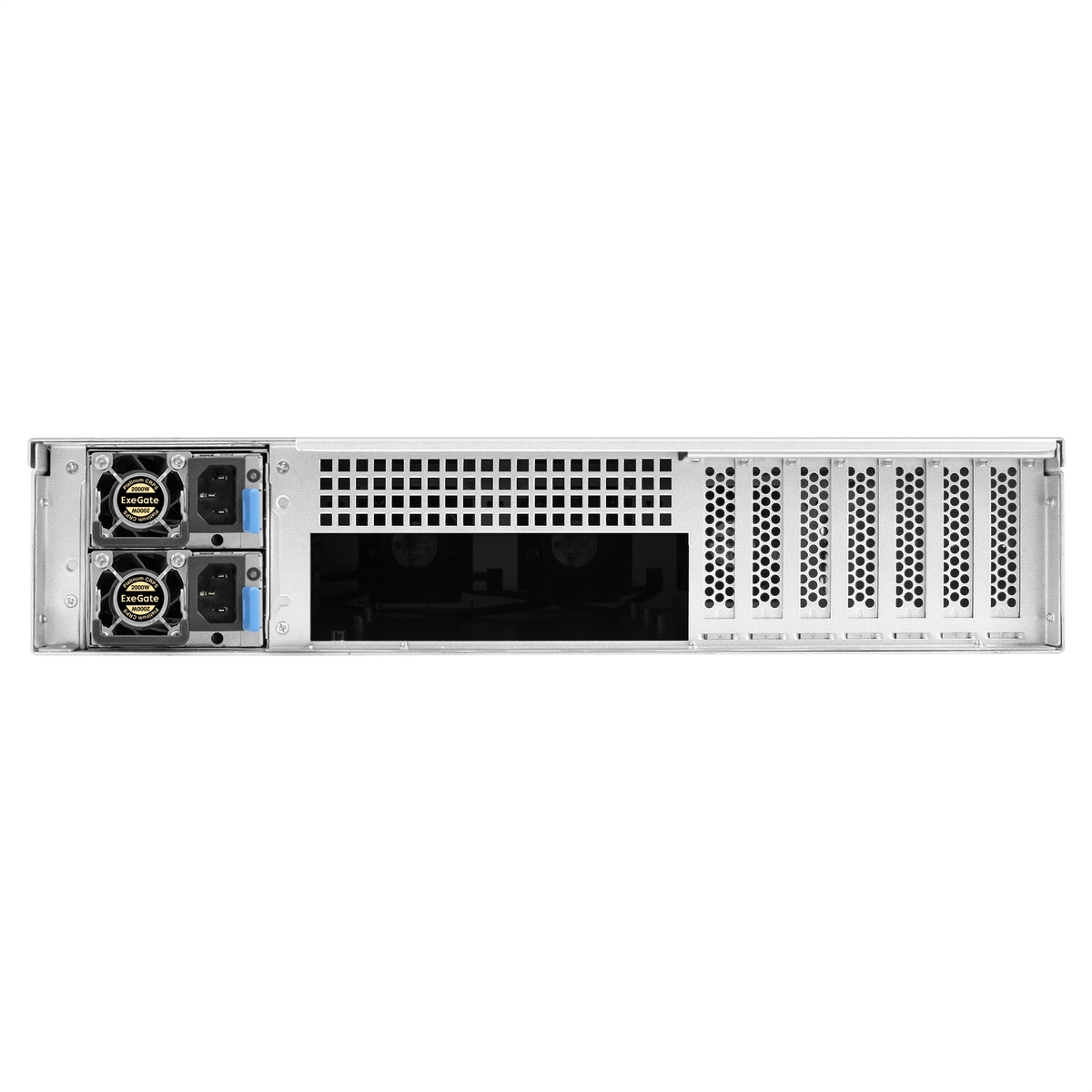

| PSU models | Redundant 2x2000W |
| PSU, W | 2000 |
| PSU type | 2U CRPS |
| Construction | |

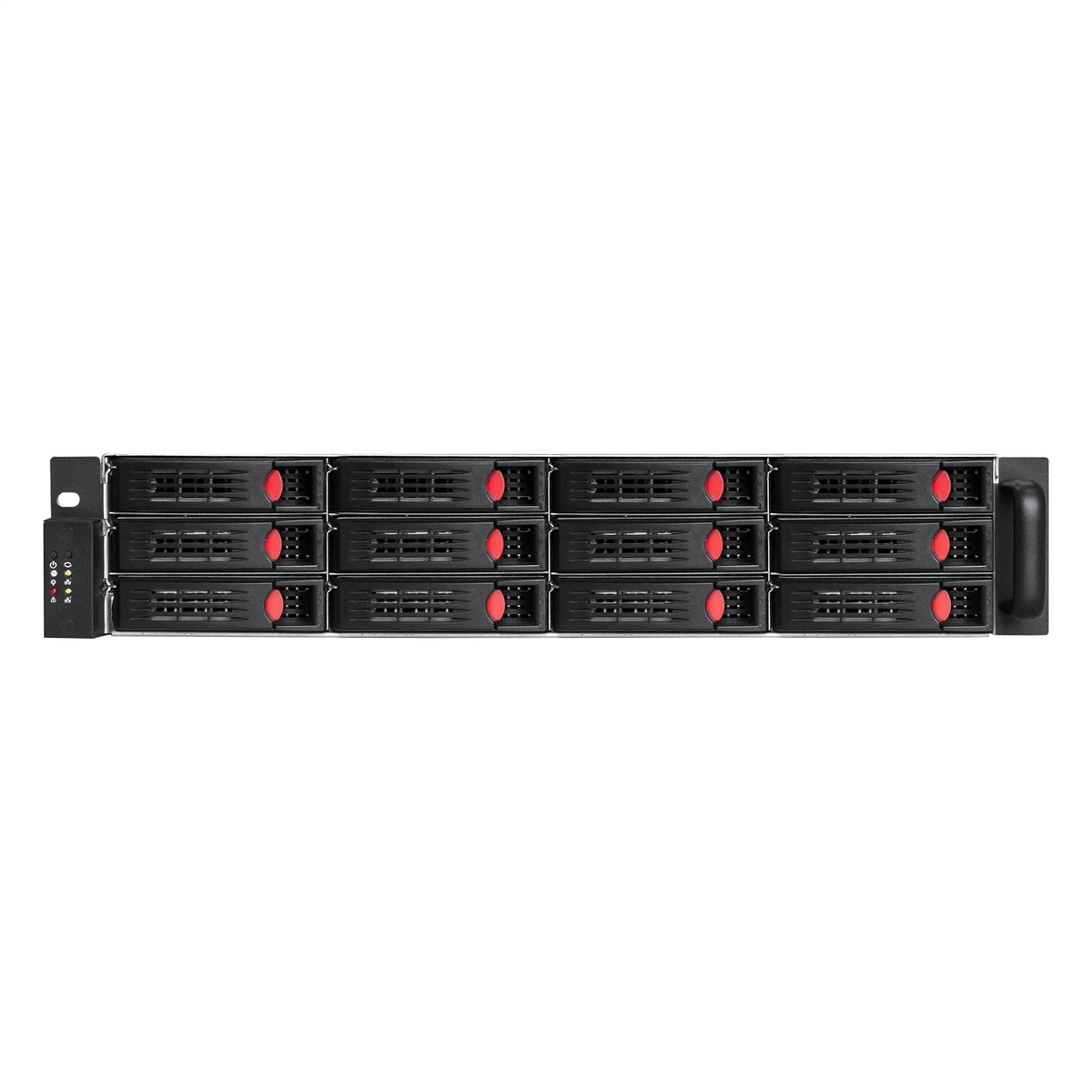

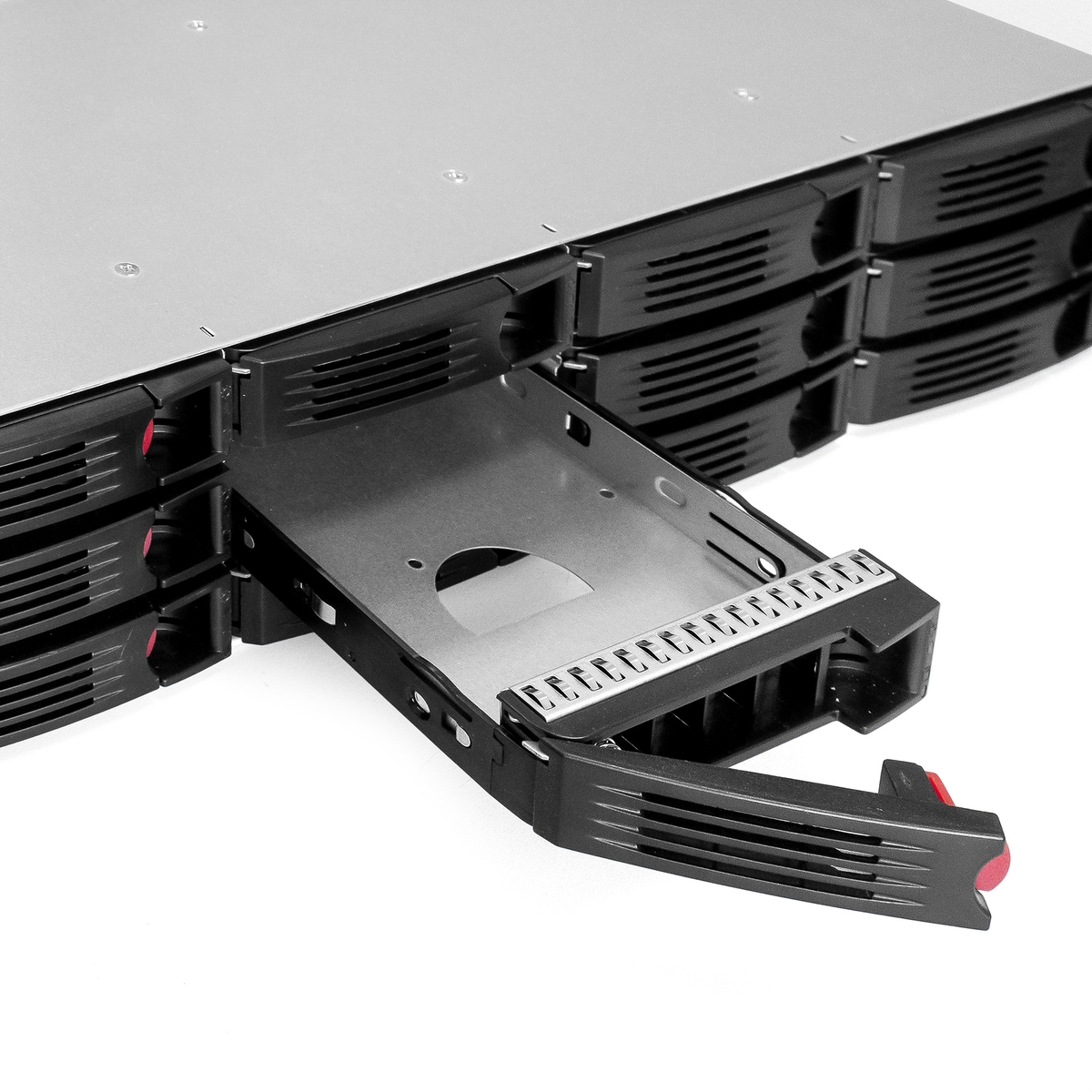

| HotSwap | 12 x 3,5"/2,5" Backplane power connectors – Molex Backplane interface connectors - SATA |
| Hot Swap baskets support formats | SAS 6Gbps and SATA I/II/III |
| Internal Drive Bay 2,5" | 1 |

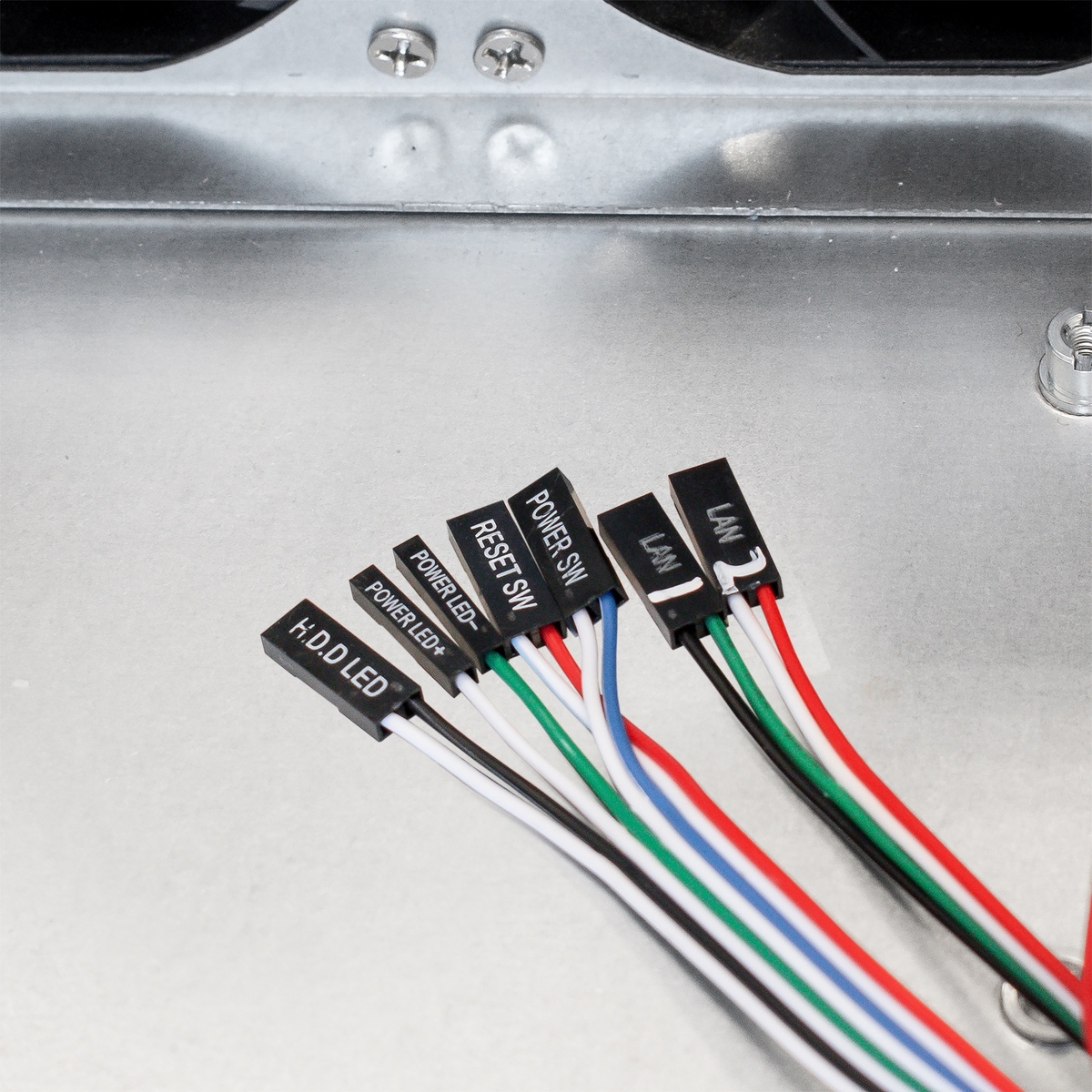

| Control & Indicator, LED | 1 x Power, 2 x NIC |
| Switch | POWER, RESET |
| Expansion Slots | 7 |
| Cooling System | |

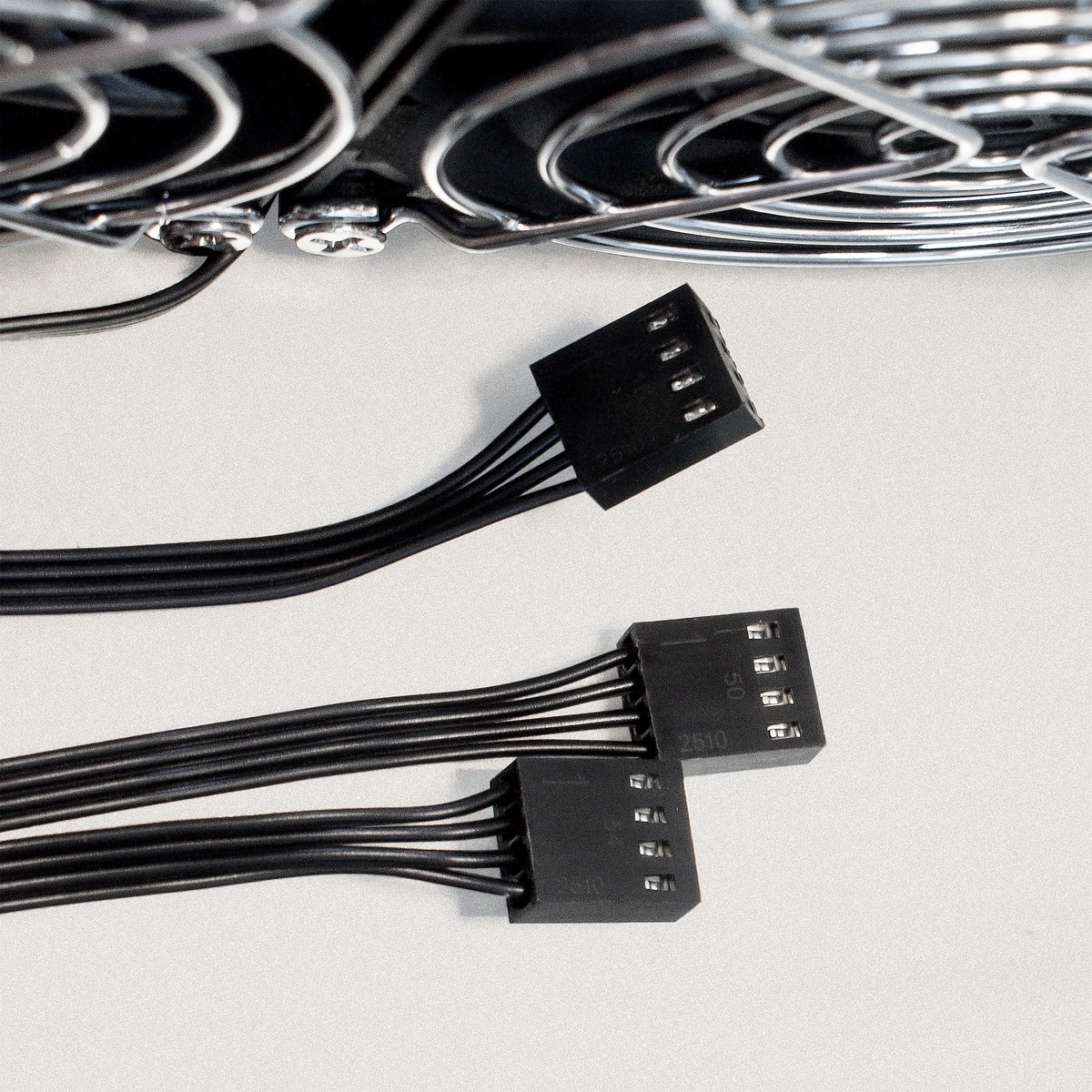

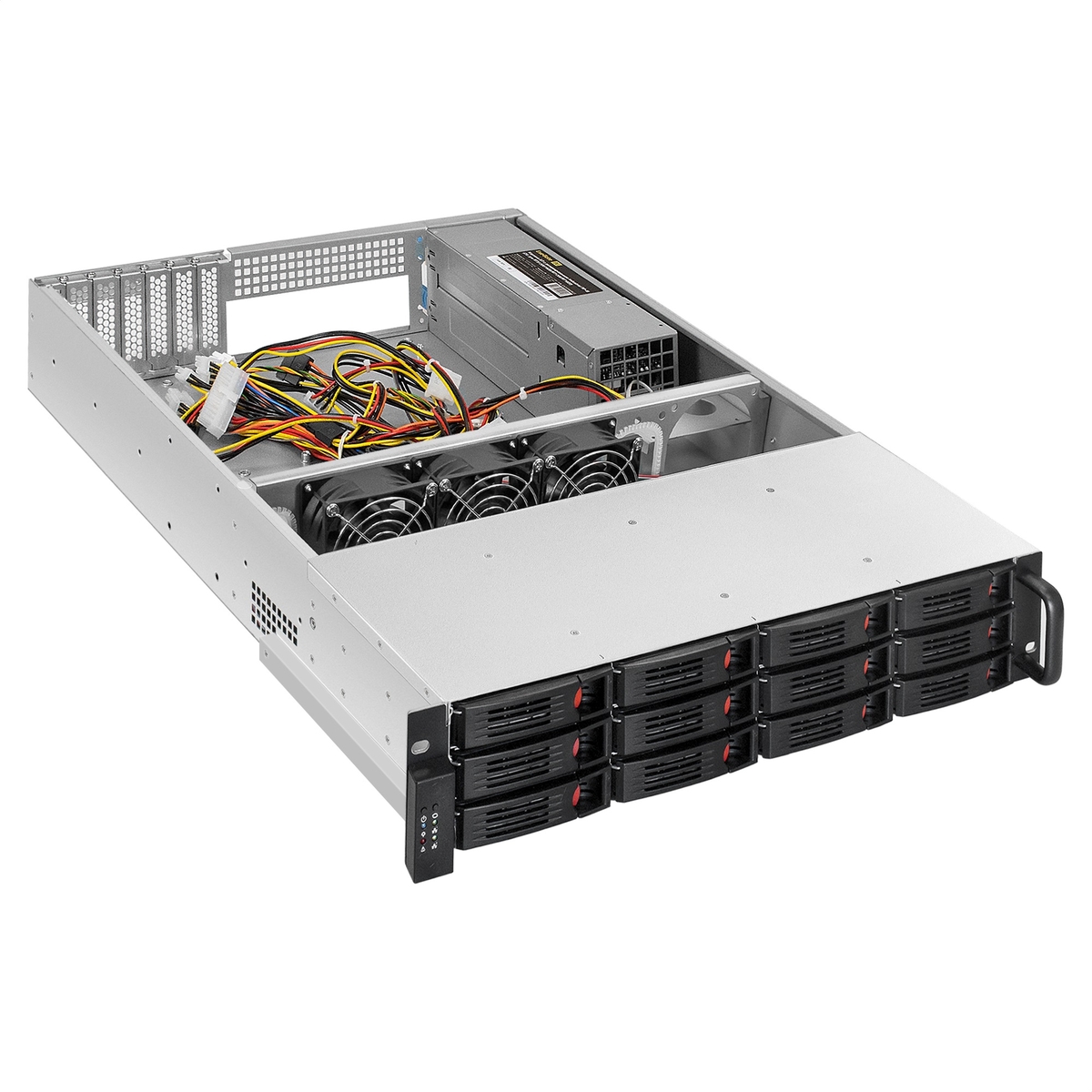

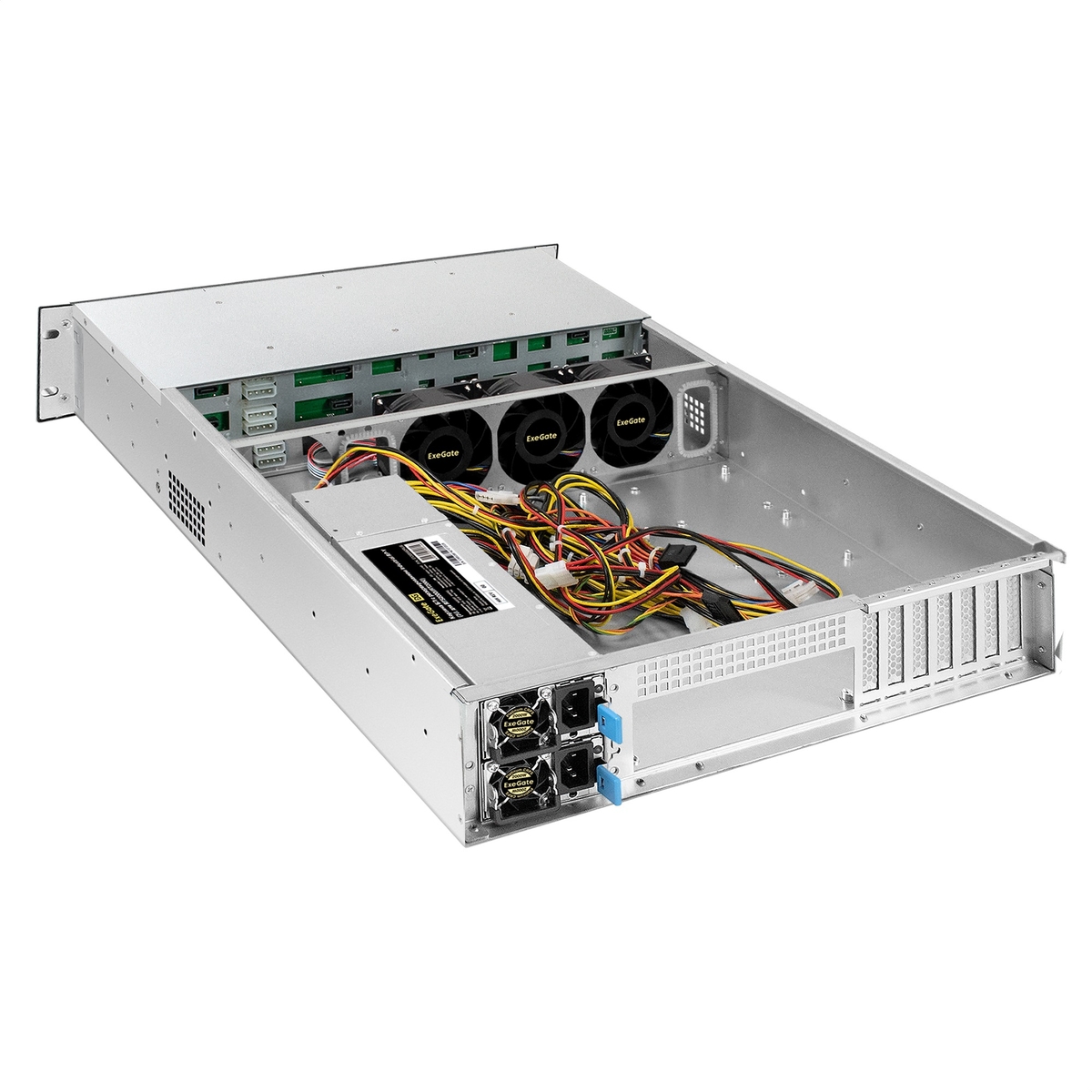

| Installed fans | 3 x 8 cm in the middle frame |
| Places to install additional fans | 1 x 8 cm in the middle frame |
| Recommended ExeGate fans | EP08025SM |
| Other parameters | |
| Maximum height of the CPU fan, mm | 65 |
| Maximum length of the video card, mm | 330 |
| Chassis size (W x H x D), mm | 430 x 86 x 645 |
| Size with handles and ears (W x H x D), mm | 482 x 88 x 700 |
| GW, kg | 20,63 |
| Dimensions (W x H x D), mm | 580 x 220 x 820 |
