Server platform ExeGate Pro 2U660-HS06/Redundant Chicony 2x550W
| Modification | P/N | EAN |
| EX294283 | 4895205139220 | |
| EX296236 | 4895205163126 | |
| EX294284 | 4895205139237 | |
| EX294285 | 4895205139244 | |
| EX294286 | 4895205139251 |
The platform is supplied assembled only

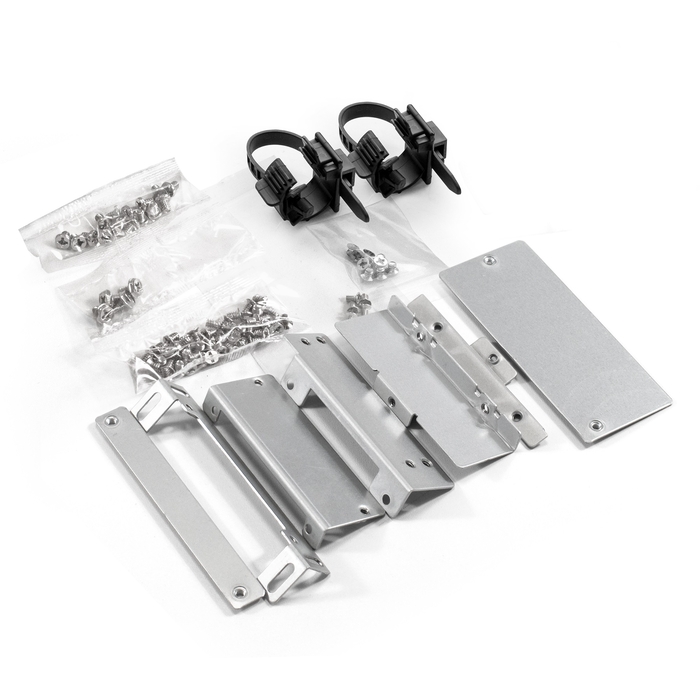

An installation kit is required to build the platform. The kit is not supplied separately.
SpecificationAn installation kit is required to build the platform. The kit is not supplied separately.
| Height | 2U |
| Supported MB formats | mini ITX, mini DTX, mATX, ATX, SSI CEB, E-ATX/SSI EEB |
| Power | |
| PSU models | Redundant Chicony 2x550W S15-550P1A |
| PSU, W | 550 |
| PSU type | Non-standard |
| Max. PSU number | 1 |
| Construction | |
| HotSwap | 6 x 3,5"/2,5" |
| Hot Swap baskets support formats | SATA I/II/III |
| Internal Drive Bay 3,5" | 2 |
| Front I/O Ports | 2 x USB 2.0 |
| Control & Indicator, LED | 1 x Power, 1 x HDD, 1 x NIC |
| Switch | POWER, RESET |
| Expansion Slots | 7 |
| Cooling System | |
| Installed fans | 3 x 8 cm in the middle frame |
| Places to install additional fans | 1 x 8 cm in the middle frame, 1 x 8 cm on the rear panel |
| Other parameters | |
| Chassis material | Steel |
| Material Thickness, mm | 1 |
| Cases color | Black |
| Chassis color | Silver |
| Size with handles and ears (D x W x H), mm | 660 x 430 x 89 |
| Recommended ExeGate fans | EP08025SM |
| Dimensions (D x W x H), mm | 820 x 590 x 210 |
