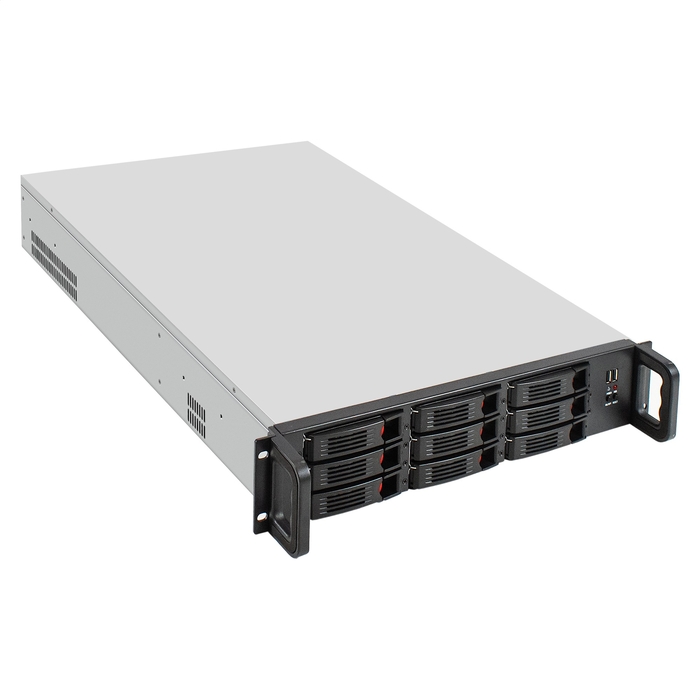

ExeGate Pro 2U650-HS09
| Modification | P/N | EAN |
| EX294279 | 4895205139183 | |
| EX296235 | 4895205162877 | |
| EX294280 | 4895205139190 | |
| EX294281 | 4895205139206 | |
| EX294282 | 4895205139213 |
The platform is supplied assembled only

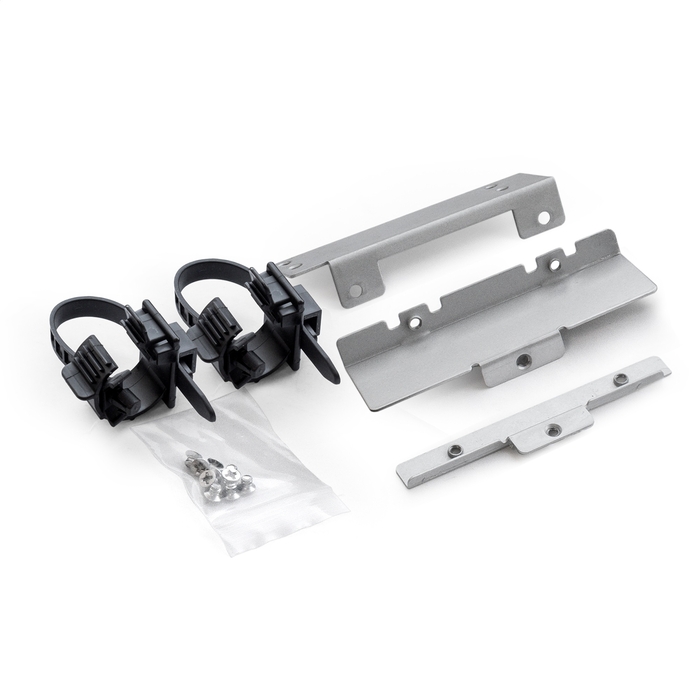

An installation kit is required to build the platform. The kit is not supplied separately.
SpecificationAn installation kit is required to build the platform. The kit is not supplied separately.
| Height | 2U |
| Supported MB formats | mini ITX, mini DTX, mATX, ATX |
| Power | |
| PSU models | Redundant 2x1200W |
| PSU, W | 1200 |
| PSU type | Non-standard |
| Construction | |
| HotSwap | 9 x 3,5"/2,5" |
| Hot Swap baskets support formats | SATA I/II/III |
| Front I/O Ports | 2 x USB 2.0 |
| Control & Indicator, LED | 1 x Power, 1 x HDD |
| Switch | POWER, RESET |
| Expansion Slots | 7 low-profile |
| Cooling System | |
| Installed fans | 4 x 8 cm in the middle frame |
| Other parameters | |
| Maximum height of the CPU fan, mm | 65 |
| Chassis material | Steel |
| Material Thickness, mm | 1 |
| Cases color | Black |
| Chassis color | Silver |
| Chassis size (D x W x H), mm | 650 x 425 x 90 |
| Size with handles and ears (D x W x H), mm | 700 x 485 x 90 |
| Dimensions (D x W x H), mm | 820 x 580 x 200 |
