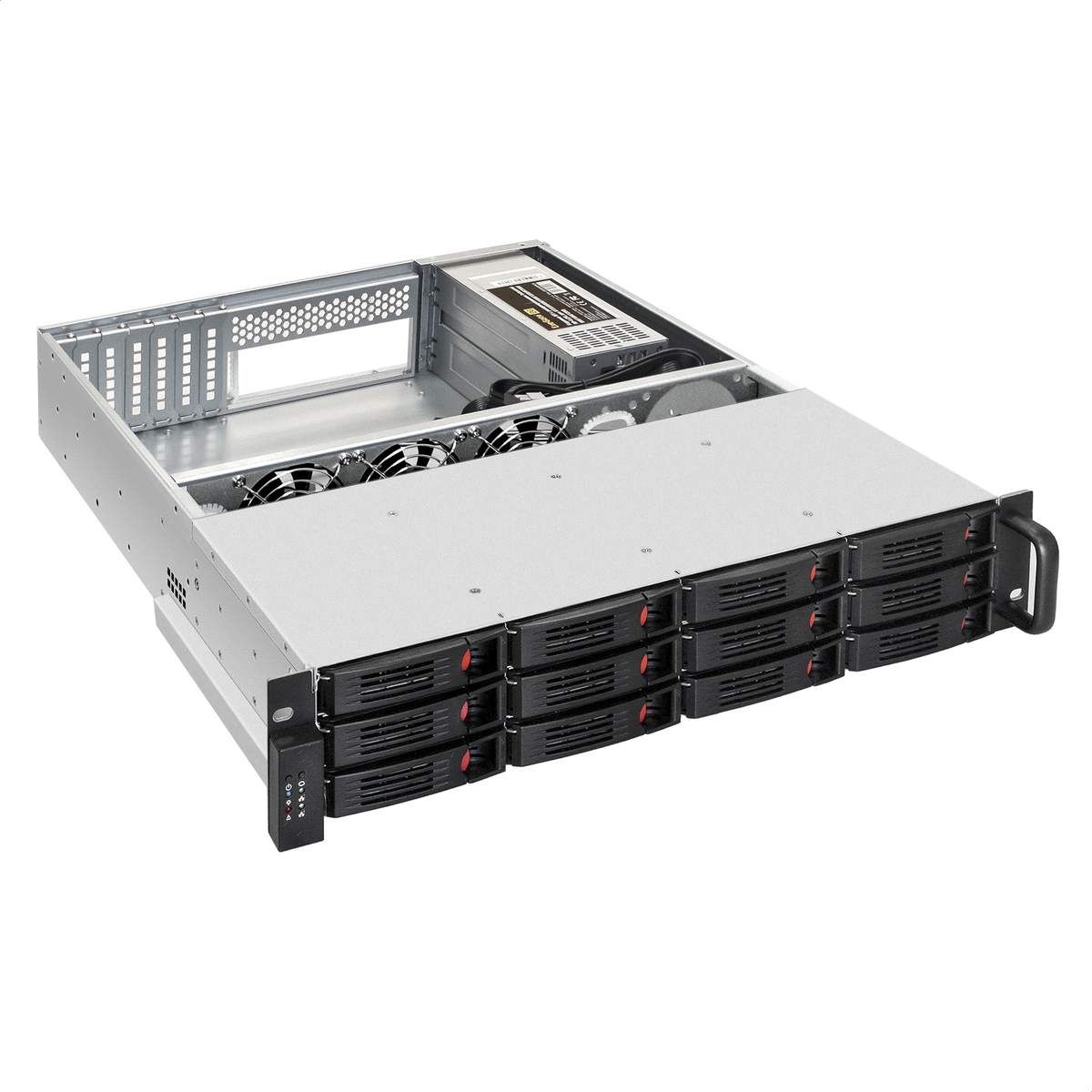

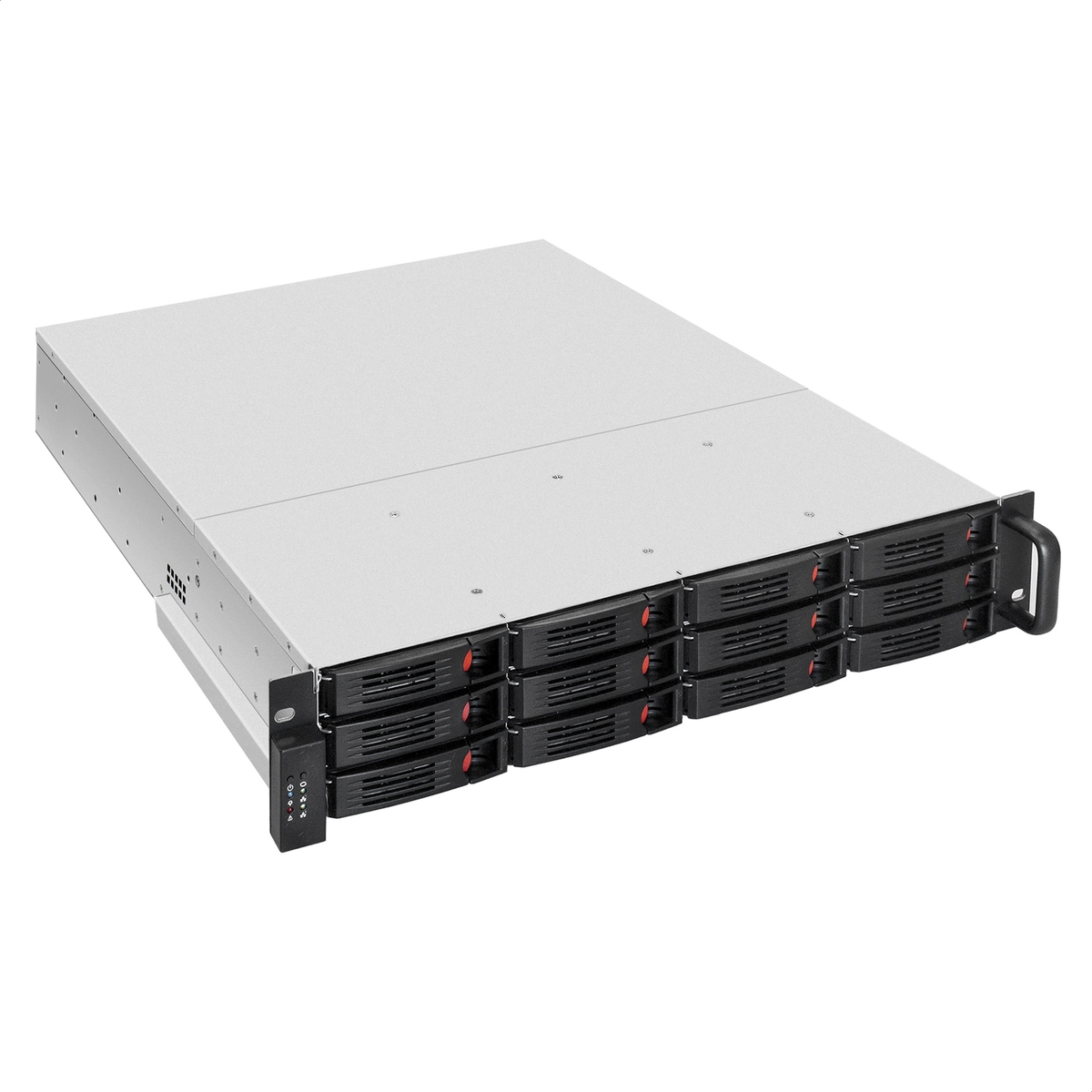

Server platform ExeGate Pro 2U550-HS12//Redundant 2x1200W
| Modification | P/N | EAN |
| EX294271 | 4895205139145 | |
| EX296233 | 4895205163416 | |
| EX294272 | 4895205139152 | |
| EX294273 | 4895205139169 | |
| EX294274 | 4895205139176 |
The platform is supplied assembled only

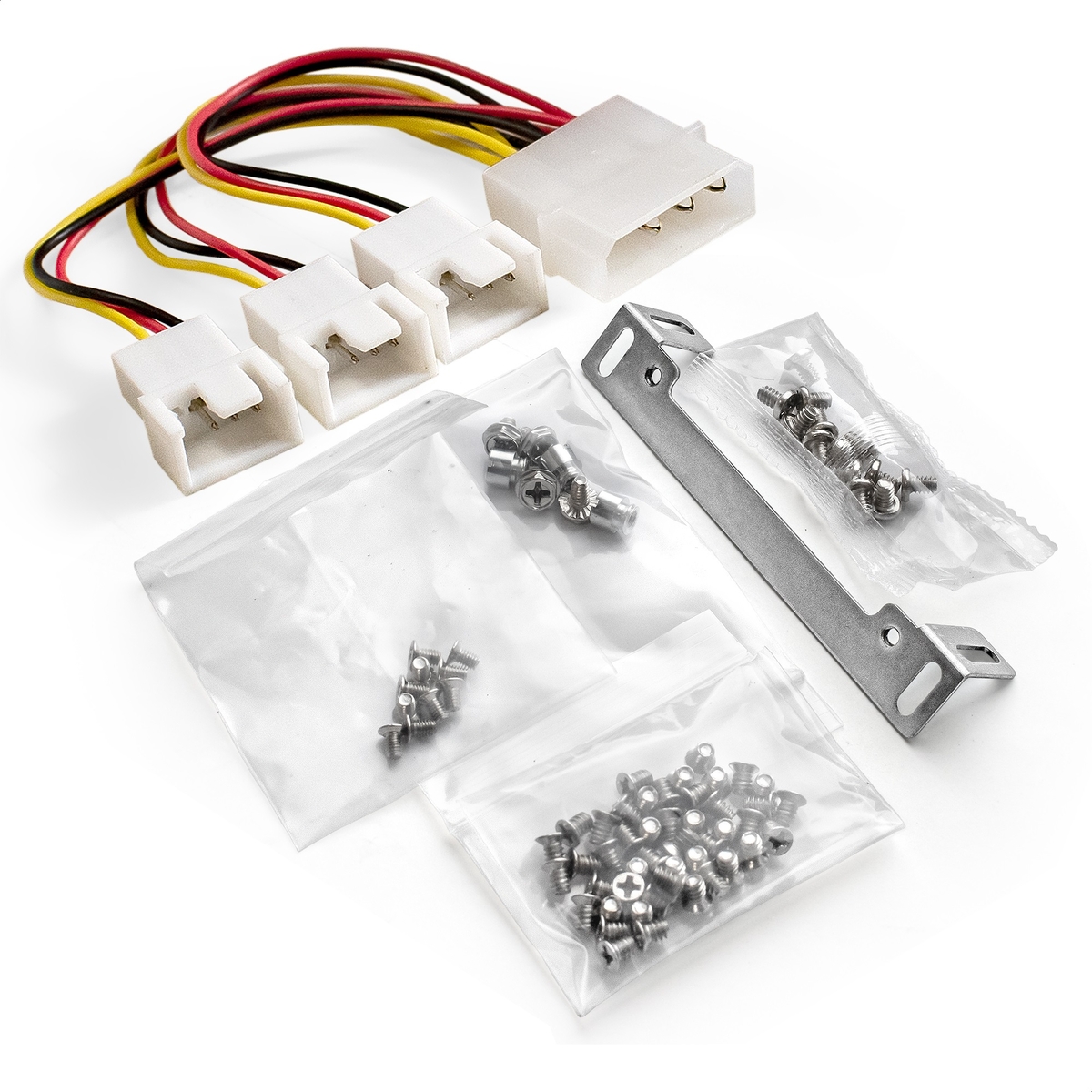

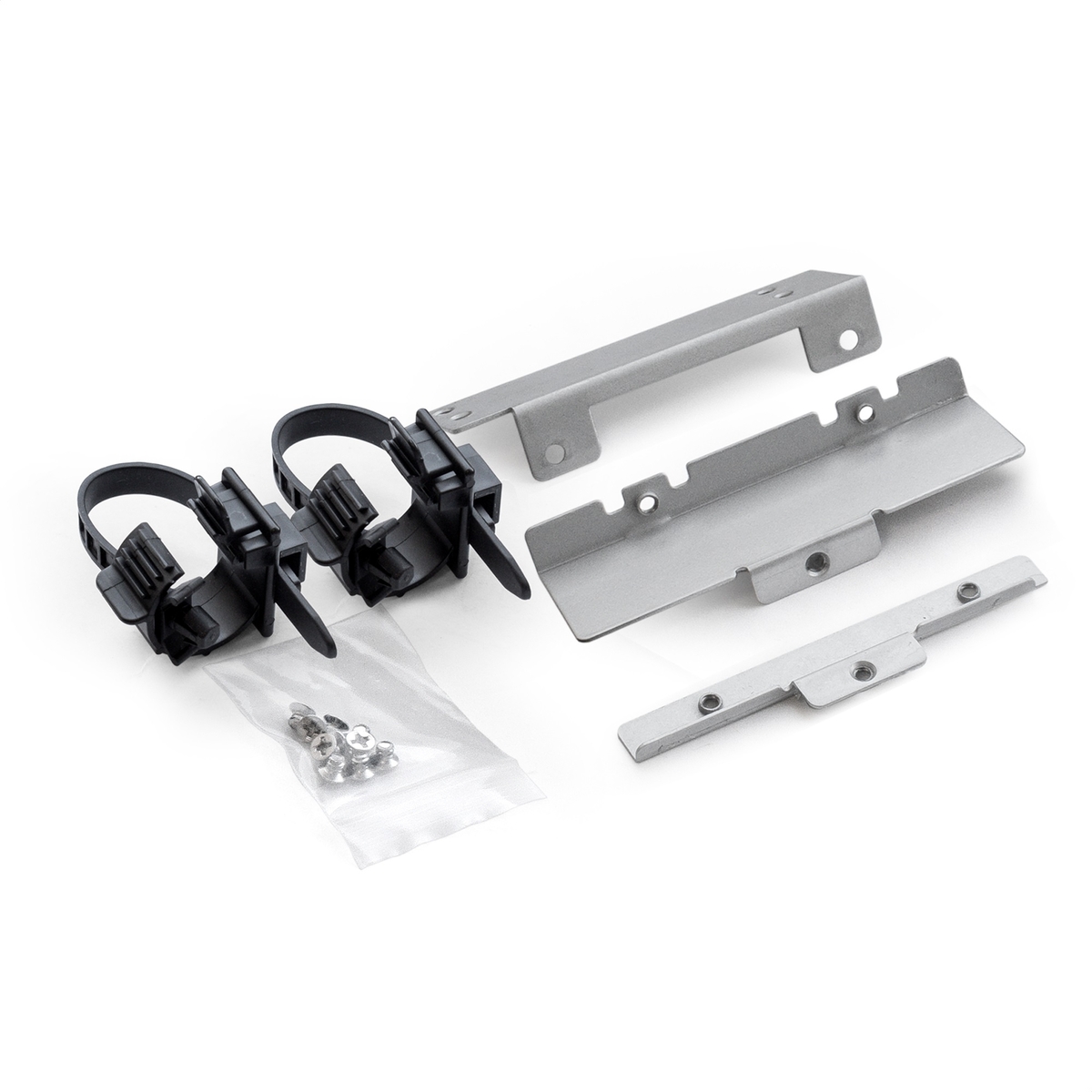

An installation kit is required to build the platform. The kit is not supplied separately.
SpecificationAn installation kit is required to build the platform. The kit is not supplied separately.
| Height | 2U |
| Supported MB formats | ATX, mATX, mini DTX, mini ITX |
| Power | |

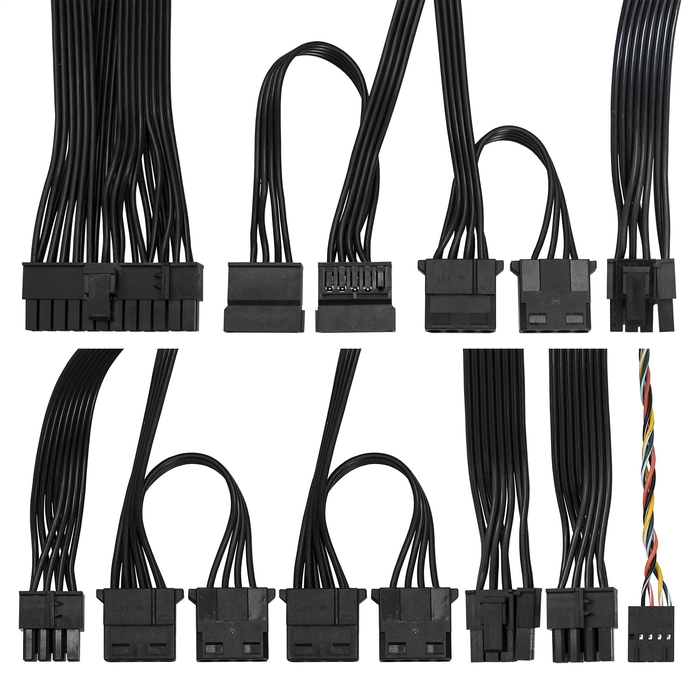

| PSU models | Redundant 2x1200W |
| PSU, W | 1200 |
| PSU type | Non-standard |
| Construction | |

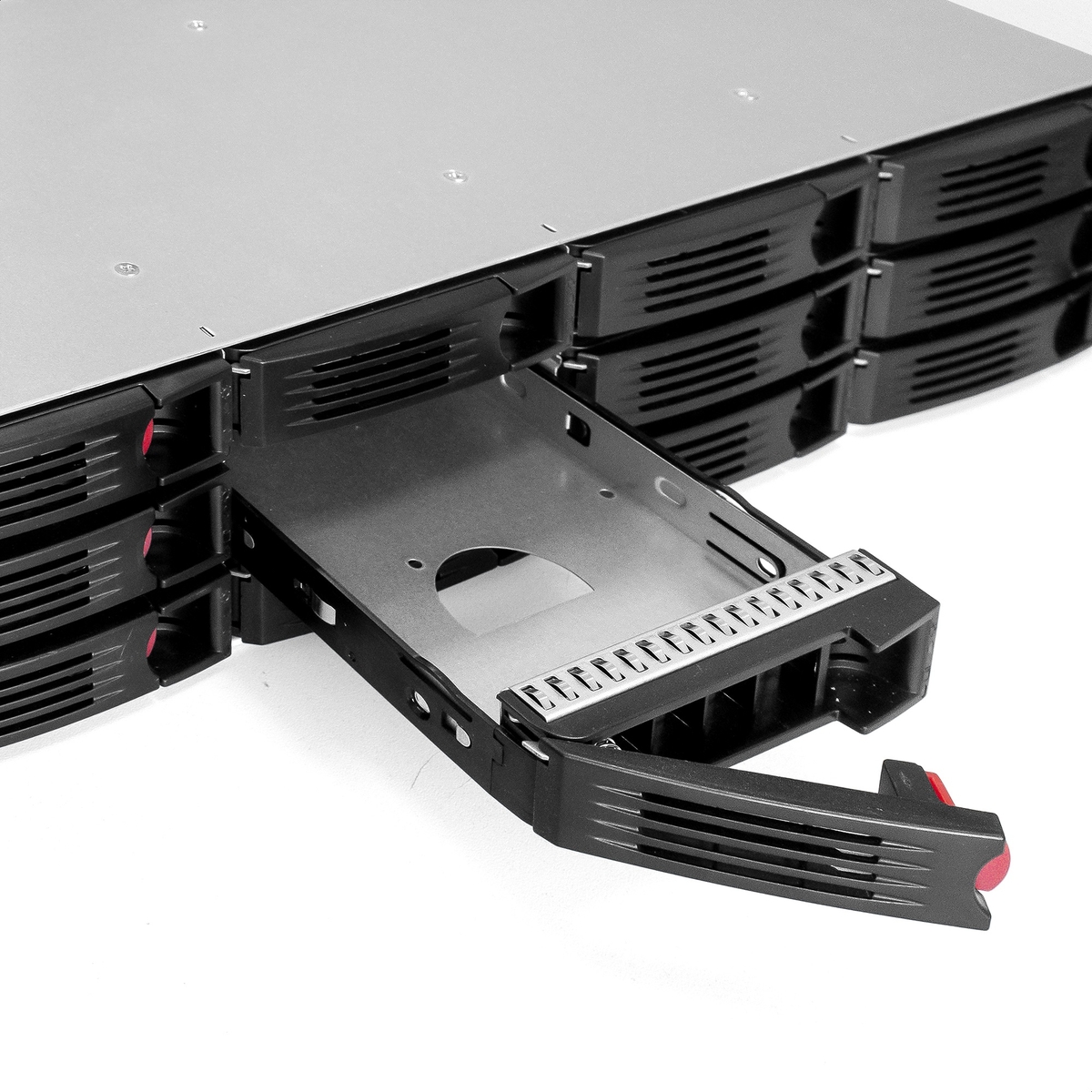

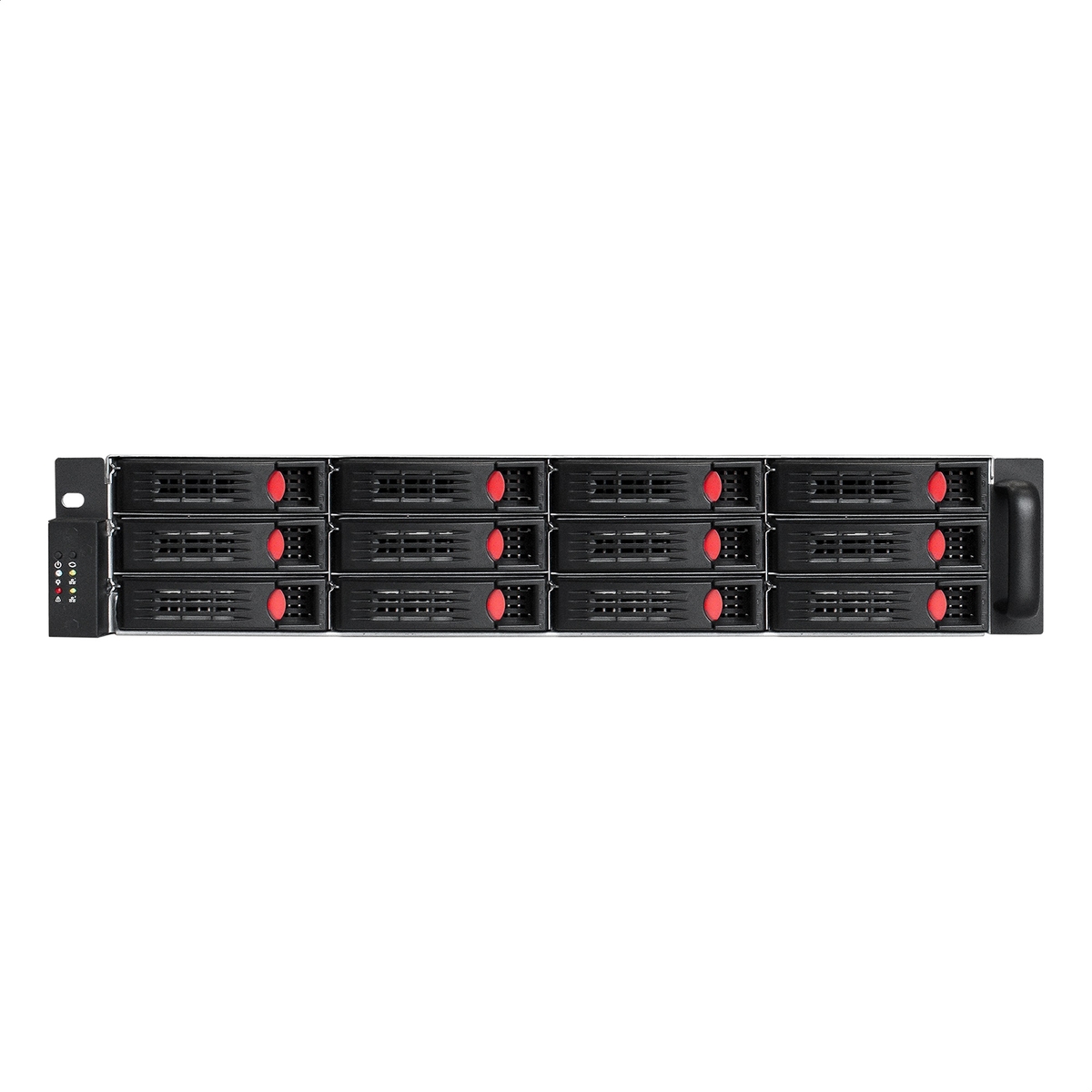

| HotSwap | 12 x 3,5"/2,5" |
| Hot Swap baskets support formats | SAS 6Gbps and SATA I/II/III |

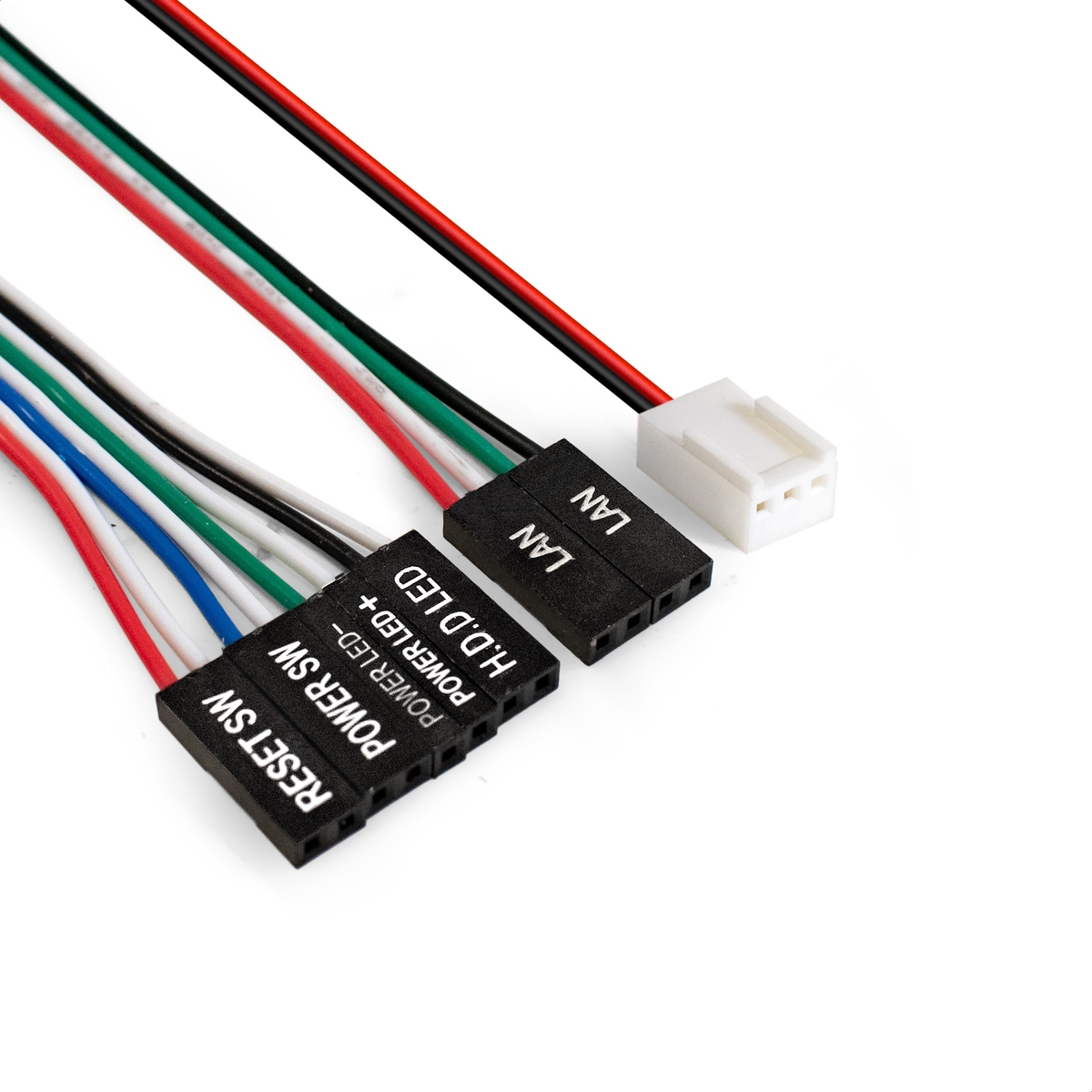

| Control & Indicator, LED | 1 x Power, 1 x HDD, 1 x NIC, Status LED |
| Switch | POWER, RESET |
| Expansion Slots | 7 |
| Cooling System | |
| Installed fans | 3 x 8 cm in the middle frame |
| Places to install additional fans | 1 x 8 cm in the middle frame |
| Other parameters | |
| Maximum height of the CPU fan, mm | 65 |
| Maximum length of the power supply unit, mm | 260 |
| The maximum length of the power supply unit with the drive opposite, mm | 100 |
| Maximum length of the video card, mm | 260 (low-profile graphics card only) |
| Front panel material | Steel |
| Chassis material | Steel |
| Material Thickness, mm | 1 |
| Cases color | Black |
| Chassis color | Silver |
| Chassis size (D x W x H), mm | 550 x 431 x 89 |
| Size with handles and ears (D x W x H), mm | 583 x 483 x 89 |
| Recommended ExeGate fans | EP08025SM |
| Dimensions (D x W x H), mm | 730 x 580 x 220 |
