4U650-010/4U4139L
Specification
| Type | 4U |
| Motherboard Support | microATX, ATX, SSI CEB, SSI EEB, EATX |
| Max. motherboard size, mm | 305x330 |
| Drive Bay: | |
| Ext. 5.25" | 3 |
| Int. 3.5" | 10 |

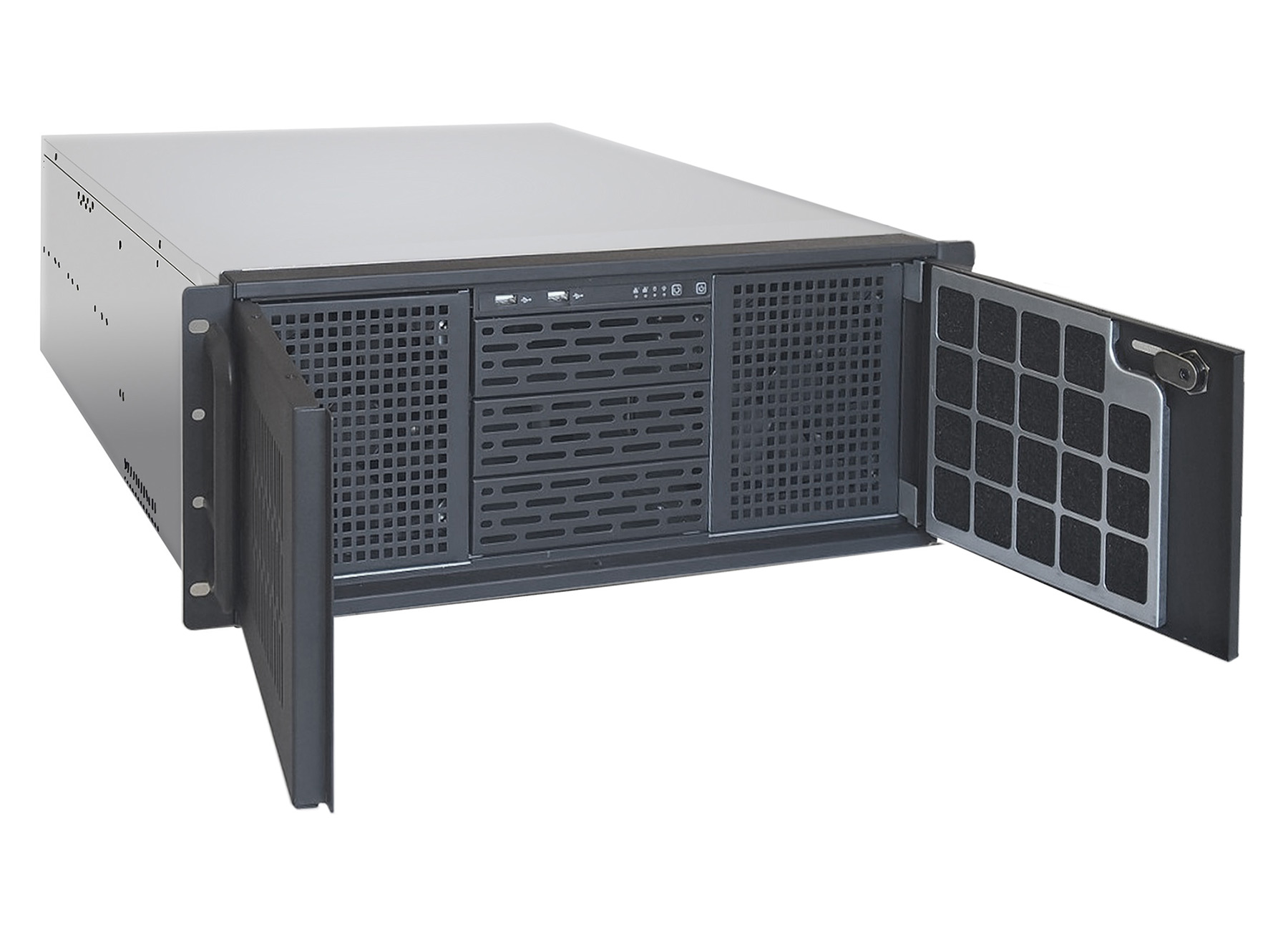

| Dust | Front panel is equipped with dust filters |
| Front I/O Ports | 2 x USB 2.0 |
| Control & Indicator, LED | 1 x Power, 1 x HDD, 2 x NIC |
| Switch | POWER, RESET |
| Expansion Slots | 7 |

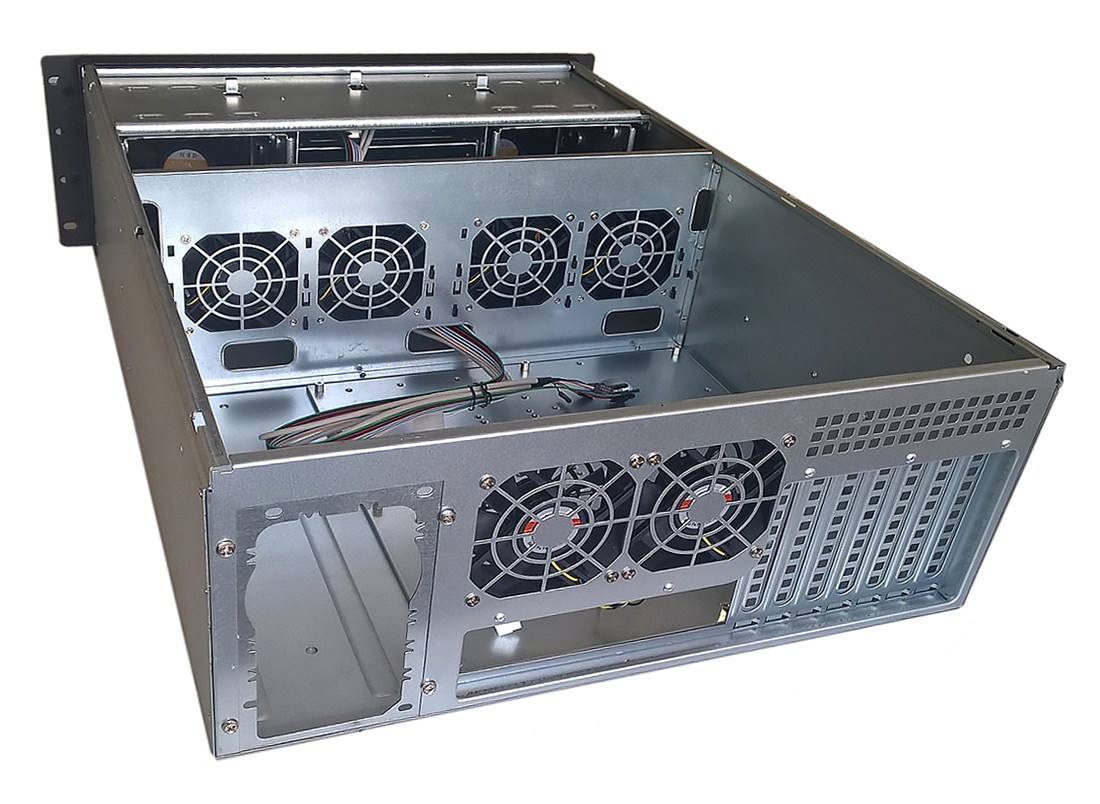

| Add Fan | 2 x 8 cm fans on the rear, 2 x 12 cm fans on the front, 4 x 8 cm in the middle frame |
| PSU | Support ATX Power Supply |
| Recommended ExeGate PSU | ServerPRO-500ADS, ServerPRO-600ADS, ServerPRO-700ADS, ServerPRO-800ADS |
| Chassis material | 1.1 mm steel |
| Cases color | Black |
| Chassis color | Black |
| Dimensions (D x W x H), mm | 650 x 430 x 177 |
| Net Weight w/o PSU / with PSU, kg | 15,6/17,4 |
| PSU model | w/o PSU | 500W | 600W | 700W | 800W |
| P/N | EX172974 | EX234967 | EX234968 | EX234970 | EX248519 |
| EAN | 4897040850834 | 4897040857437 | 4897040857444 | 4897040857451 | 4897040858953 |
