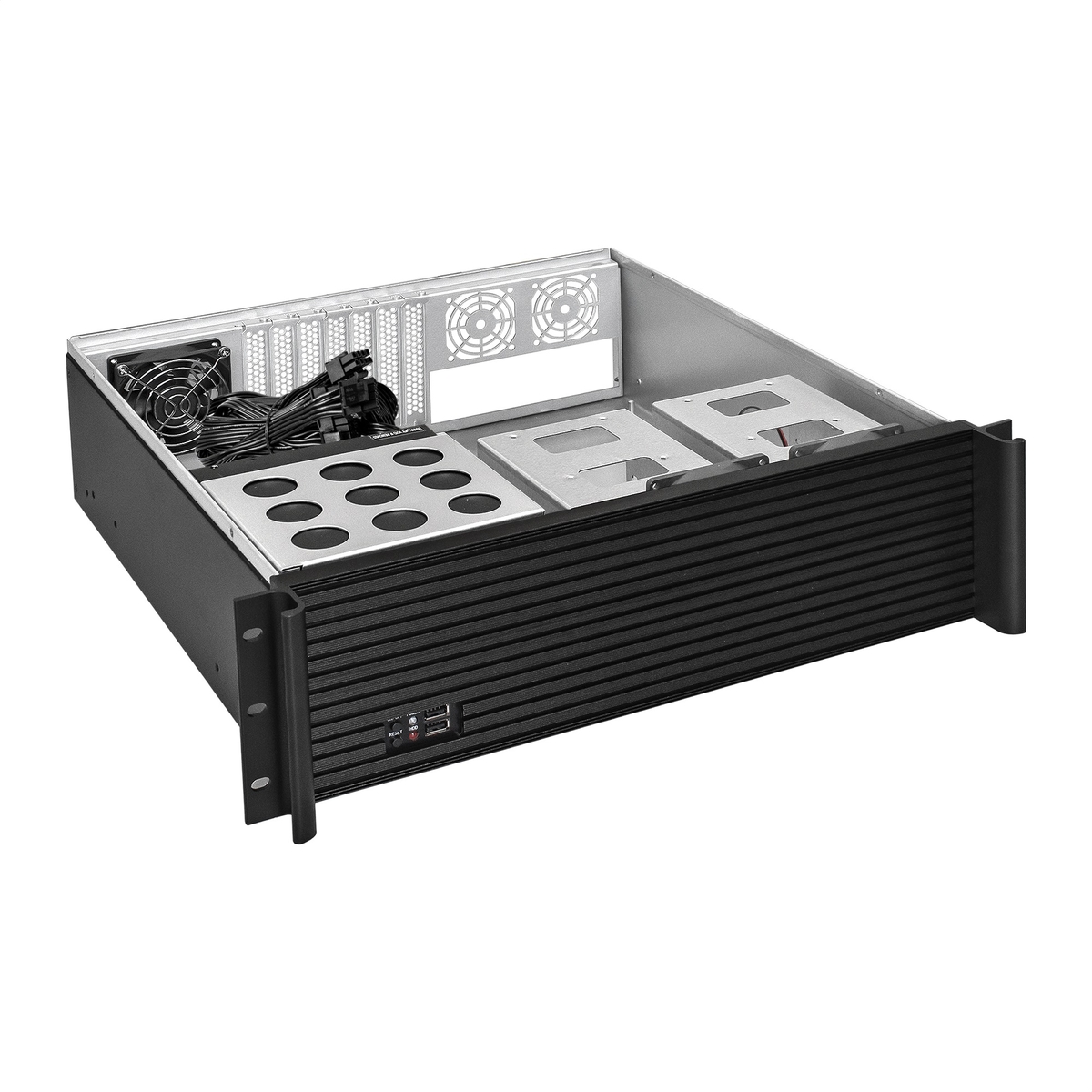

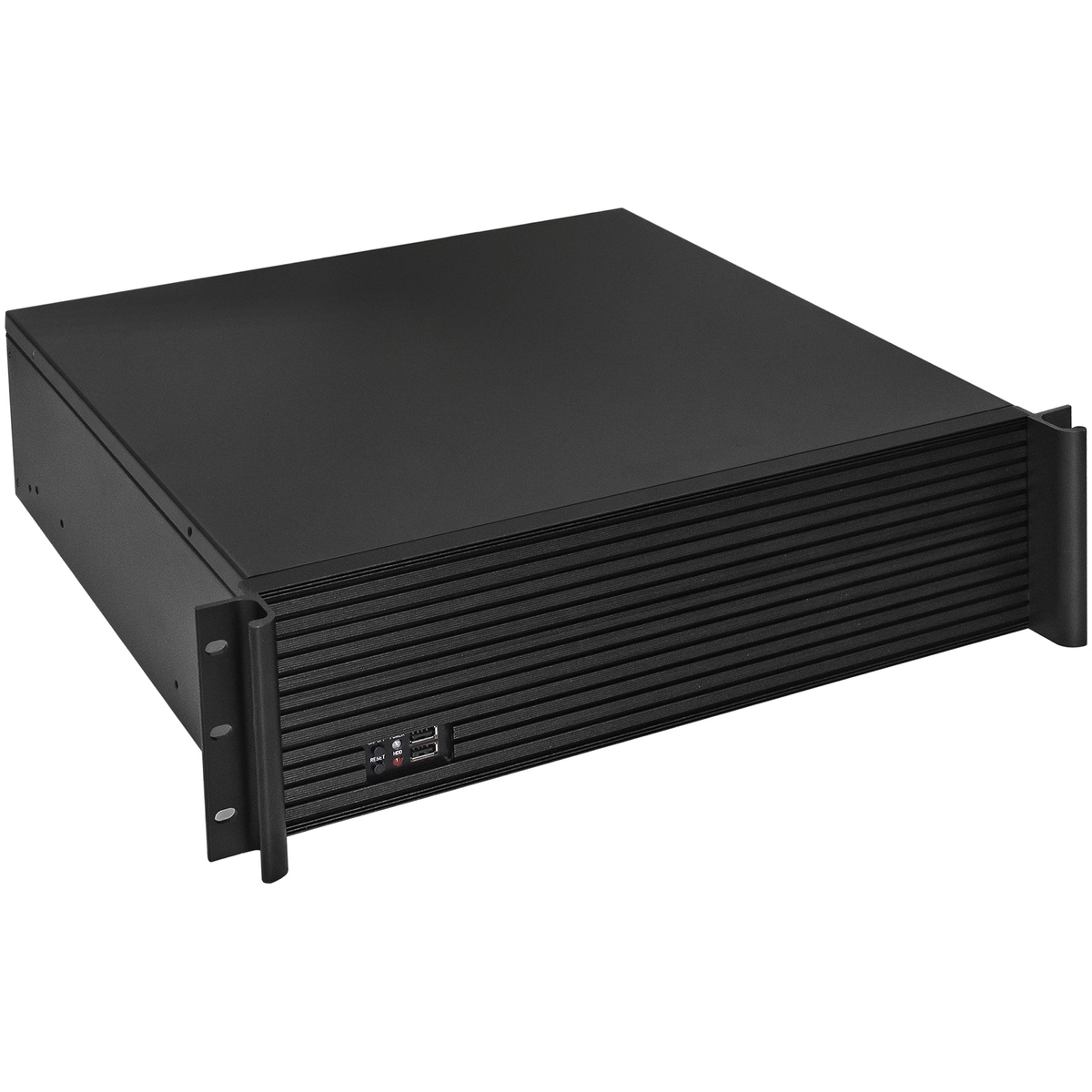

Server case ExeGate Pro 3U450-08/500PAS
| Modification | P/N | EAN |
| 3U450-08 | EX292257 | 4895205129832 |
| 3U450-08/400ADS | EX292694 | 4895205131385 |
| 3U450-08/500ADS | EX292692 | 4895205131392 |
| 3U450-08/500PAS | EX300024 | 4895205192744 |
| 3U450-08/500RADS | EX293200 | 4895205134256 |
| 3U450-08/600ADS | EX292693 | 4895205131408 |
| 3U450-08/600PAS | EX300025 | 4895205192751 |
| 3U450-08/600RADS | EX293201 | 4895205134249 |
| 3U450-08/700ADS | EX292695 | 4895205131415 |
| 3U450-08/700PAS | EX300026 | 4895205192768 |
| 3U450-08/700RADS | EX293202 | 4895205134232 |
| 3U450-08/800ADS | EX292696 | 4895205131422 |
| 3U450-08/800PAS | EX300027 | 4895205192775 |
| 3U450-08/800RADS | EX293203 | 4895205134225 |
| 3U450-08/900ADS | EX292697 | 4895205131439 |
| 3U450-08/900PAS | EX300028 | 4895205192782 |
| 3U450-08/900RADS | EX293204 | 4895205134218 |
| 3U450-08/1000ADS | EX292698 | 4895205131446 |
| 3U450-08/1000PAS | EX300021 | 4895205192713 |
| 3U450-08/1000RADS | EX293197 | 4895205134287 |
| 3U450-08/1100ADS | EX292699 | 4895205131453 |
| 3U450-08/1100PAS | EX300022 | 4895205192720 |
| 3U450-08/1100RADS | EX293198 | 4895205134270 |
| 3U450-08/1200ADS | EX292700 | 4895205131460 |
| 3U450-08/1200PAS | EX300023 | 4895205192737 |
| 3U450-08/1200RADS | EX293199 | 4895205134263 |
Specification
| Height | 3U |
| Supported MB formats | mini ITX, mini DTX, mATX, ATX |

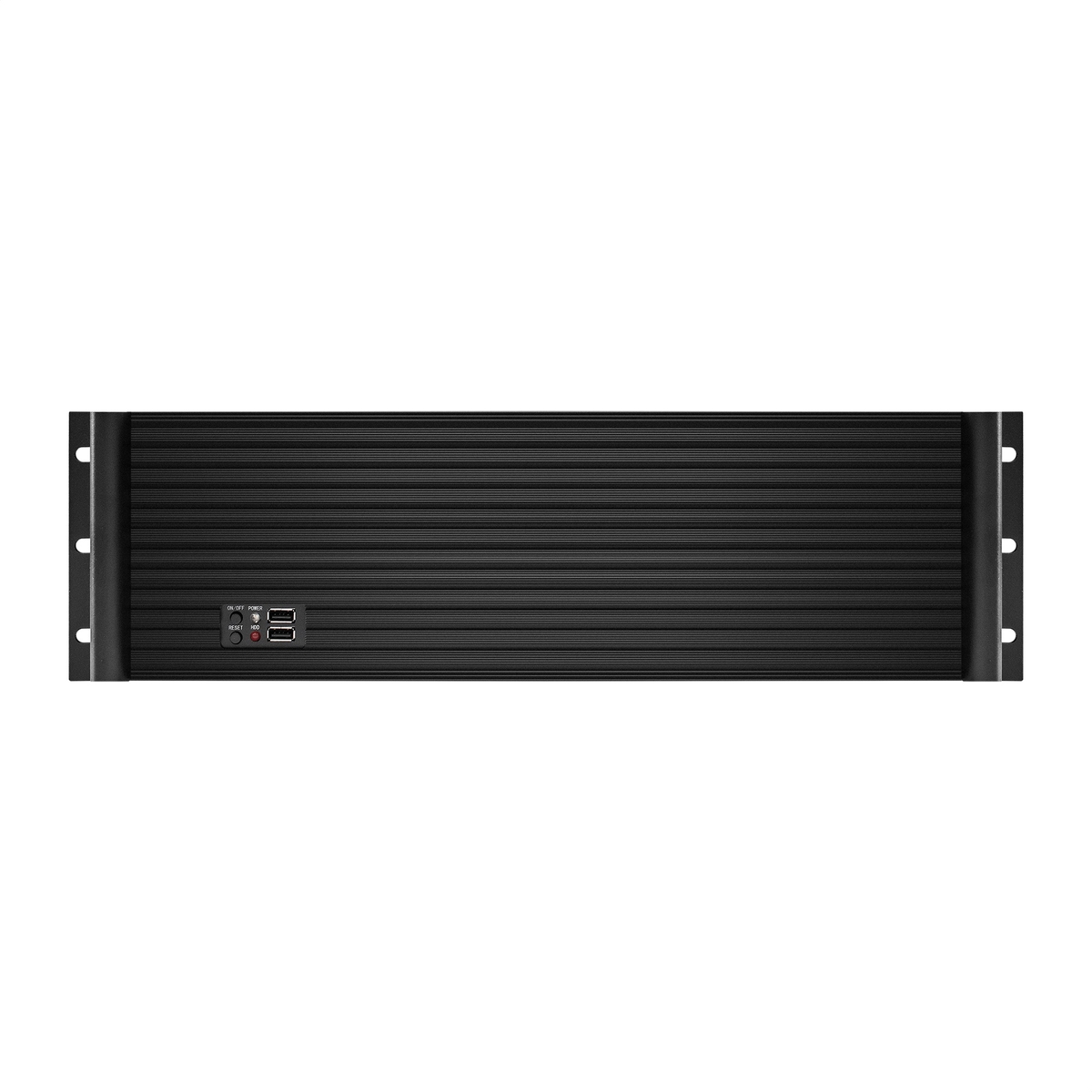

| Front panel material | Aluminum |
| Chassis material | Steel |
| Material Thickness, mm | 1 |
| Cases color | Black |
| Chassis color | Black |
| Power | |

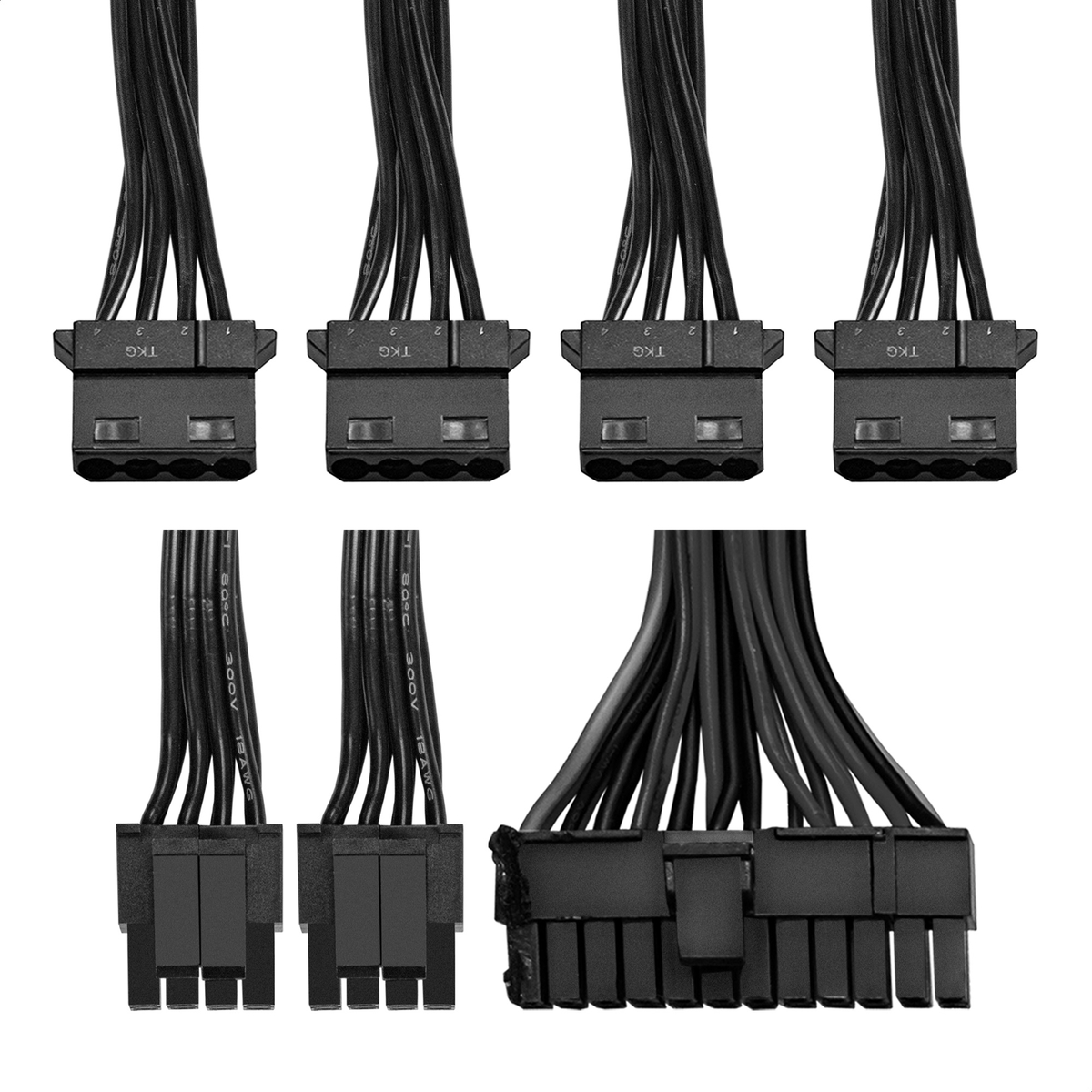

| PSU models | ExeGate ServerPRO-500PAS |
| PSU, W | 500 |
| PSU type | ATX |
| Construction | |

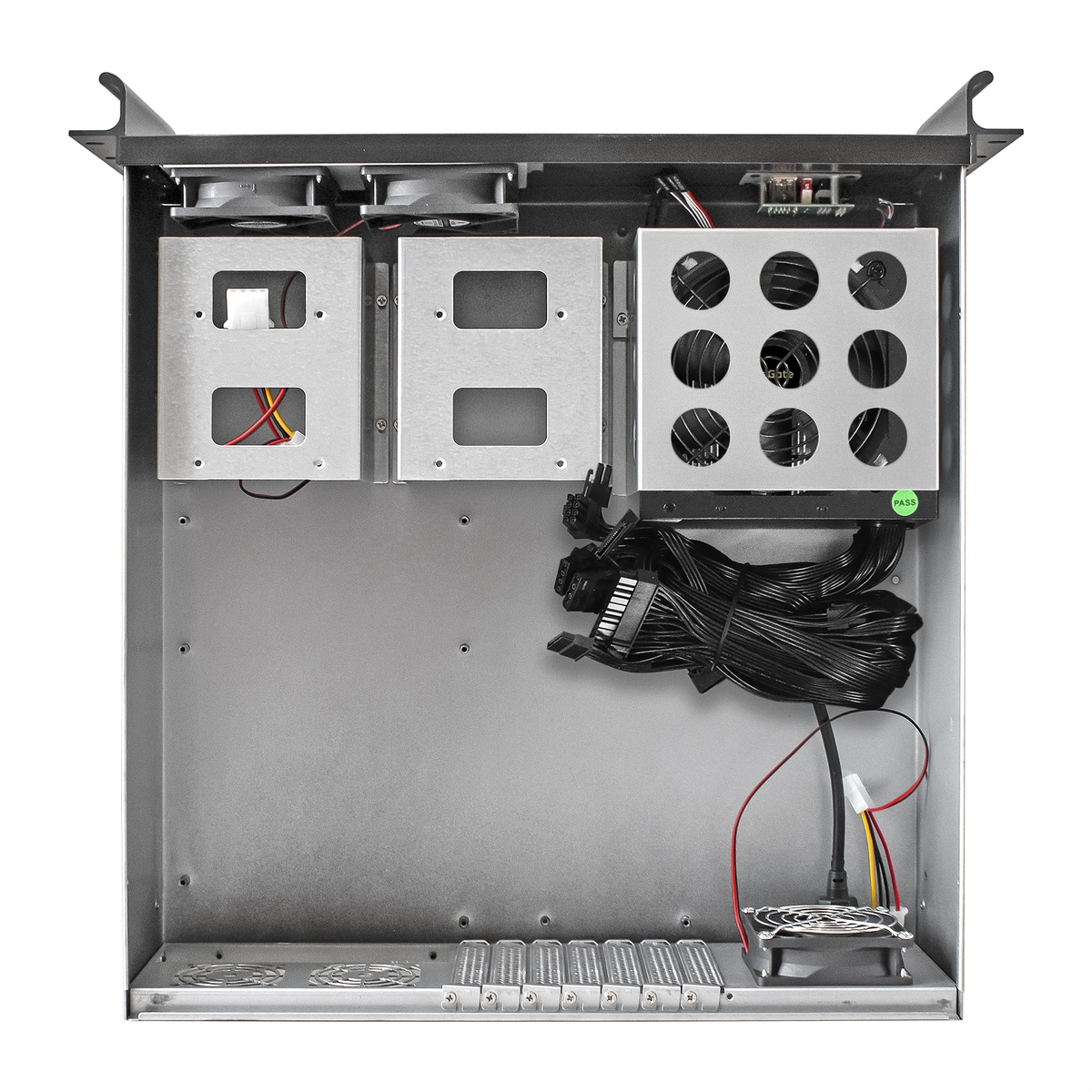

| Internal Drive Bay 3,5" | 8 |
| Internal Drive Bay 2,5" | 2 instead of 3,5" |

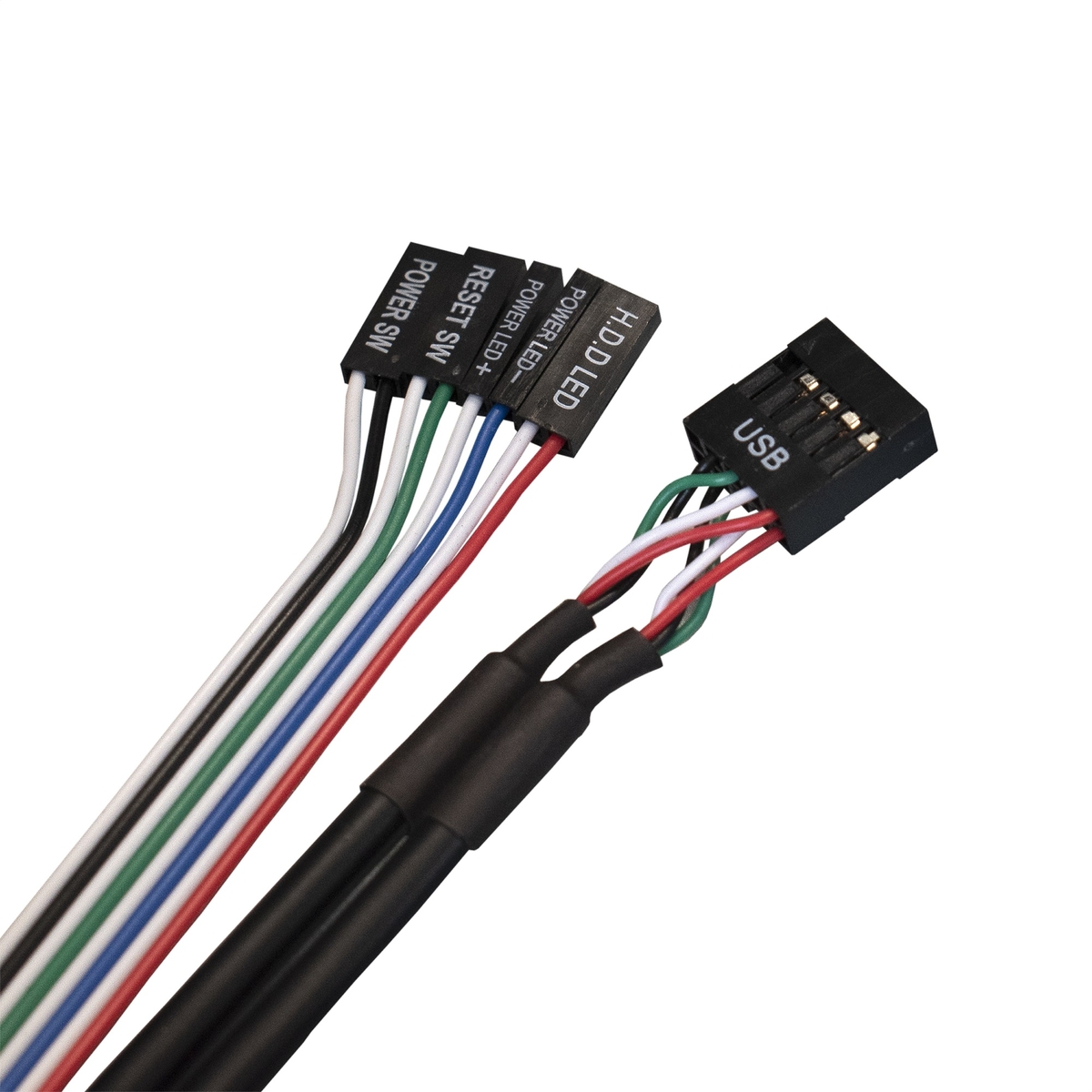

| Front I/O Ports | 2 x USB 2.0 |
| Control & Indicator, LED | 1 x Power, 1 x HDD |
| Switch | POWER, RESET |
| Expansion Slots | 7 |
| Cooling System | |

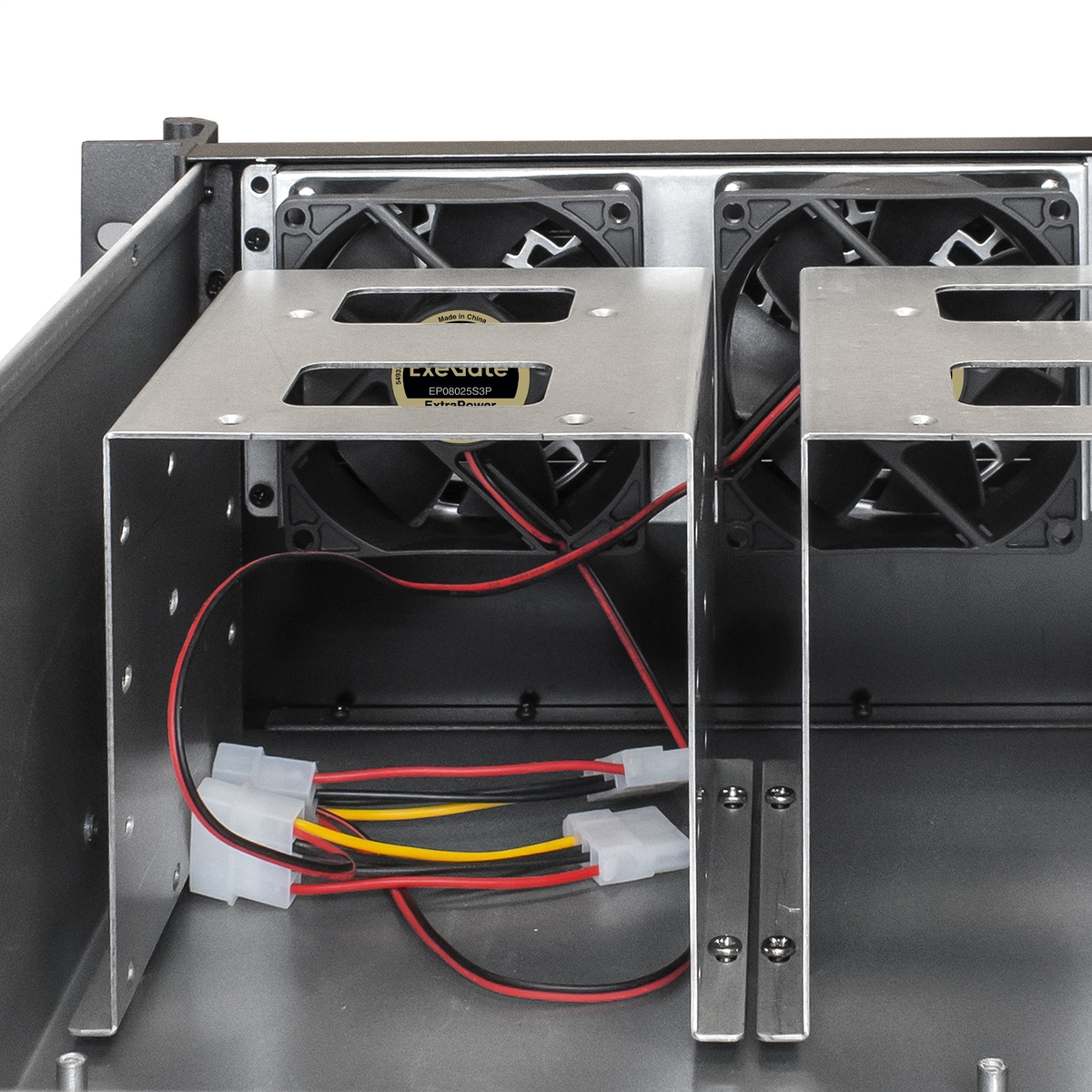

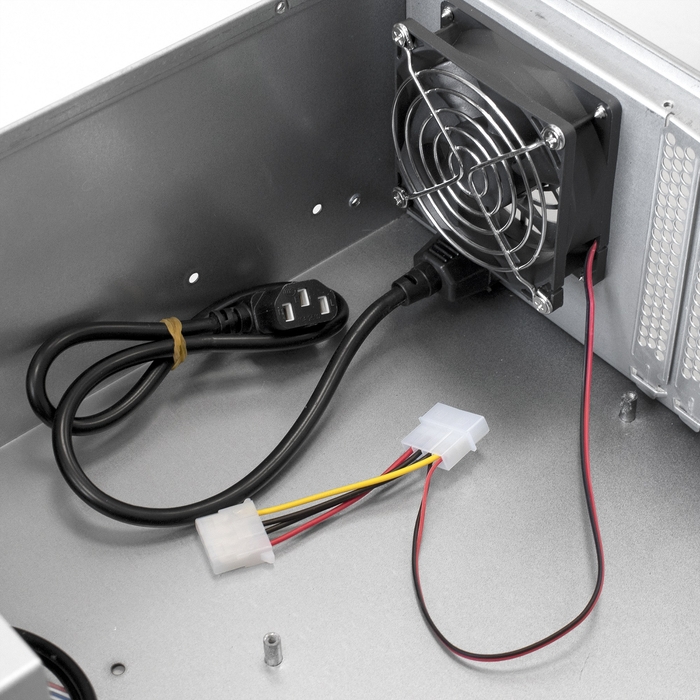

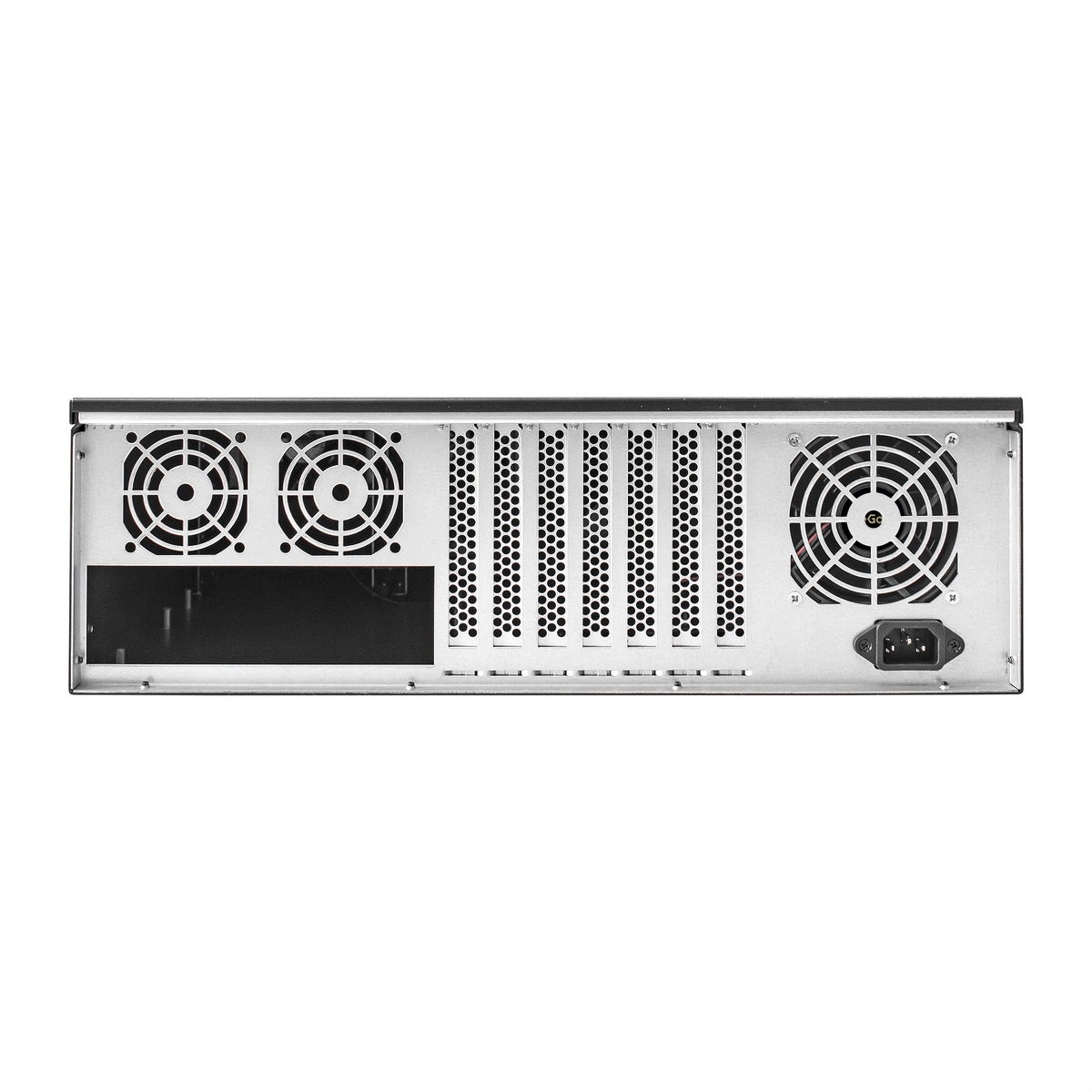

| Installed fans | 2 x 8 cm in the front panel, 1 x 8 cm in the rear panel |
| Places to install additional fans | 2 x 6 cm in the rear panel |
| Recommended ExeGate fans | ES06025S3P |
| Other parameters | |
| Maximum height of the CPU fan, mm | 100 |
| Maximum length of the video card, mm | 240 |
| The maximum length of the video card with HDD opposite, mm | 220 |

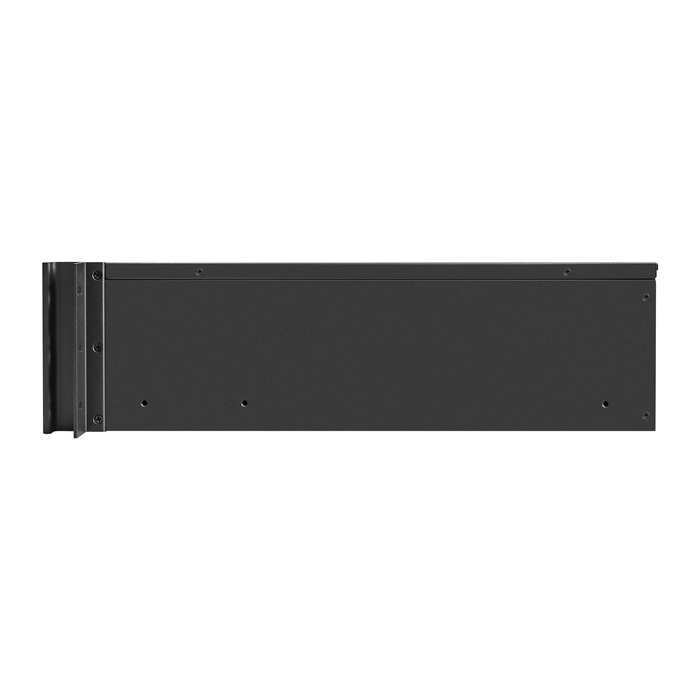

| Chassis size (D x W x H), mm | 450 x 428 x 132 |
| Size with handles and ears (D x W x H), mm | 485 x 484x 134 |
| GW, kg | 10,7 |
| Dimensions (D x W x H), mm | 620 x 560 x 235 |
