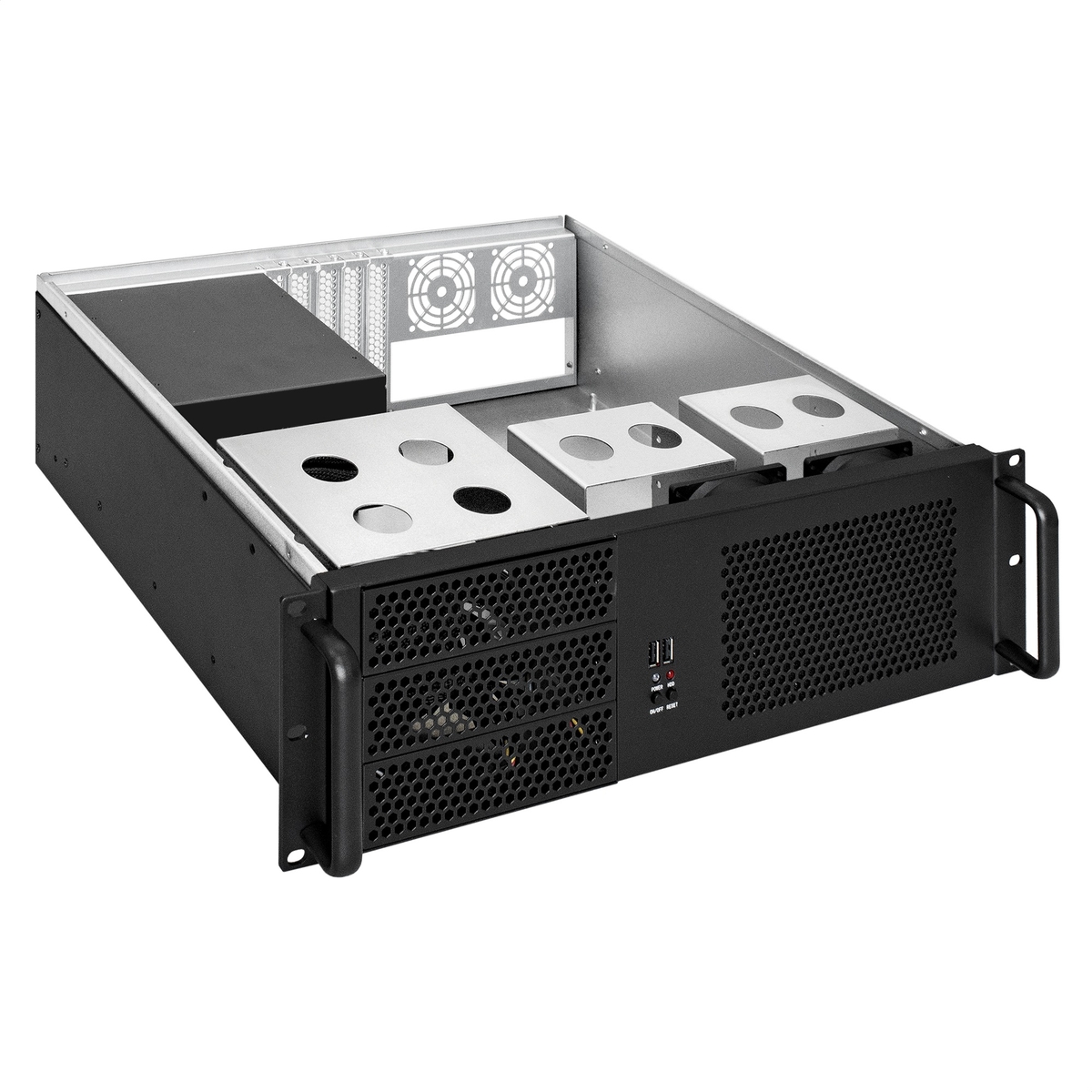

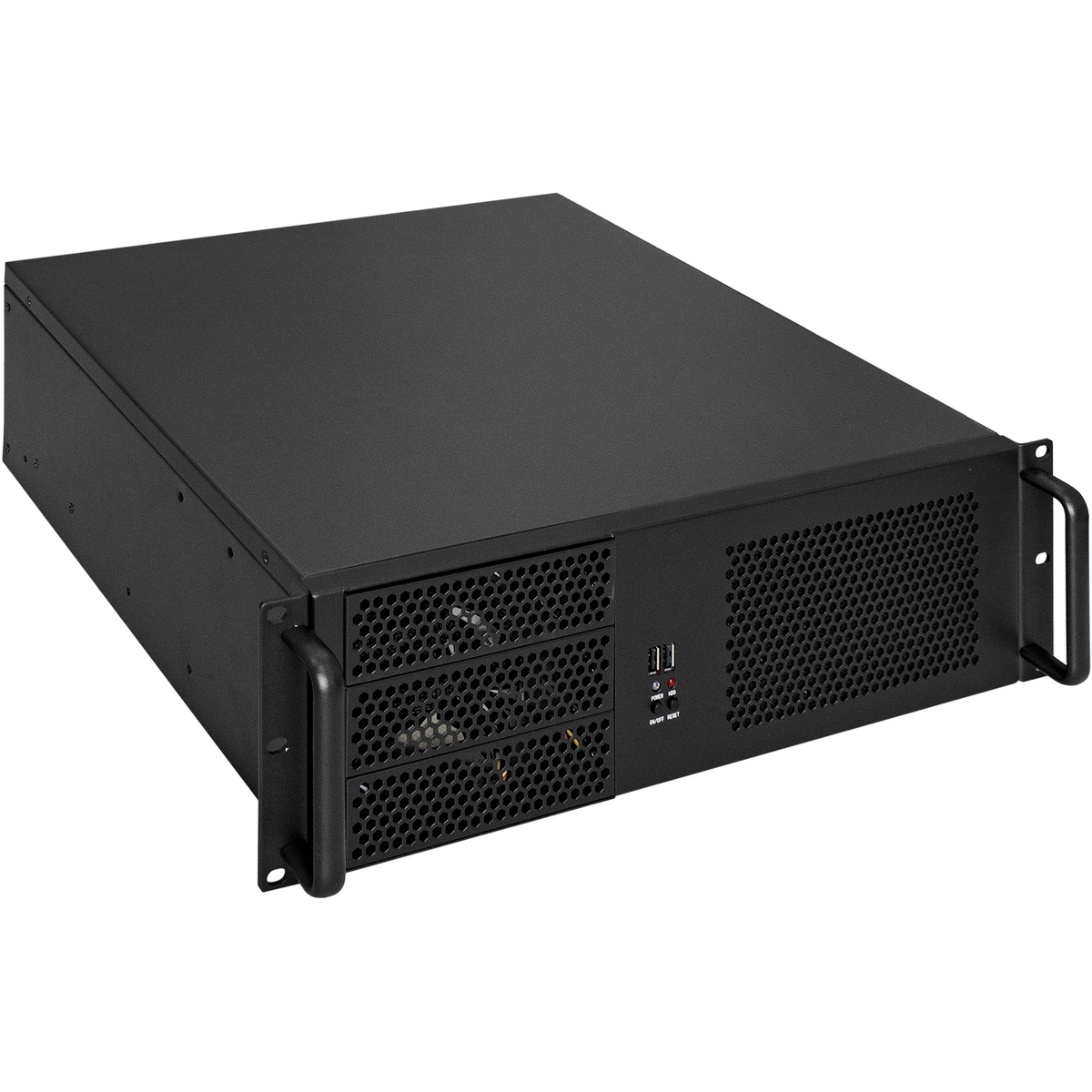

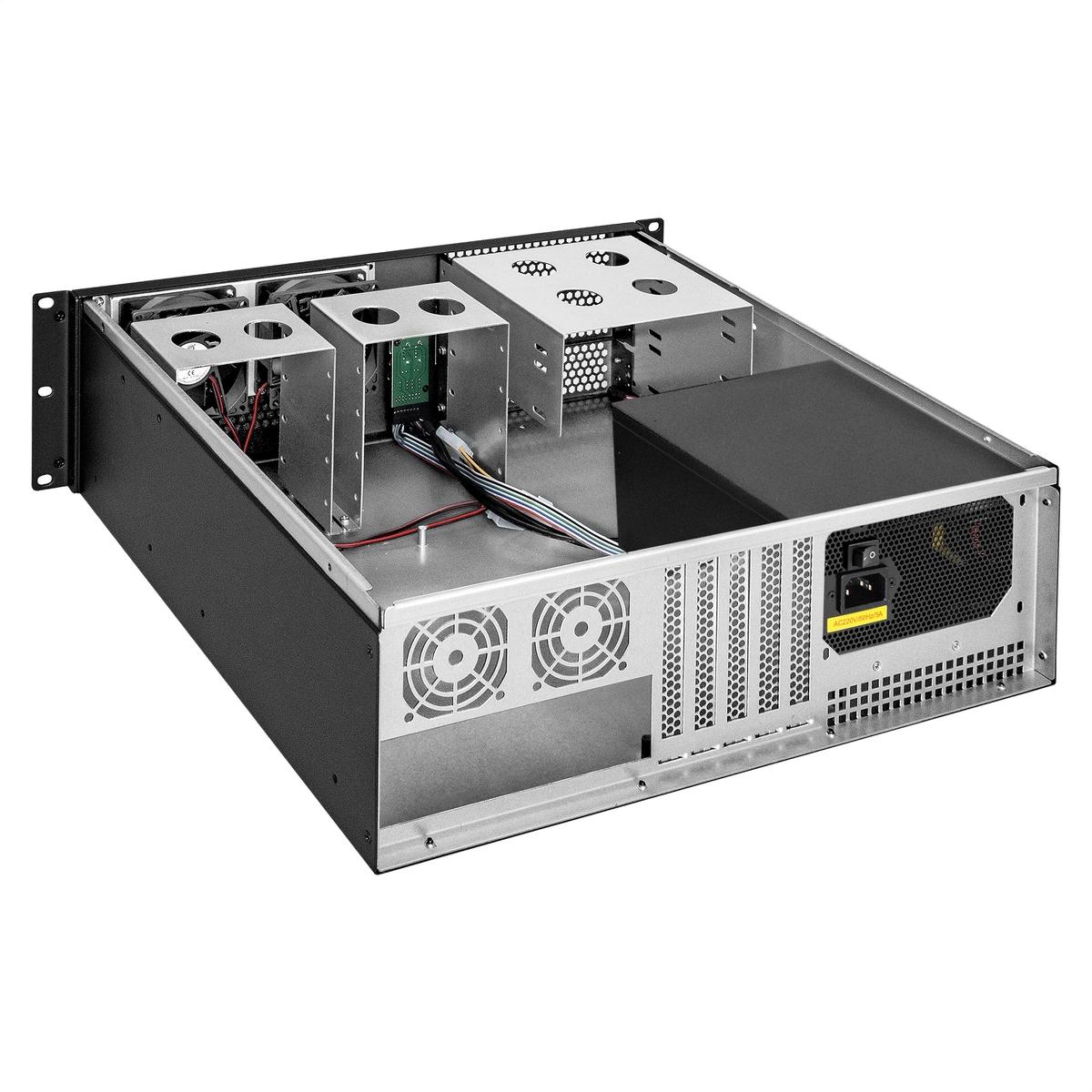

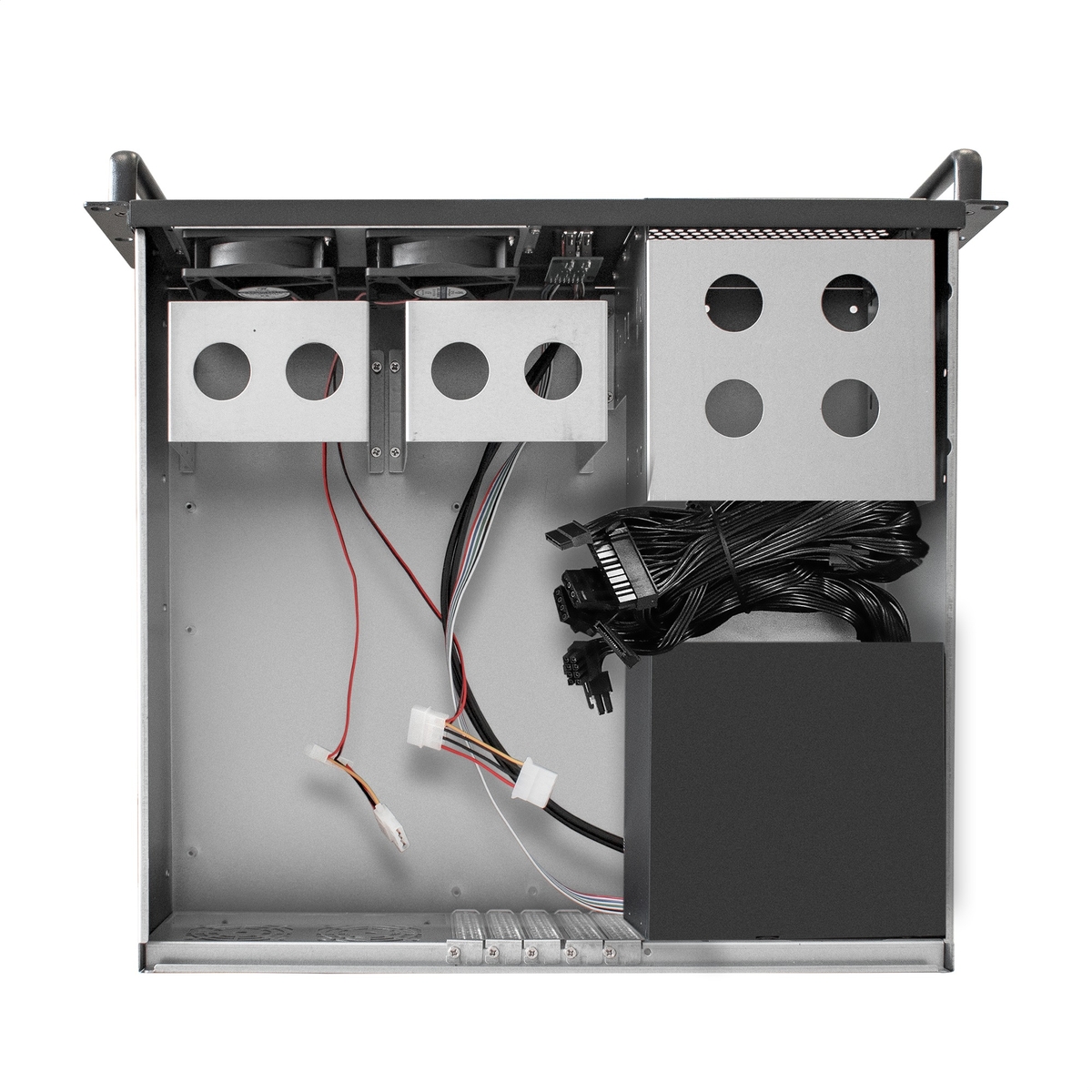

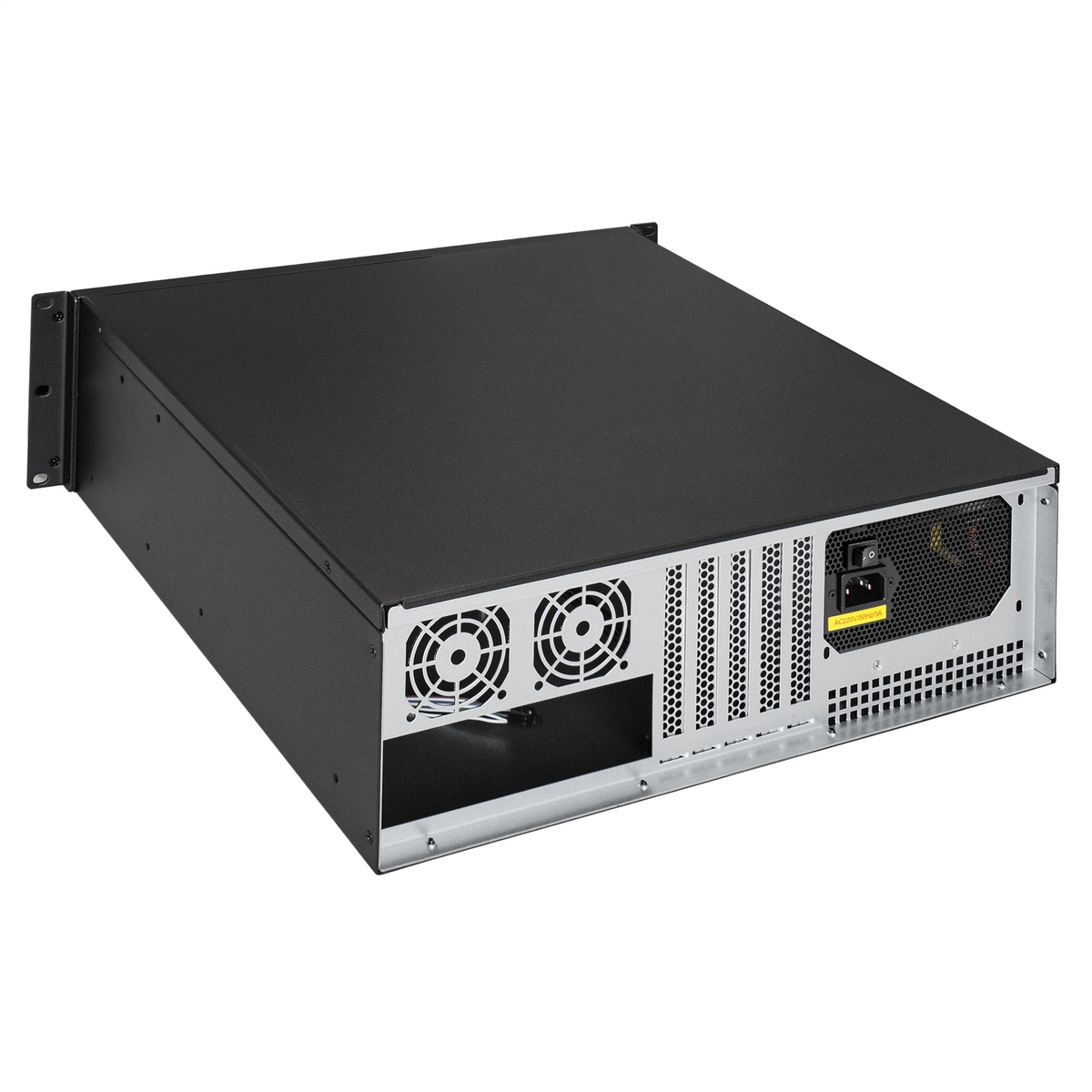

Server case ExeGate Pro 3U390-08/1200PAS
| Modification | P/N | EAN |
| 3U390-08 | EX264270 | 4895205103429 |
| 3U390-08/500ADS | EX264943 | 4895205104259 |
| 3U390-08/500PAS | EX300000 | 4895205192508 |
| 3U390-08/500RADS | EX293184 | 4895205134409 |
| 3U390-08/600ADS | EX264944 | 4895205104266 |
| 3U390-08/600PAS | EX300001 | 4895205192515 |
| 3U390-08/600RADS | EX293185 | 4895205133747 |
| 3U390-08/700ADS | EX264945 | 4895205104273 |
| 3U390-08/700PAS | EX300002 | 4895205192522 |
| 3U390-08/700RADS | EX293186 | 4895205134393 |
| 3U390-08/800ADS | EX264946 | 4895205104280 |
| 3U390-08/800PAS | EX300003 | 4895205192539 |
| 3U390-08/800RADS | EX293187 | 4895205134386 |
| 3U390-08/900ADS | EX293540 | 4895205136168 |
| 3U390-08/900PAS | EX300004 | 4895205192546 |
| 3U390-08/900RADS | EX293188 | 4895205134379 |
| 3U390-08/1000ADS | EX293541 | 4895205136137 |
| 3U390-08/1000PAS | EX299997 | 4895205192478 |
| 3U390-08/1000RADS | EX293181 | 4895205134430 |
| 3U390-08/1100ADS | EX293542 | 4895205136144 |
| 3U390-08/1100PAS | EX299998 | 4895205192485 |
| 3U390-08/1100RADS | EX293182 | 4895205134423 |
| 3U390-08/1200ADS | EX293543 | 4895205136151 |
| 3U390-08/1200PAS | EX299999 | 4895205192492 |
| 3U390-08/1200RADS | EX293183 | 4895205134416 |
Specification
| Height | 3U |
| Supported MB formats | mini ITX, mini DTX, mATX, ATX |
| Chassis material | Steel |
| Material Thickness, mm | 1,09 |
| Cases color | Black |
| Chassis color | Silver |
| Power | |

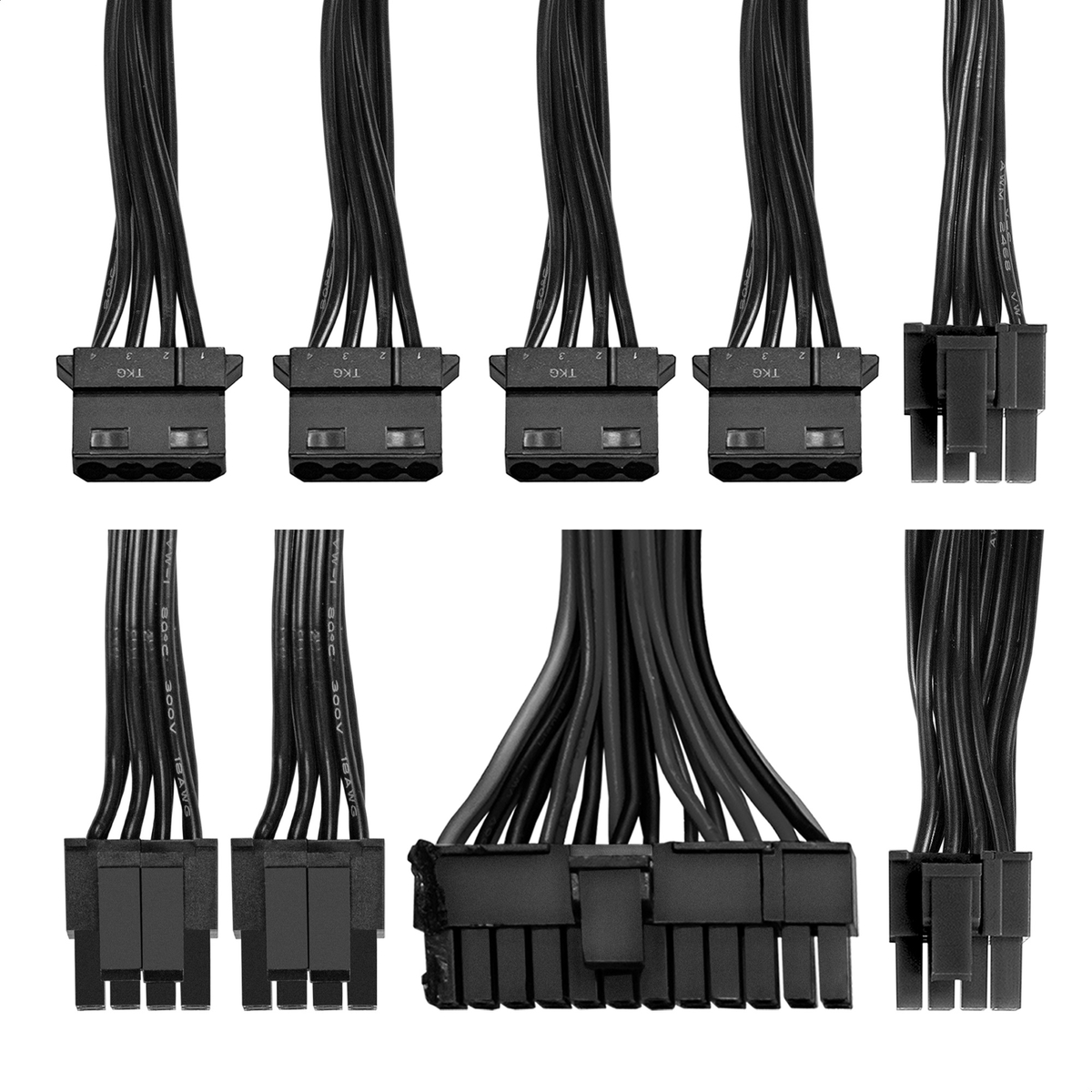

| PSU models | ExeGate ServerPRO-1200PAS |
| PSU, W | 1200 |
| PSU type | ATX |
| Construction | |
| External Drive Bay 5,25" | 2 (3 if the width is MB not more than 250 mm) |
| Internal Drive Bay 3,5" | 6 |
| Dust filter | Front panel is equipped with dust filters |

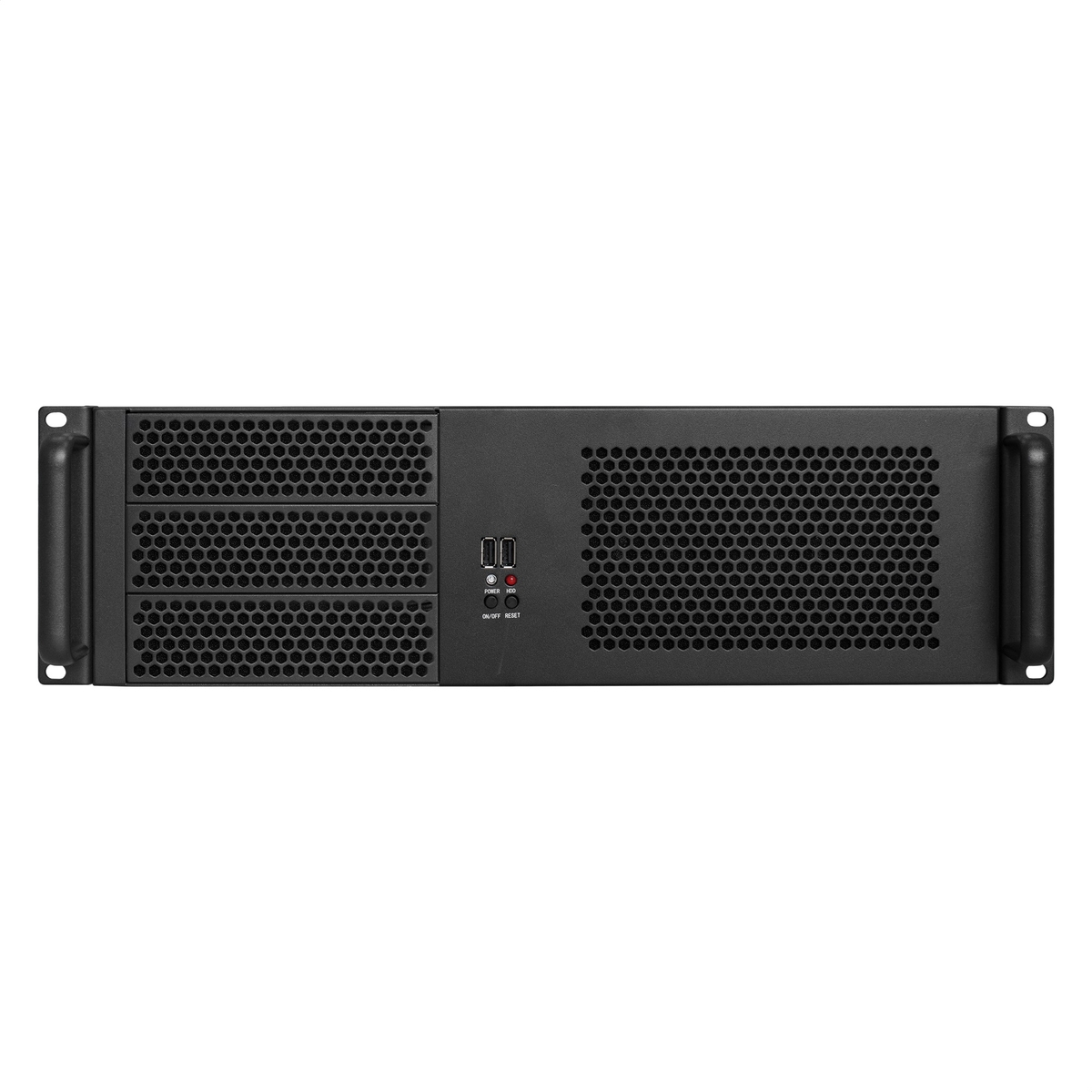

| Front I/O Ports | 2 x USB 2.0 |
| Control & Indicator, LED | 1 x Power, 1 x HDD |
| Switch | POWER, RESET |
| Expansion Slots | 5 |
| Cooling System | |

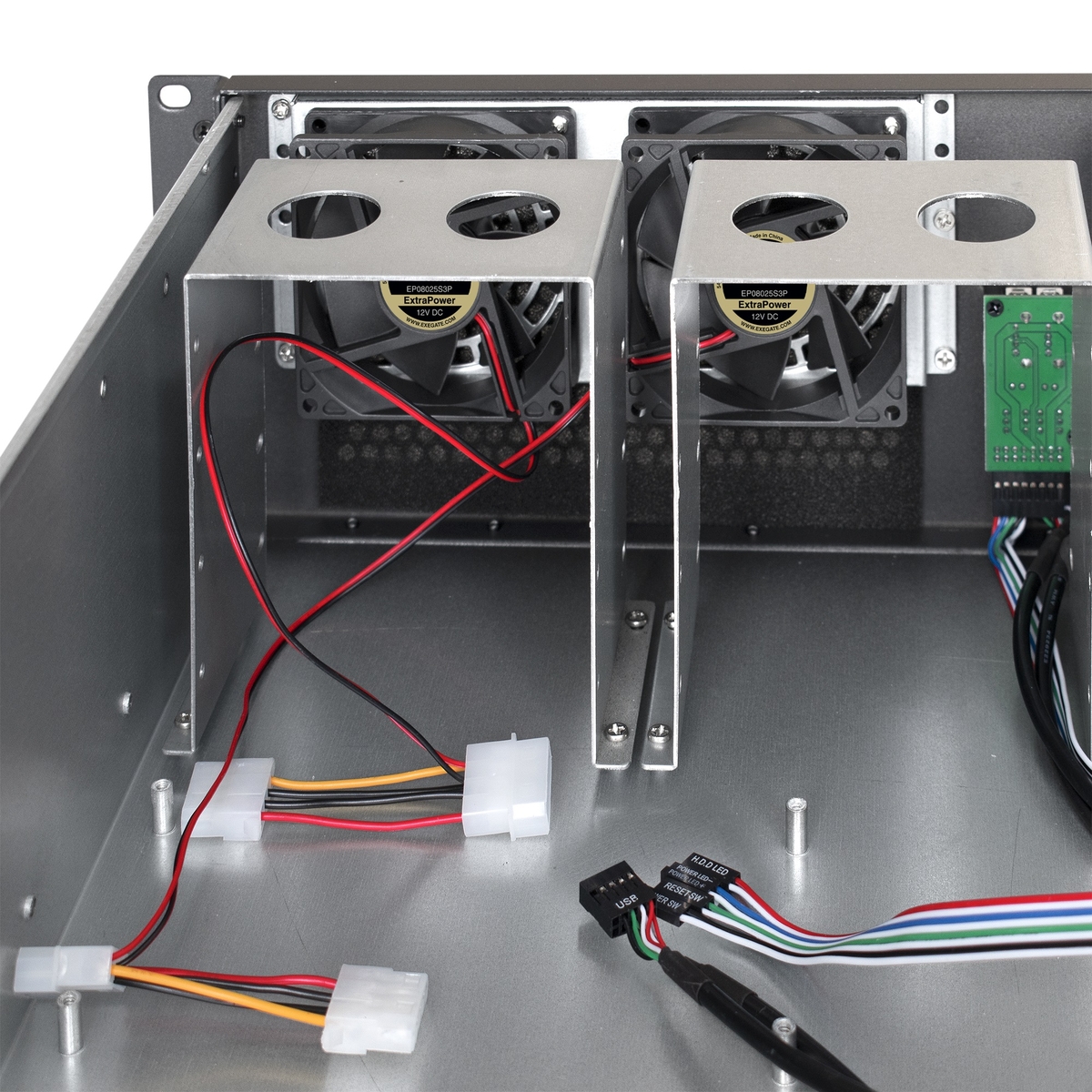

| Installed fans | 2 x 8 cm in the front panel |

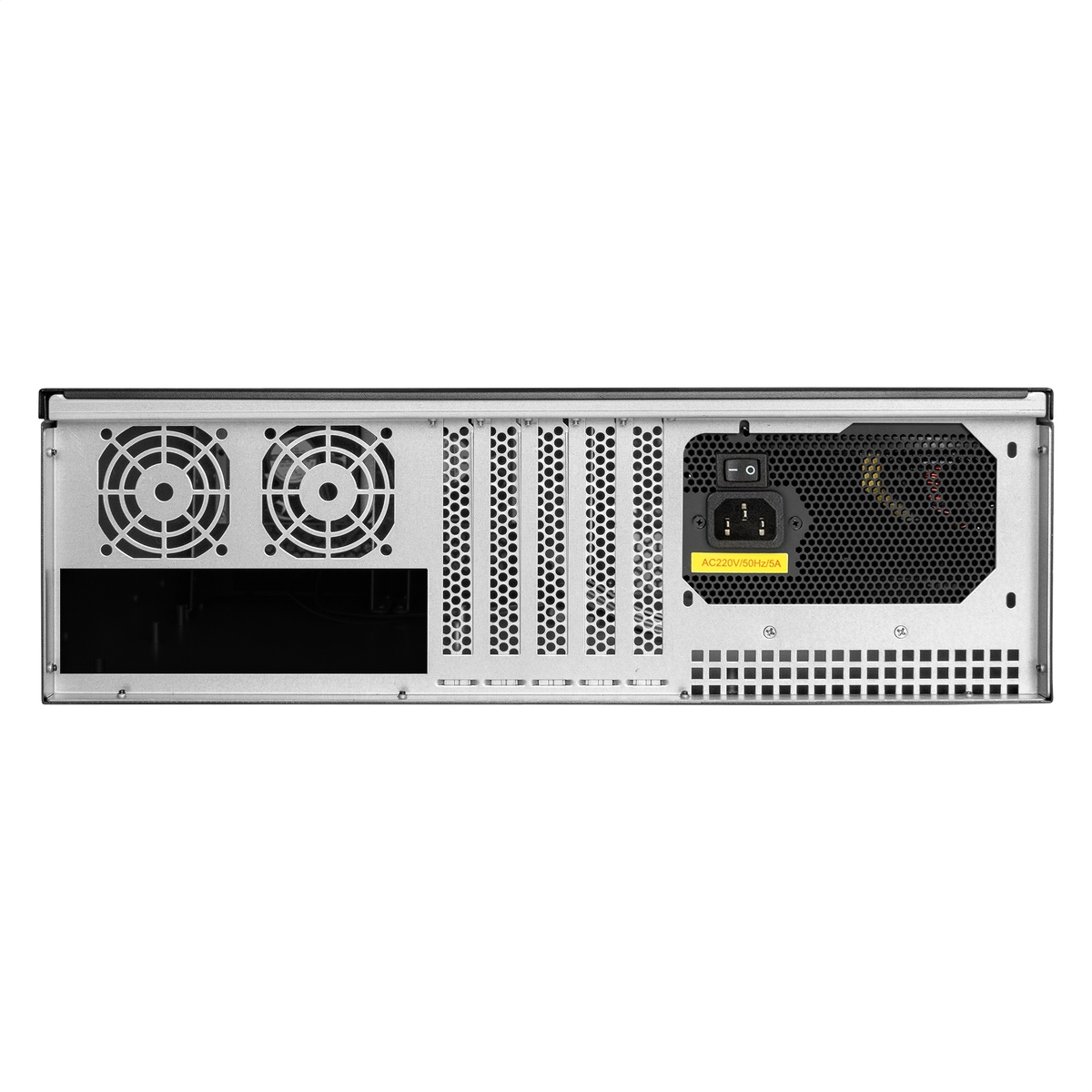

| Places to install additional fans | 2 x 6 cm in the rear panel |
| Recommended ExeGate fans | ES06025S3P |
| Other parameters | |
| Maximum height of the CPU fan, mm | 100 |
| Maximum length of the video card, mm | 230 |
| The maximum length of the video card with HDD opposite, mm | 170 |
| Chassis size (D x W x H), mm | 390 x 430 x 133 |
| Size with handles and ears (D x W x H), mm | 425 x 483 x 133 |
| GW, kg | 8,58 |
| Dimensions (D x W x H), mm | 550 x 520 x 230 |
