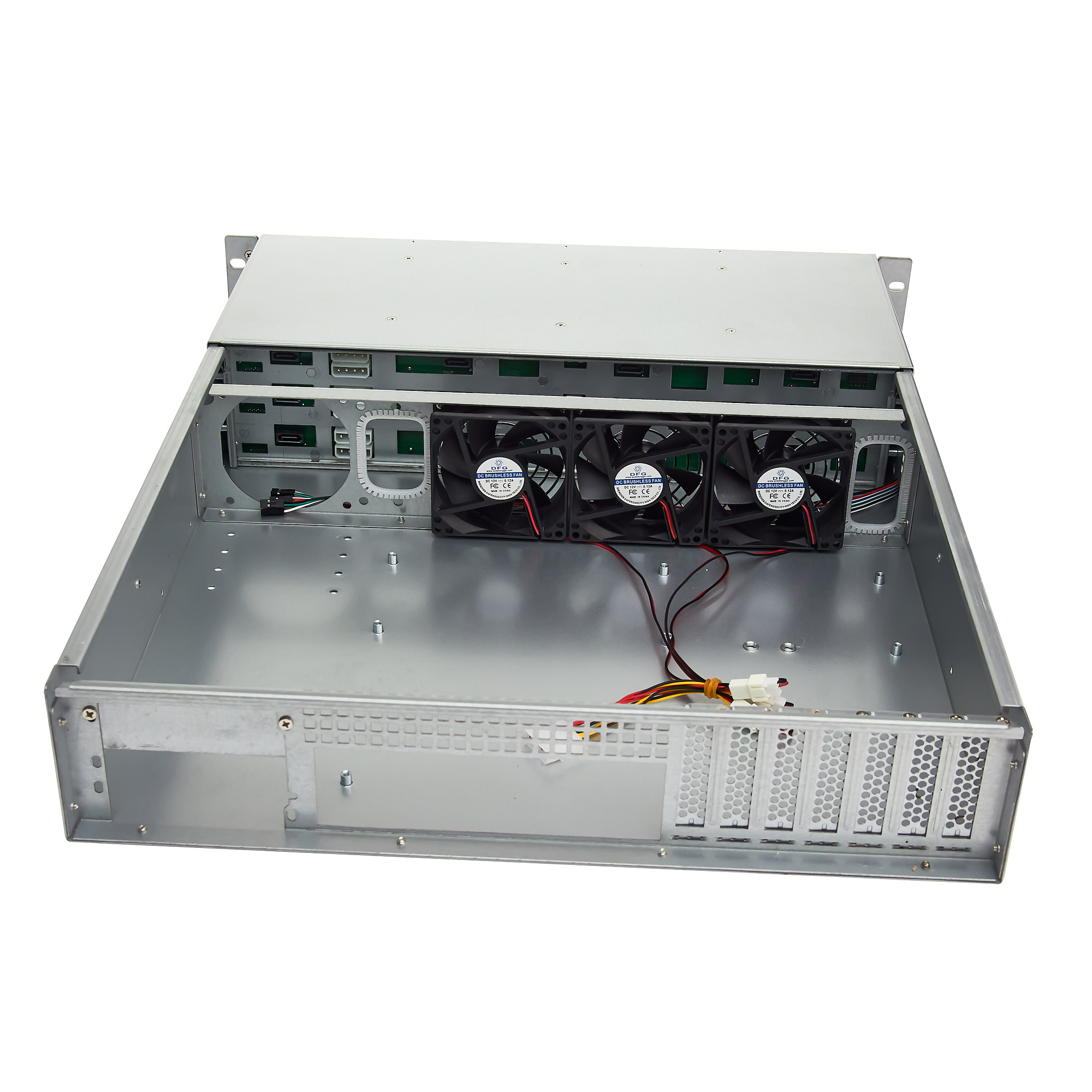

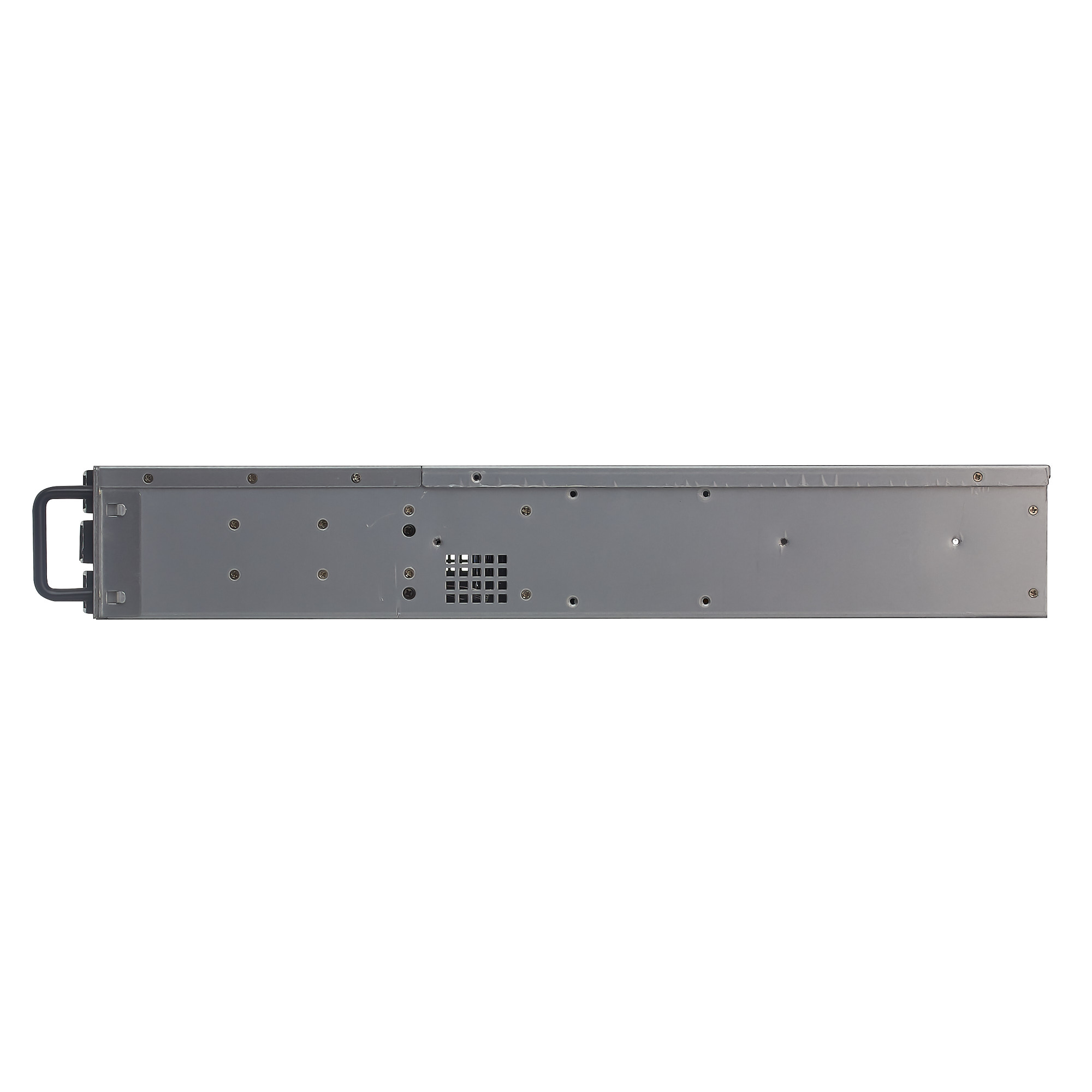

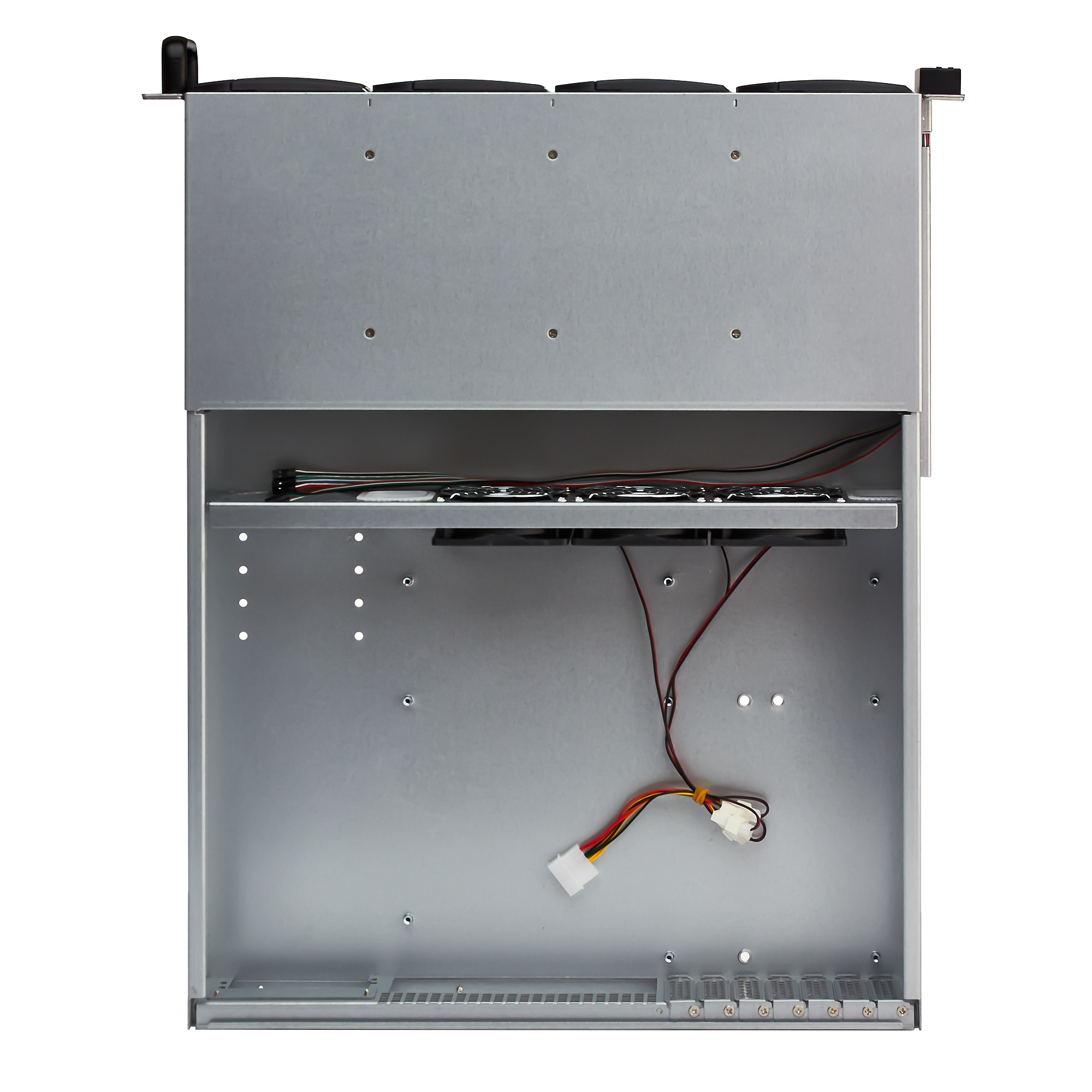

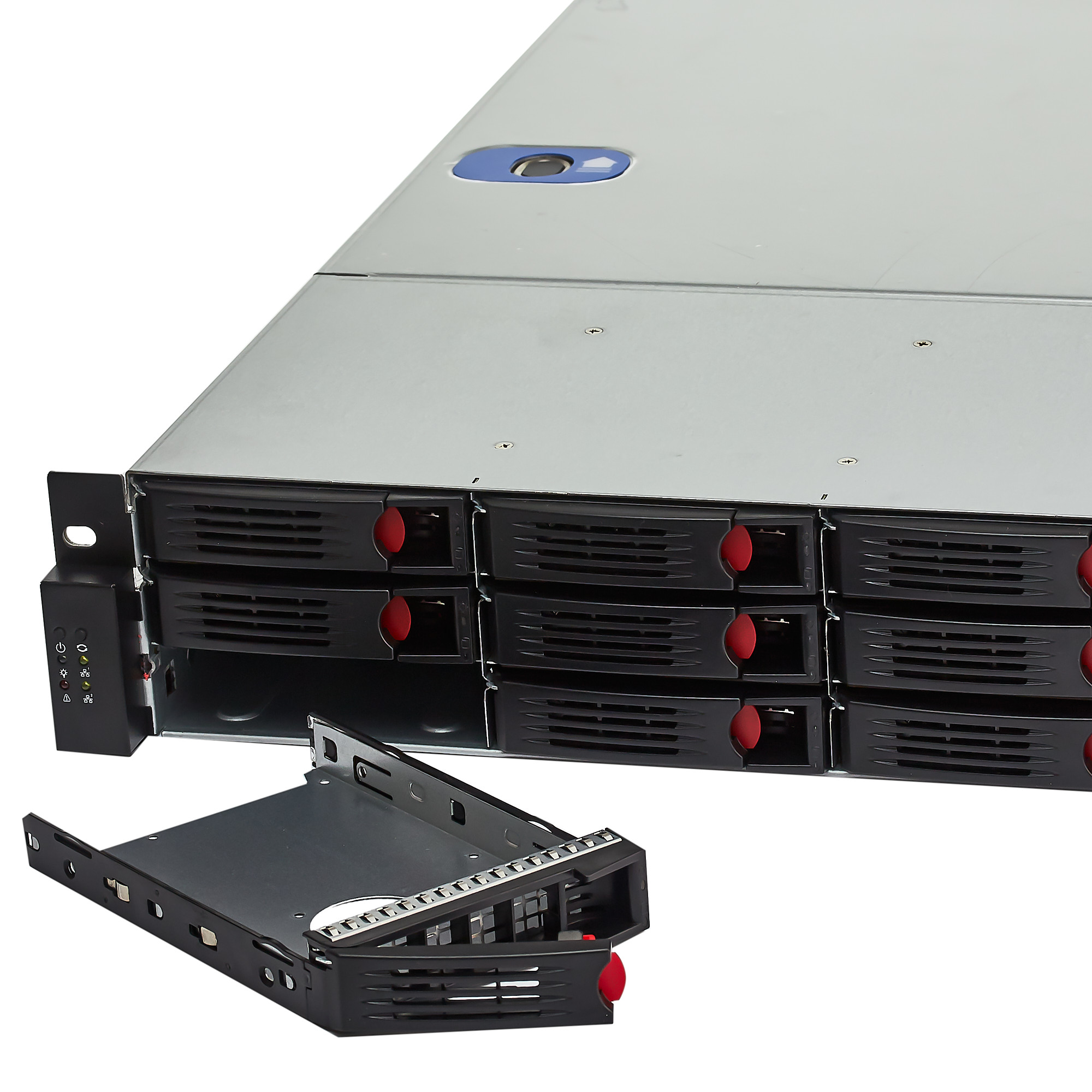

2U550-HS12

Specification

Type	2U
Motherboard Support	ATX
Max. motherboard size, mm	305 x 244
Drive Bay:
Ext. 3.5" Hot Swap	12
Control & indicator, LED	Power, HDD, 2 x NIC, Status LED
Switch	POWER, RESET
Expansion Slots	7
3 x 8 cm (4with extra place 1 x 8 cm) in the middle frame
Recommended ExeGate PSU	1UFlex/1U
Max. height of the CPU fan, mm	65
Max. PSU length, mm	260
Max. PSU with opposite drive bay length, mm	100
Max. SVGA length, mm	260 (only using a low-profile SVGA)
Chassis material	1,2 steel
Cases color	Black
Chassis color	Silver
Dimensions chassis (D x W x H), mm	550 x 431 x 89
Dimensions (D x W x H), mm	583 x 483 x 89
Net Weight w/o PSU / with PSU, kg	12,8 / 13,2
