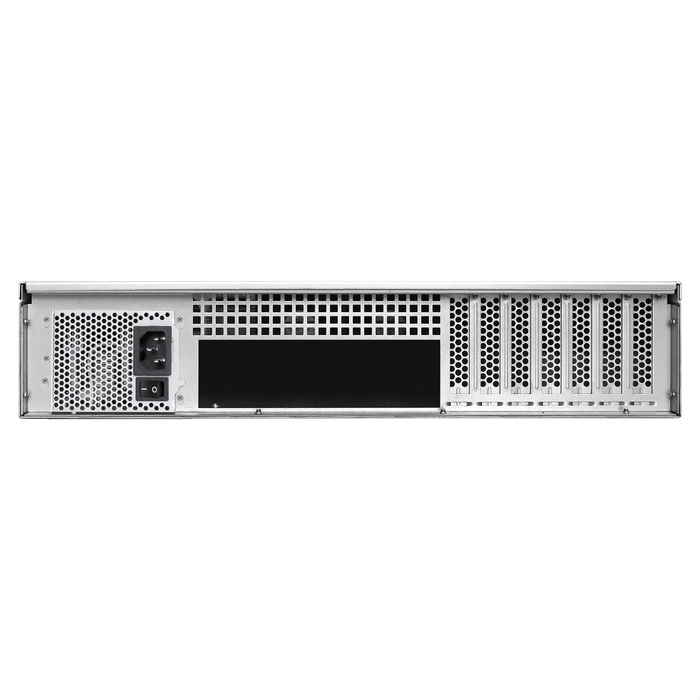

Server case ExeGate Pro 2U660-HS08/2U-700ADS

Specification

Height	2U
Supported MB formats	mini ITX, mini DTX, mATX, ATX, SSI CEB, E-ATX/SSI EEB
Front panel material	Steel
Chassis material	Steel
Material Thickness, mm	1,2
Cases color	Black
Chassis color	Silver
Power
PSU models	ExeGate ServerPRO-2U-700ADS
PSU, W	700
Max. PSU number	1
Construction
HotSwap	8 x 3,5"/2,5" Backplane power connectors Molex Backplane interface connectors - SATA
External Drive Bay 5,25"	1 for Slim-DVD drive
Hot Swap baskets support formats	SAS 6Gbps and SATA I/II/III
Internal Drive Bay 3,5"	1
Internal Drive Bay 2,5"	2 (instead of 1x3,5")
Front I/O Ports	2 x USB 2.0
Control & Indicator, LED	1 x Power, 1 x HDD, 2 x NIC, Status LED
Switch	POWER, RESET
Expansion Slots	7
Cooling System
Installed fans	3 x 8 cm in the middle frame
Other parameters
Maximum height of the CPU fan, mm	65
Maximum length of the power supply unit, mm	320
Maximum length of the video card, mm	330 (low-profile graphics card only)
Chassis size (D x W x H), mm	670x430x90
Size with handles and ears (D x W x H), mm	710x480x90
Net Weight, kg	12,4
GW, kg	16,3
Dimensions (D x W x H), mm	840x580x210
