550W ExeGate M550 GOLD
PSU for industrial use
The highest reliability of ExeGate power supplies is due to the use of high-quality components. In particular, Taiwan-made high-voltage capacitors with a maximum allowable temperature of 105 °C. are used. The ATX format adapter frame is included.
SpecificationThe highest reliability of ExeGate power supplies is due to the use of high-quality components. In particular, Taiwan-made high-voltage capacitors with a maximum allowable temperature of 105 °C. are used. The ATX format adapter frame is included.
| Power | |
| Form-factor | SFX 12V |
| AC input, V | 115-253 |
| Max. Output Capacity, W | 550 |
| General characteristics | |
| Cable management | Yes |
| PFC | Active |
| MTBF, HRS | 100000 |
| Input current, A | 8 |
| Input Frequency Range, Hz | 47-63 |
| Maximum Efficiency (Efficiency), % | 90 (80 PLUS GOLD) |
| Cooling | |
| FAN, cm | 9 |
| Bearing type | Hydraulic Bearing |
| Noise Level, dBA | 43 |
| Input Voltage: | |
| +3.3V, A | 15 |
| +5V, A | 18 |
| +12V, A | 45,8 |
| -12V, A | 0,3 |
| +5Vsb, A | 3,0 |
| Max Output Power: | |
| +3.3V&5V, W | 120 |
| +12V, W | 550 |
| -12V, W | 3,6 |
| +5Vsb, W | 15 |
| Connectors: | |
| 24 pin ATX | 1 |
| (4+4) pin CPU | 1 |
| SATA | 6 |
| IDE (Molex) | 3+1FDD |
| (6+2) pin PCI-E | 2 |
| Other parameters | |
| Protection | SCP; OVP; UVP; OCP; OPP/OLP; OTP |
| Quality Certificates | CE, FCC, CB, UL, TUV, BSMI, CCC, EAC |
| Operating temperature range, °C | 0-40 |
| Storage Humidity, % | 20-90 |
| Color | Black |

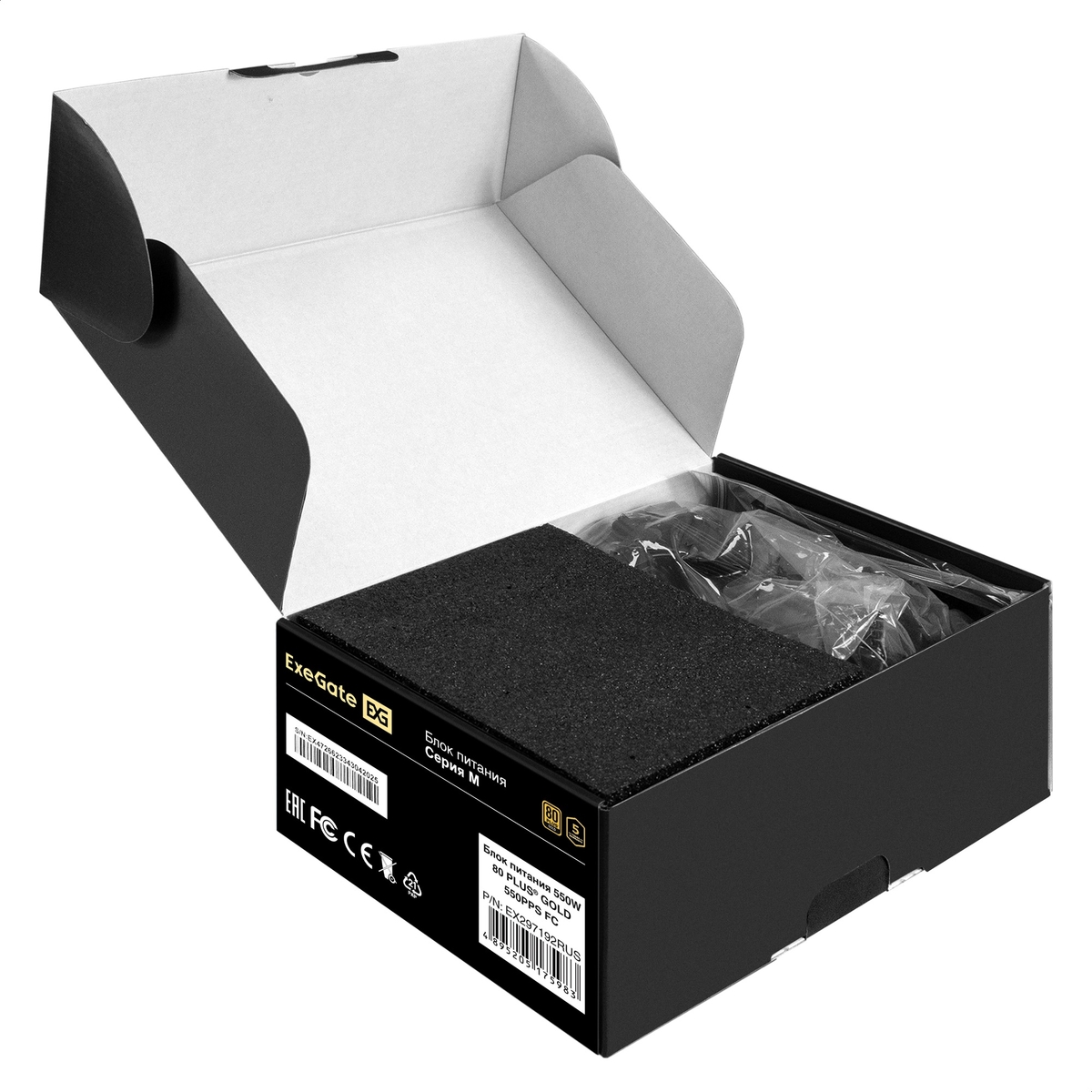

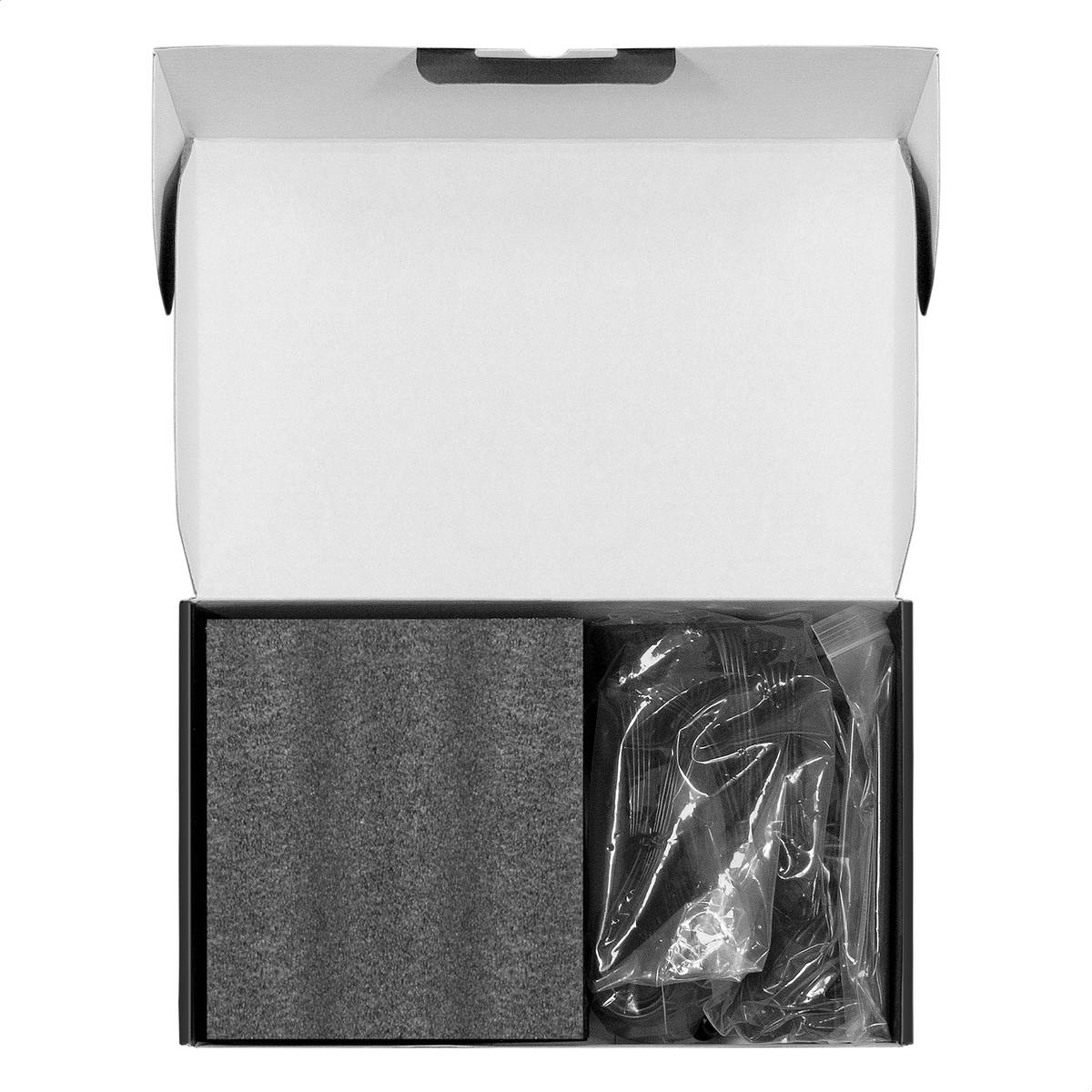

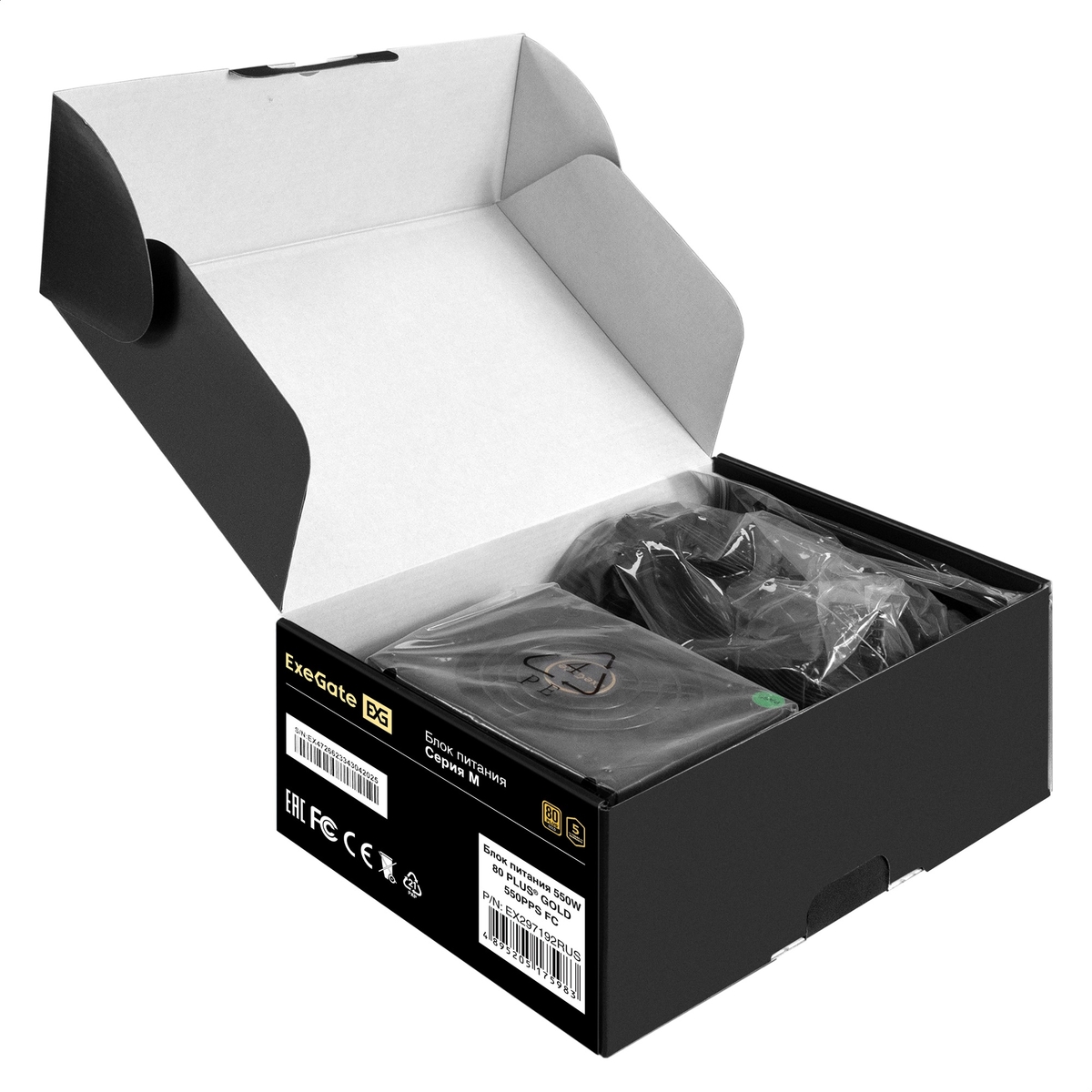

| Delivery set | PSU, cable management set, ATX format adapter frame, 220V power cable, ties, screws and manual. |
| Dimension (W x H x D), mm | 125x65x100 |
| GW, kg | 1,5 |
| P/N | EX297192 |
| EAN | 4895205175983 |
