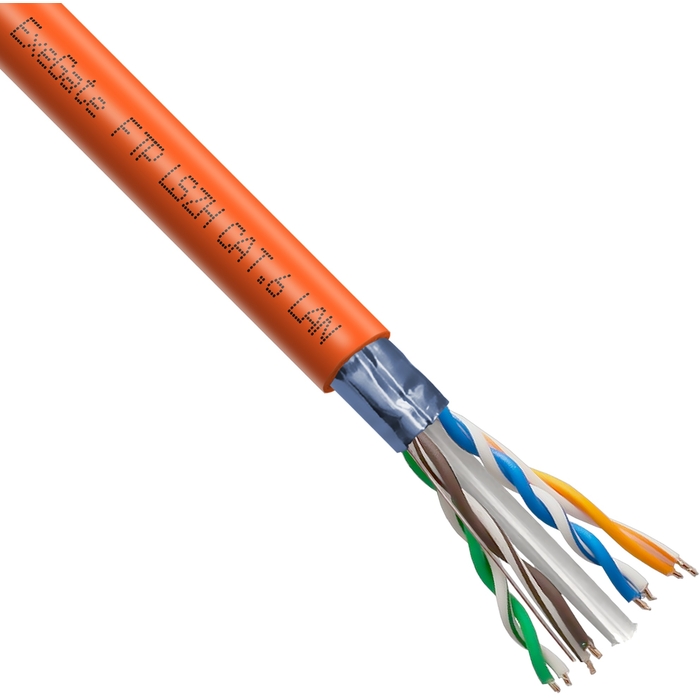

Cable ExeGate FUTP4-C6-CU-S23-IN-LSZH-OR-305-FLUKE FTP
Inside the premises. Construction of backbone and horizontal subsystems of structured cabling systems of category 6 in conditions of minor electromagnetic interference. Transmission of 1 Gbit/s signals in the frequency range up to 250 MHz at a speed of up to 10 Gbit / s over a distance of up to 55m.
Transmission of 1 Gbit/s signals at a frequency of up to 100 MHz. with speeds up to 100 Mbit / s when using 2 pairs and up to 1000 Mbit / s when using 4 pairs.
SpecificationTransmission of 1 Gbit/s signals at a frequency of up to 100 MHz. with speeds up to 100 Mbit / s when using 2 pairs and up to 1000 Mbit / s when using 4 pairs.
| Type | FTP |
| Appointment | Suitable for indoor use |
| Length, m | 305 |
| Industry Standards | 6 |
| Number of Pairs | 4 |
| Wire Gauge, AWG | 23 |
| Threads | Solid |
| Material | Copper |
| Shielding | Shielded (FTP) |
| Packaging | Pullbox |
| Jacket material | LSZH (low smoke emission, zero halogen content) |
| Color | Orange |
| Conformity to standards | Comply with 5 / Class D and ISO/IEC 11801, IEC 61156(2009), EN 50173, TIA/EIA 568-B. 2 standards |
| Installation temperature, °C | -10 … +50 |
| Max operating temperature, °C | 75 |
| Min operating temperature, °C | -40 |
| Product size, cm | 38,5x38,5x24,5 |
| Weight, kg | 12,5 |
| P/N | EX289279 |
| EAN | 4895205127555 |
