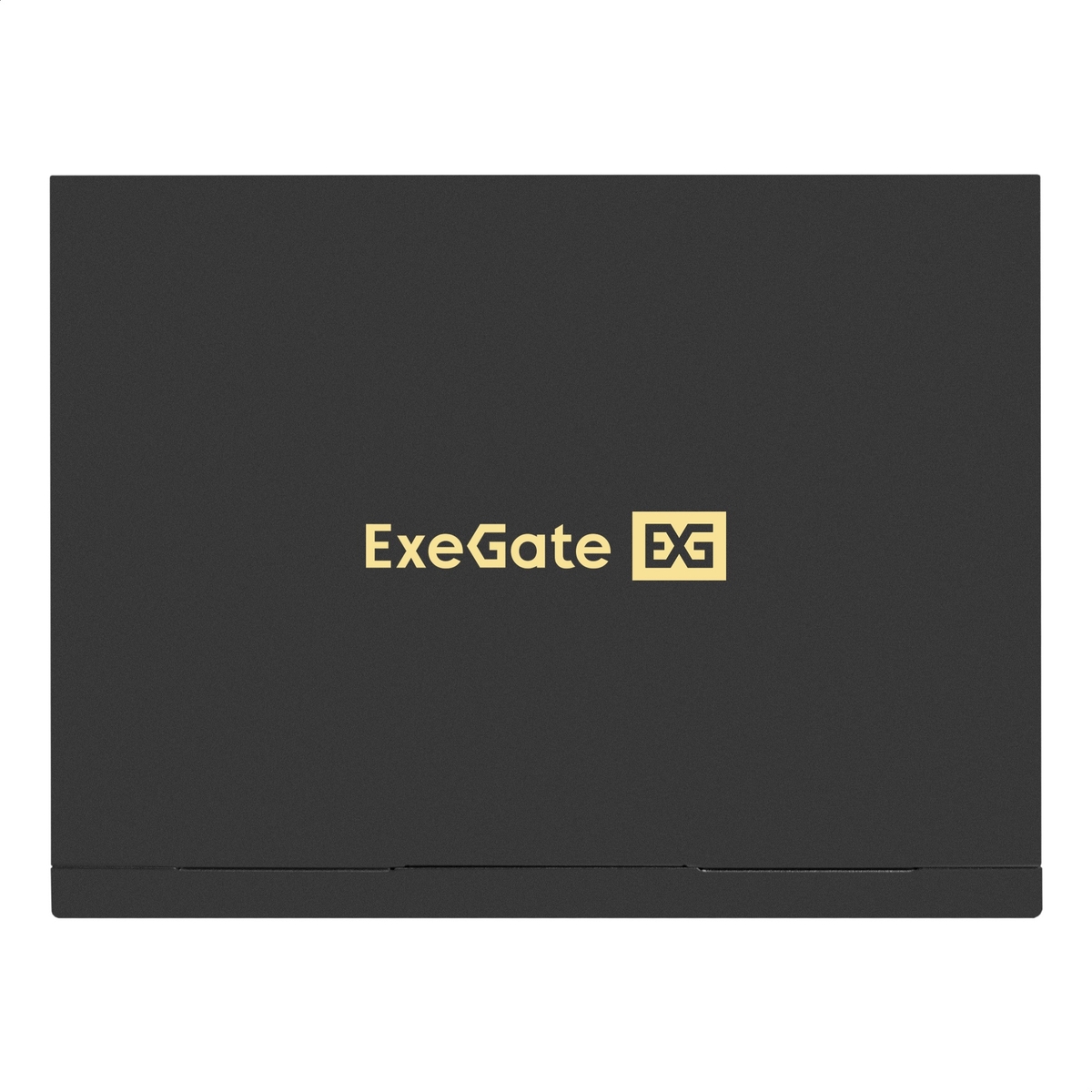

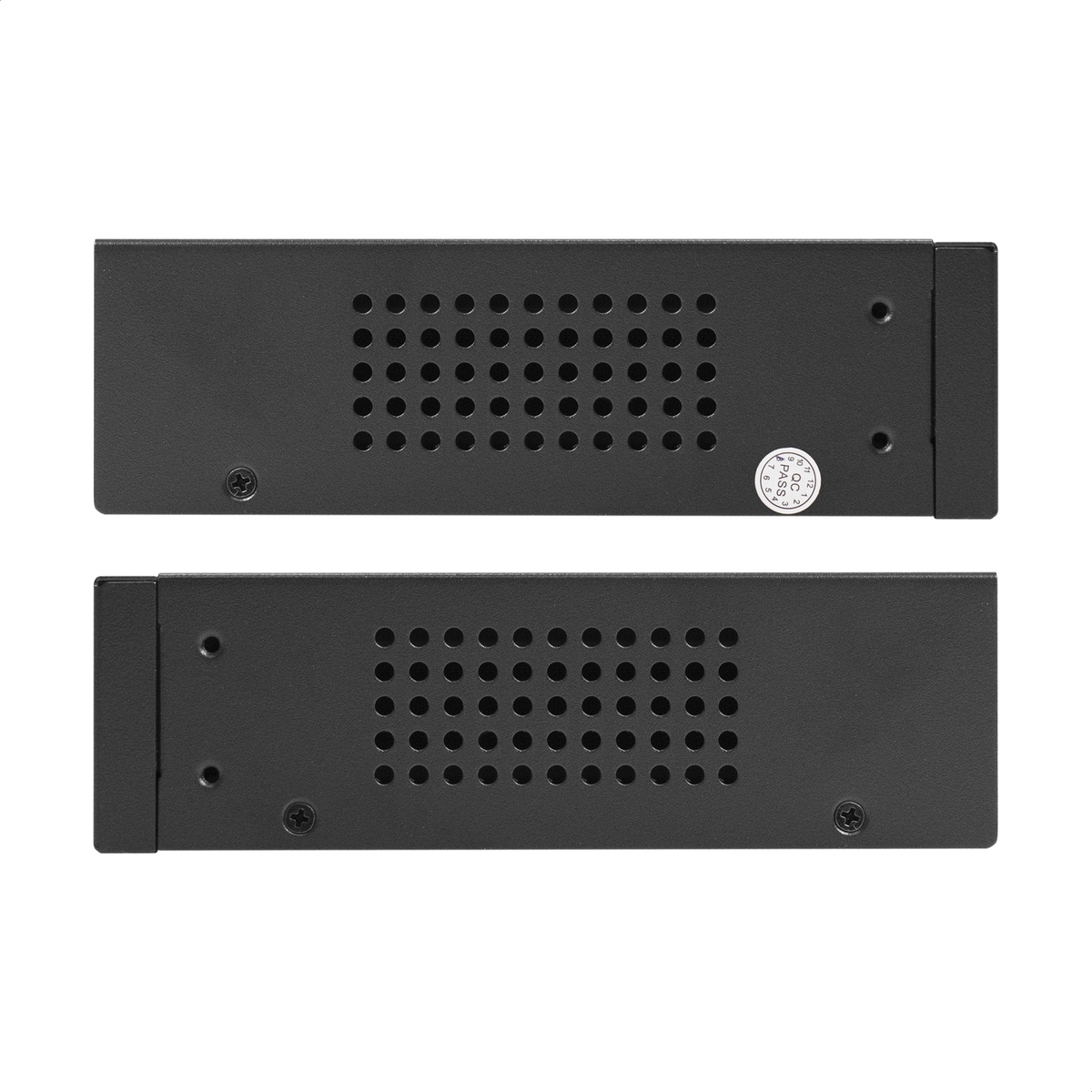

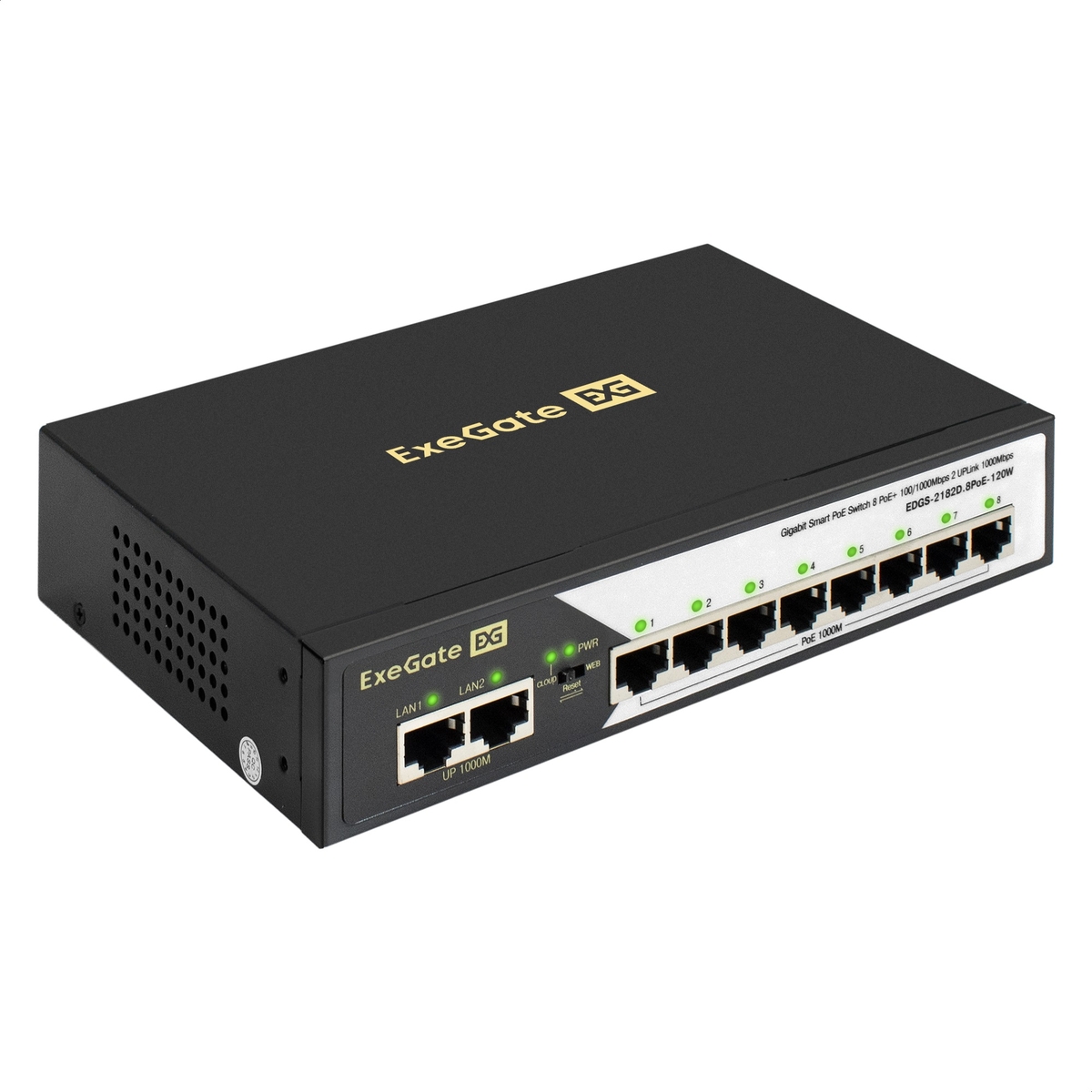

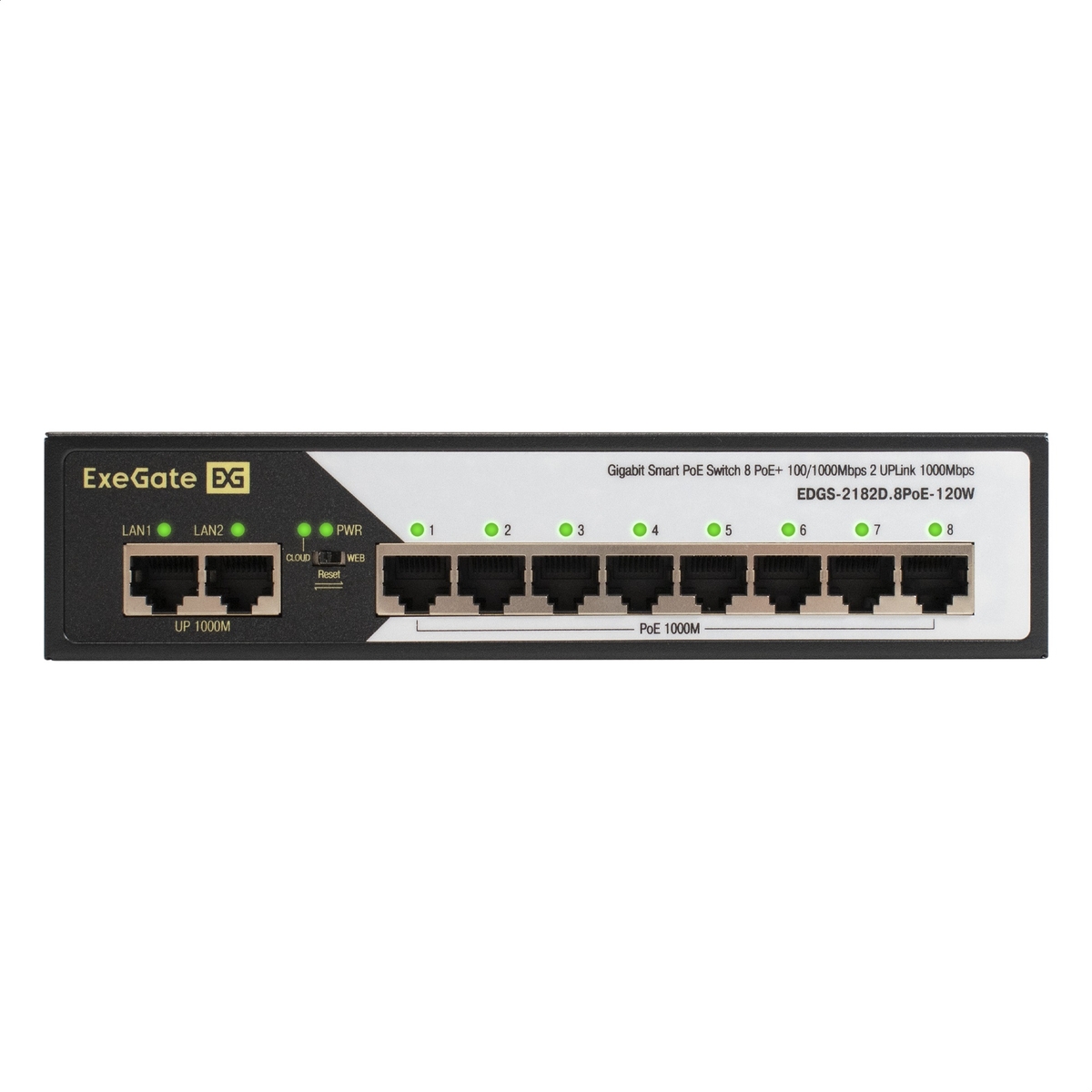

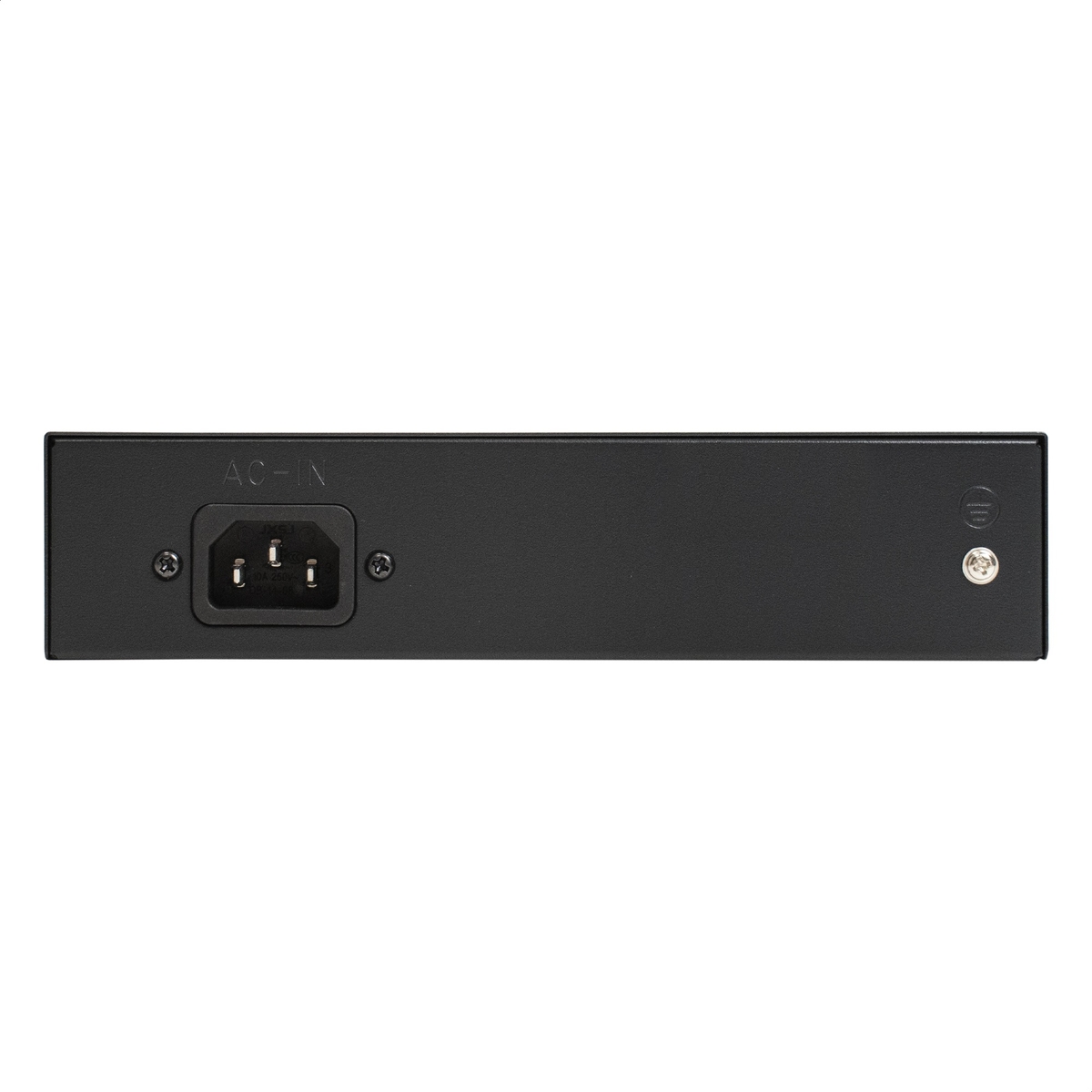

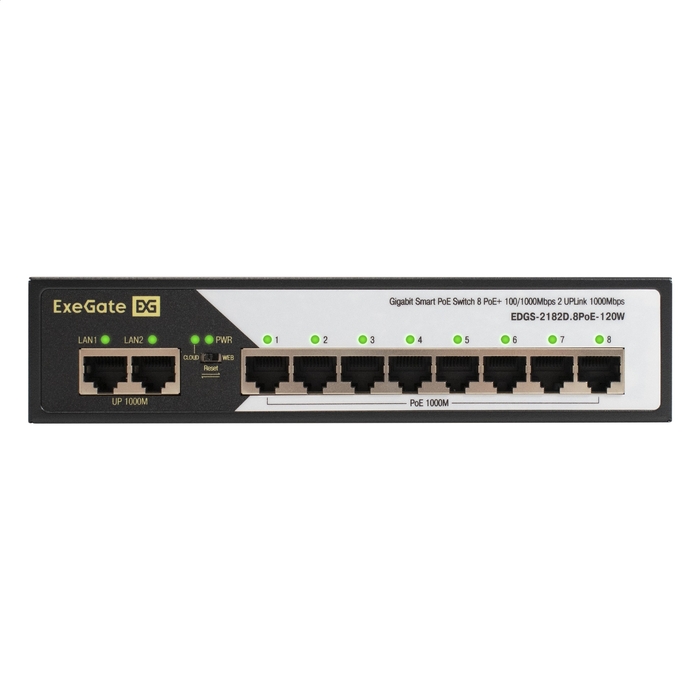

ExeGate EDGS-2182D.8PoE-120W Managed Layer 2 Switch
The ExeGate EDGS-2182D.8PoE-120W Layer 2 Managed Switch is designed to connect devices within a local area network (LAN) and provide centralized network management. It is equipped with 8 PoE+ ports 1000Base-T and 2 ports uplink 1000Base-T. The switch provides flexible network configuration, supports Virtual Local Area Networks (VLANs), Quality of Service (QoS), device monitoring, access control, and loop prevention. It supports remote management via a web-based interface and/or CLI (Command Line Interface).
Centralized network management. Remote management via the WEB interface and/or CLI. VLAN support for network segmentation. QoS support for prioritizing network traffic. Monitoring the device status and network ports. Security and access control tools. Flexible configuration of network parameters. High performance and reliable operation. The ability to update the embedded software.
SpecificationCentralized network management. Remote management via the WEB interface and/or CLI. VLAN support for network segmentation. QoS support for prioritizing network traffic. Monitoring the device status and network ports. Security and access control tools. Flexible configuration of network parameters. High performance and reliable operation. The ability to update the embedded software.
| Interface | 8 ports 1000Base-T+2 ports uplink 1000Base-T |
| LED Indicators | Power; Link/Activity |
| Material | Metal |
| Mounting | Desk+Wall |
| IEEE Standards | IEEE802.3, EEE802.3i, EEE802.3u, IEEE802.3ab, EEE802.3af, IEEE802.3at, EEE802.3x |
| Support | Supports VLAN (802.1Q, Voice VLAN, Surveillance VLAN), QoS, and ACL; supports LACP and static Link Aggregation, STP/RSTP/MSTP; supports IGMP Snooping, MLD Snooping, and multicast; supports 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Port Security, and DoS attack protection; supports port mirroring, management via Web, CLI, SNMP, SSH, and Telnet, as well as network diagnostics (Ping, Traceroute, and cable testing). |
| Type | Managed |
| Switch level | Layer 2 |
| PoE+ support ports | 8 |
| Total power budget | 120W |
| Power budget per port | 30W |
| Uplink ports | 2 |
| 10/100/1000BASE-T ports | 8 |
| Switching Capacity | 20Gbps |
| Transfer method | Store-and-forward |
| MAC Address | 2K |
| MAC Address learning and aging | Automatic |
| Buffer Memory | 2Mbit |
| Jumbo Frames | 9216 bytes |
| Port Mirroring | Yes |
| Access Control(ACL) | Yes |
| QoS | Yes |
| VLAN | Yes |
| DHCP Snooping | Yes |
| DHCP attack protection | Yes |
| Cooling system | Passive |
| Power | AC 100–240V, 50/60Hz, DC52V 2.4A |
| Usage conditions | |
| Storage Temperature | -40 ... +70 °C |
| Operating Temperature | 0 ... +40°C |
| Storage humidity | 5% ... 90% non-condensing |
| Operating humidity | 10% ... 90% non-condensing |
| Network media | 1000Base-TX:4 pairs of Cat5e or UTP/STP(up to and including 100 m); 100Base-TX:2 pairs of Cat5e o rUTP/STP(up to and including 100 m); 10Base-TX:2 pairs of Cat5e or UTP/STP(up to and including 250m) |
| Other | |

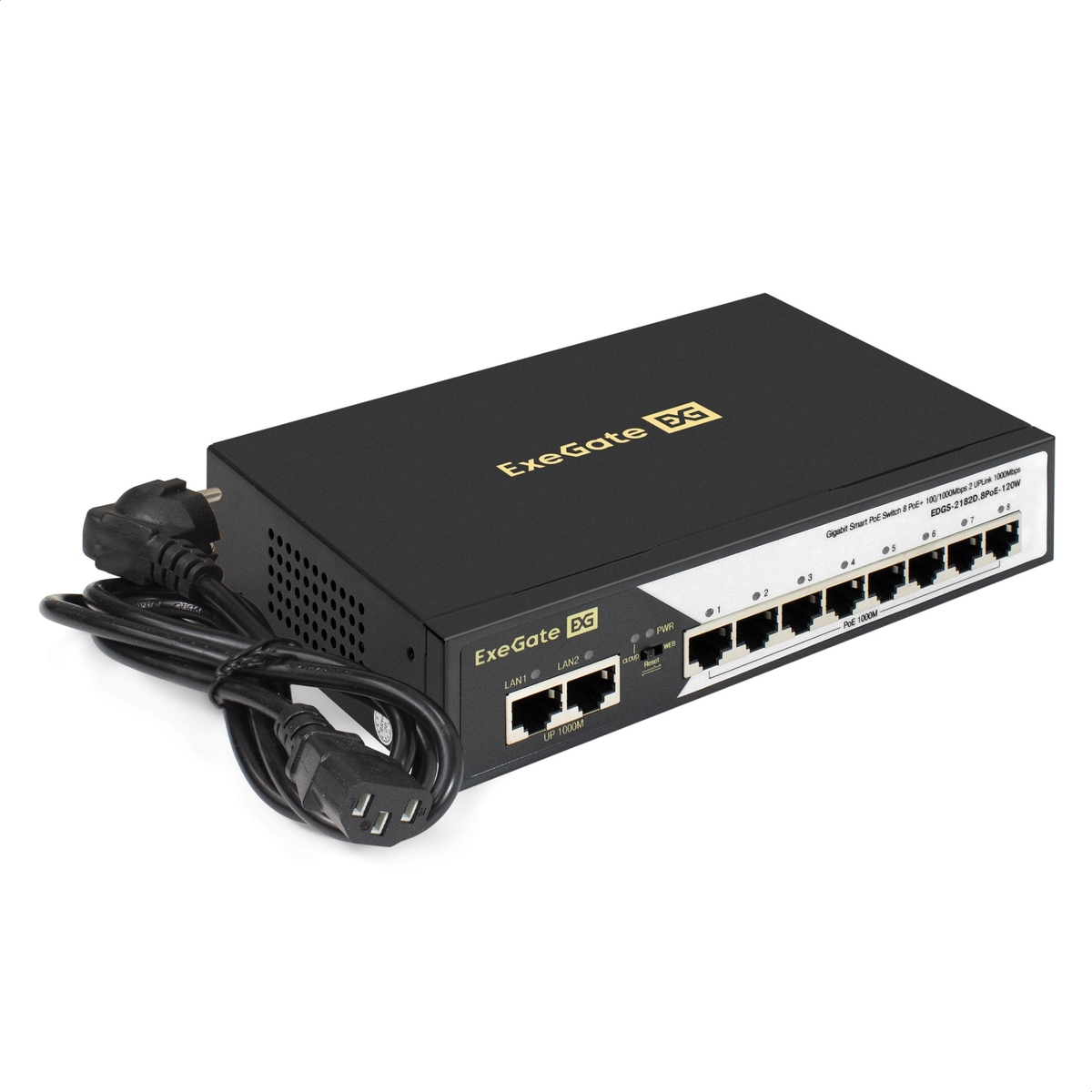

| Delivery set | Device, power cable, manual |
| Product size (W x H x D), mm | 190x140x43 |
| Net weight, kg | 0,95 |
| P/N | EX301542 |
| EAN | 4896034000064 |
