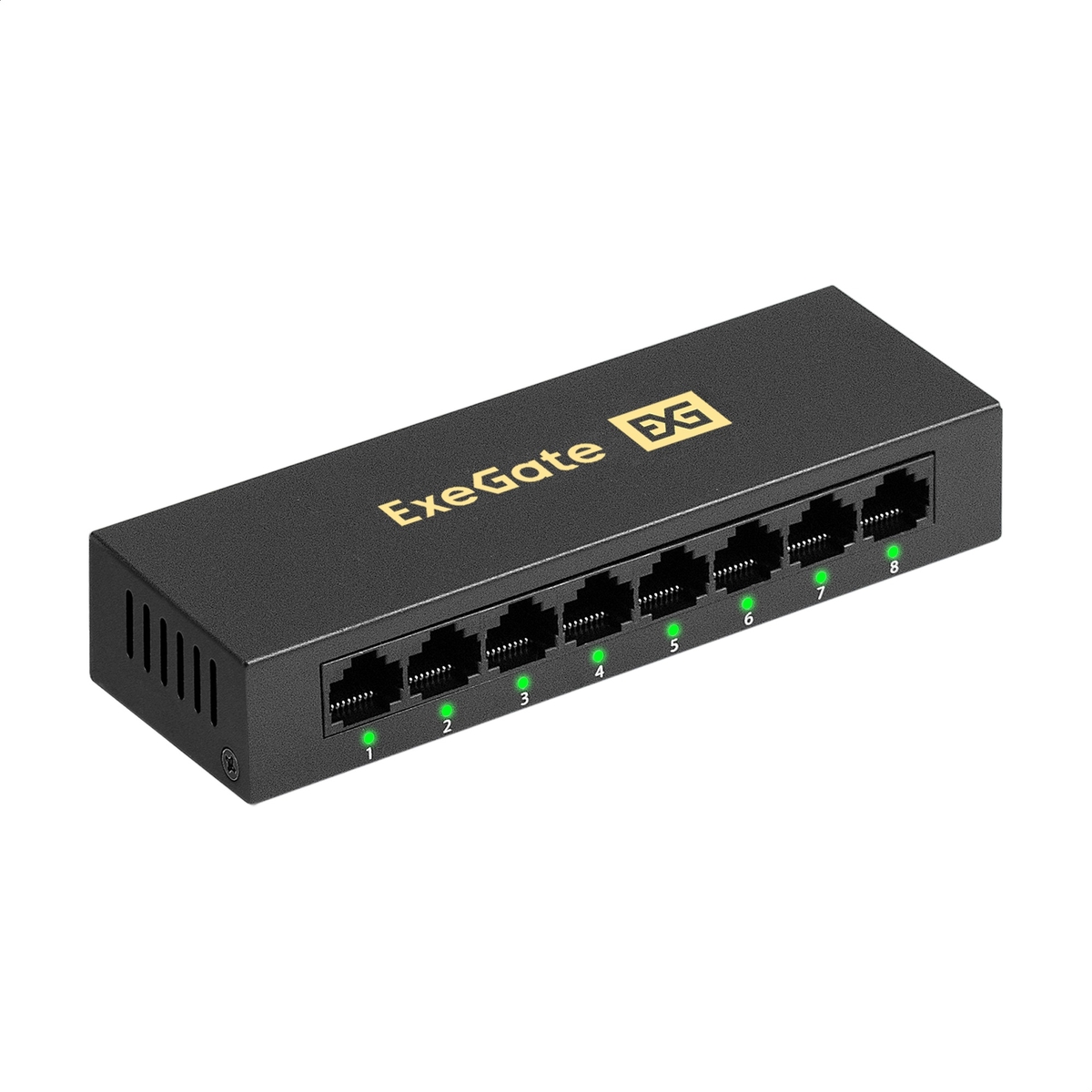

Unmanaged Switch ExeGate EDES-1008D
The Layer 2 EDES-1008D unmanaged switch is designed to connect multiple computer network nodes within one or more network segments. This switch has 8 ports with a speed of 100 Mbps. Silent (fanless) design – works quietly, ideal for offices and rooms requiring low noise levels.
Compact design for easy placement. Plug and Play support, no additional configuration required. With power saving function EEE (energy efficient ethernet technology)
SpecificationCompact design for easy placement. Plug and Play support, no additional configuration required. With power saving function EEE (energy efficient ethernet technology)
| Interface | 8 ports 10/100 Mbps |

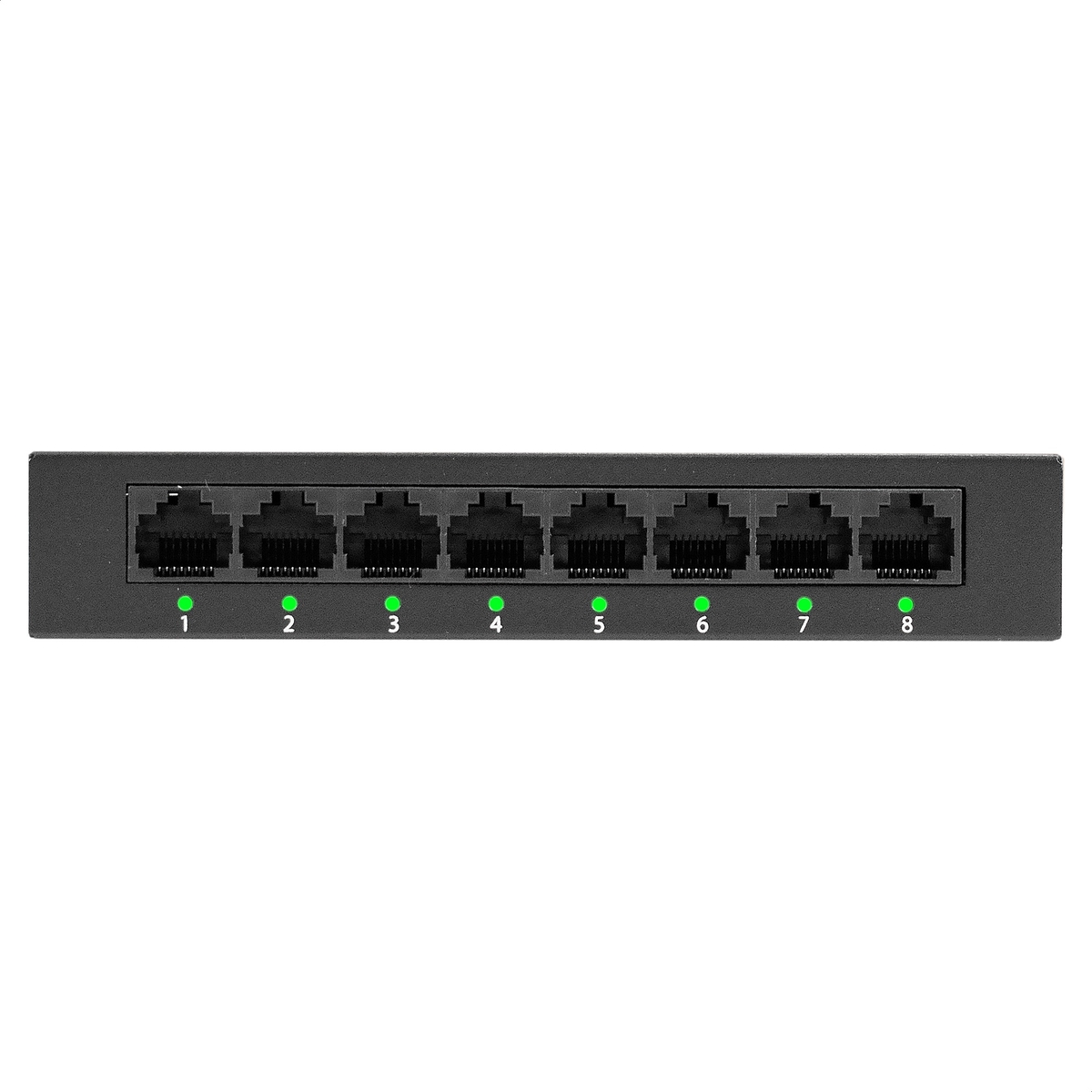

| LED Indicators | Link/Activity |
| Material | Metal |
| Mounting | Desk+Wall |
| IEEE Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, |
| IEEE802.3az | |
| Support | Automatic speed and duplex mode negotiation; IEEE 802.3x flow control; Automatic MDI/MDIX detection on all ports |
| Type | Unmanaged |
| Switch level | Layer 2 |
| 10/100BASE-TX ports | 8 |
| Switching Capacity | 1.6Gbps |
| Transfer method | Store-and-forward |
| MAC Address | 1K |
| MAC Address learning and aging | Automatic |
| Buffer Memory | 570K |
| Jumbo Frames | 4076 |

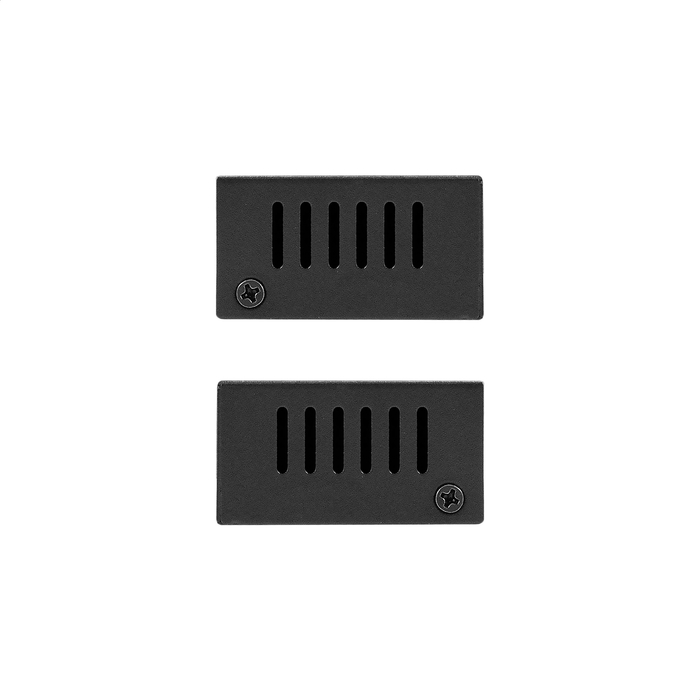

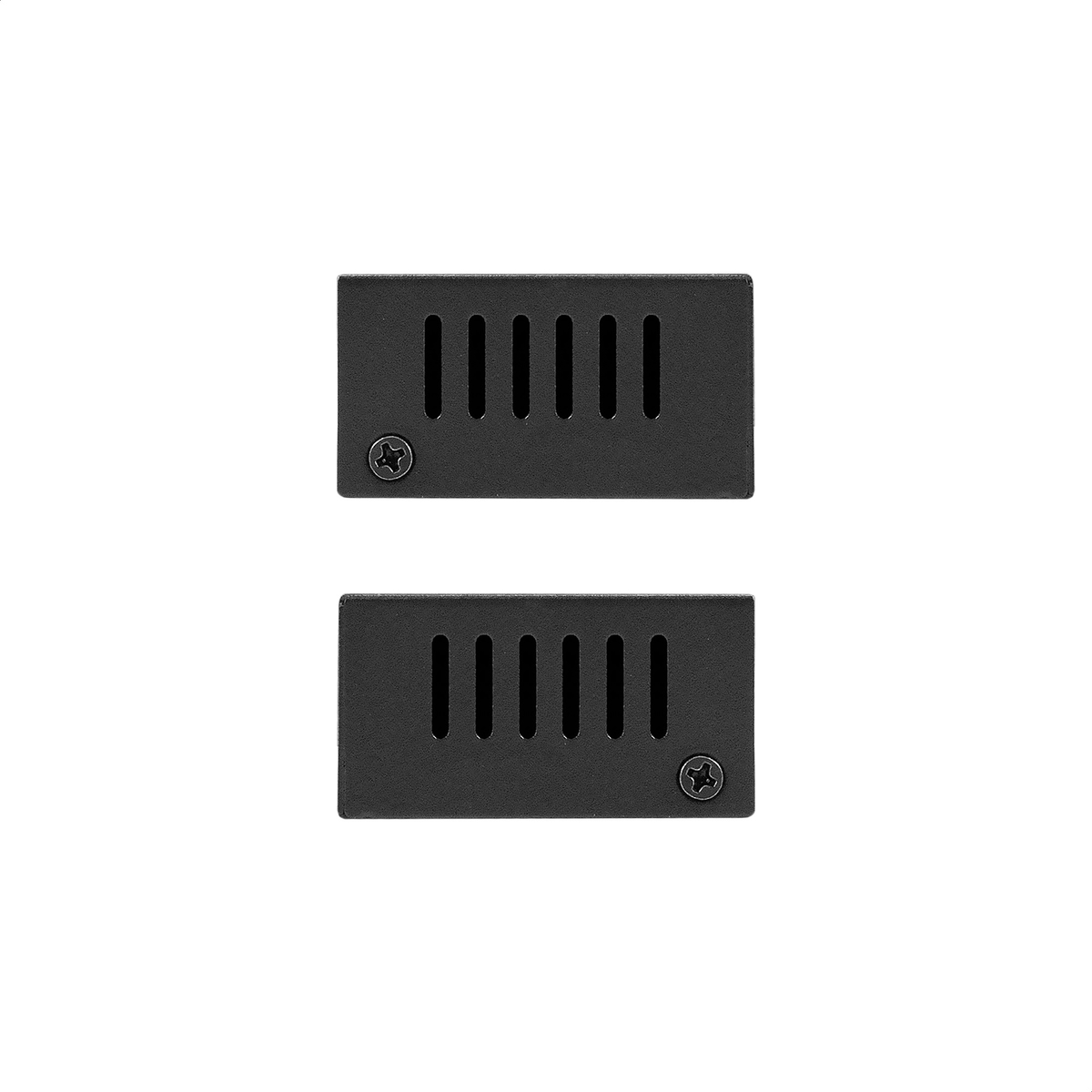

| Cooling system | Passive |

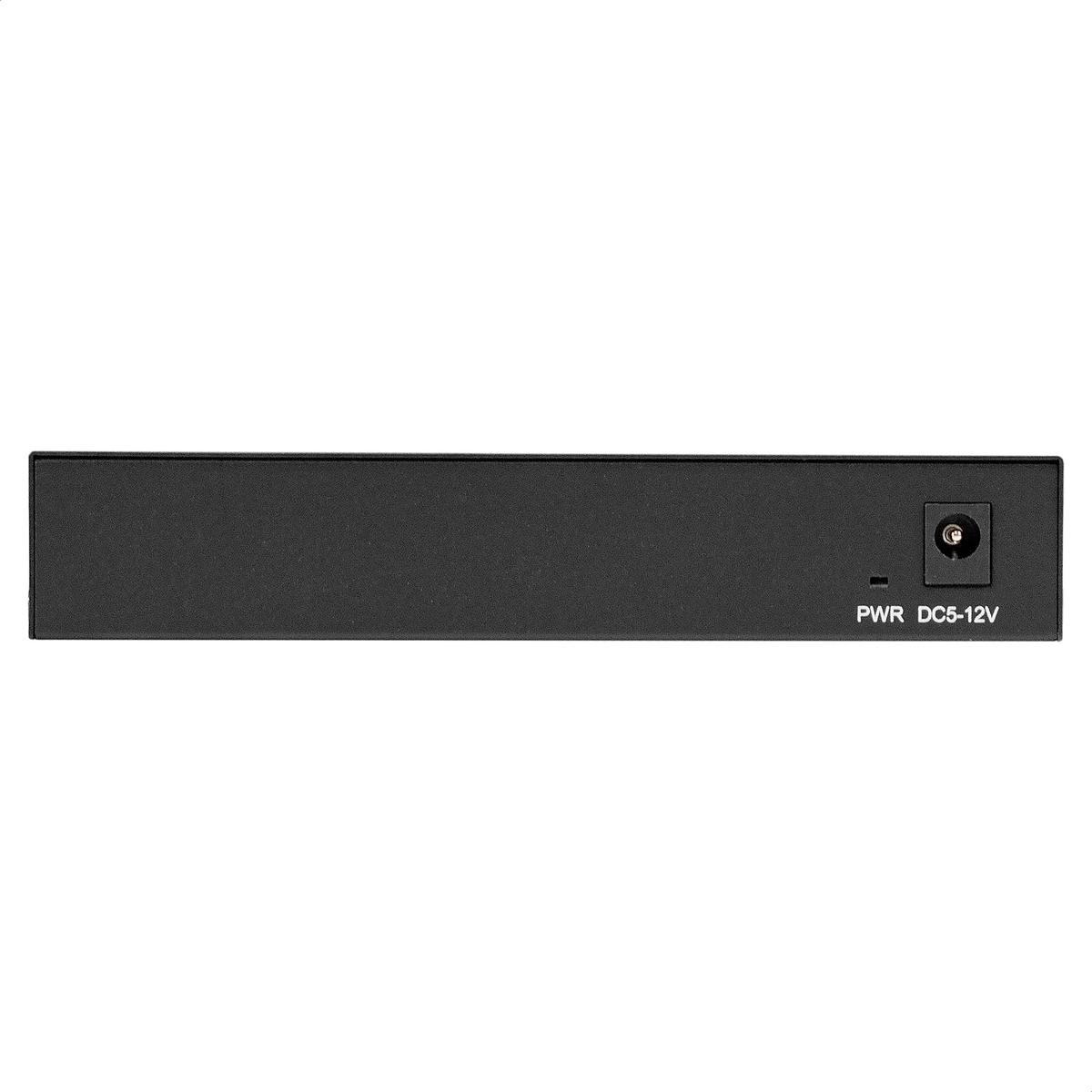

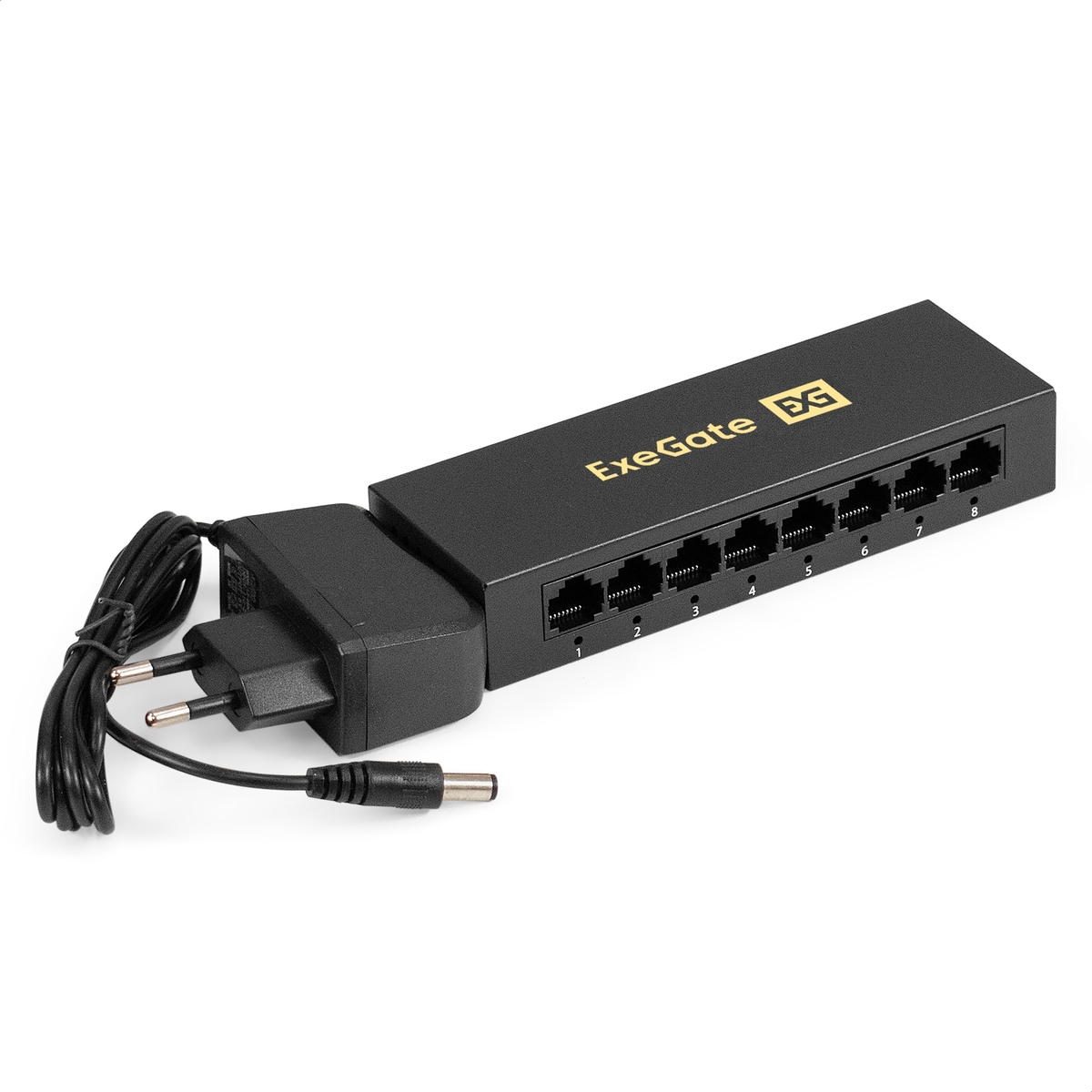

| Power | DC5-12V 0.5A 50/60HZ |
| Usage conditions | |
| Storage Temperature | -40 ... +80 °C |
| Operating Temperature | -20 ... +50 °C |
| Storage humidity | 5% ... 90% non-condensing |
| Operating humidity | 10% ... 90% non-condensing |
| Network media | 10Base-T: UTP cat.3 or better; 100Base-TX: UTP cat. 5 or better |
| Other | |
| Product size, mm | 140x48x25 |
| Net weight, kg | 0,3 |
| Instruction |  Download |
| P/N | EX298690 |
| EAN | 4895205184282 |
