Products / Cables / Power Cable / C13 - 90 degree angle Schuko

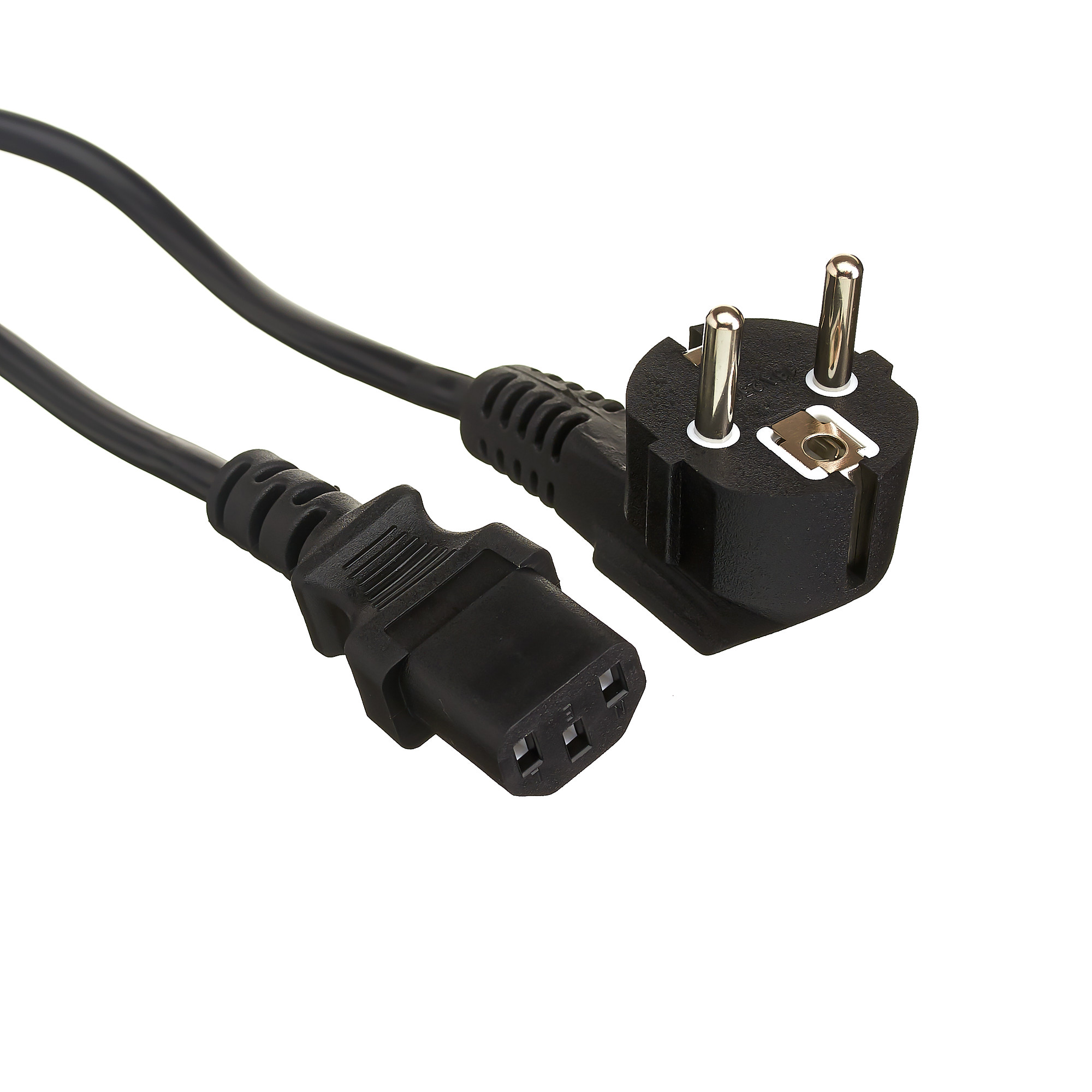

C13 - 90 degree angle Schuko

Specification

Destination Power cord
Plug type(M) 90 degree angle europlug Schuko
Plug type (F) IEC 320 C13
Number of wire 3
Rated voltage, V 230±10%
Insulation Material: PVC
Color Black
Cabling Standards VDE, EAC



Model Cable Length, m Conductor cross-sectional area, mm² Conductor Material Rated Current, A P/N EAN
ExeGate Special PC-1S-Schuko(Y)->C13/3x0.5 1 0,5 CCA * EX297785 4895205177680
ExeGate Power PC-1P-Schuko(Y)->C13/3x0.5Cu 1 0,5 Copper 6 EX297778 4895205177543
ExeGate Special PC-1S-Schuko(Y)->C13/3x0.75 1 0,75 CCA 6 EX297789 4895205177697
ExeGate Power PC-1P-Schuko(Y)->C13/3x0.75Cu 1 0,75 Copper 10 EX297780 4895205177550
ExeGate Special PC-1S-Schuko(Y)->C13/3x1.0 1 1,0 CCA 10 EX297794 4895205177703
ExeGate Power PC-1P-Schuko(Y)->C13/3x1.0Cu 1 1,0 Copper 10 EX297783 4895205177567
ExeGate OfficePC PC-1.2 450W-Schuko(Y)->C13 1,2 0,5 CCA * EX297200 4895205176973
ExeGate Special PC-1.5S-Schuko(Y)->C13/3x0.5 1,5 0,5 CCA * EX297787 4895205177581
ExeGate Power PC-1.5P-Schuko(Y)->C13/3x0.5Cu 1,5 0,5 Copper 6 EX297779 4895205177505
ExeGate Power PC-1.5P-Schuko(Y)->C13/3x0.75Cu 1,5 0,75 Copper 10 EX297781 4895205177512
ExeGate Special PC-1.8S-Schuko(Y)->C13/3x0.5 1,8 0,5 CCA * ES280999 4895205111066
ExeGate Power PC-1.8P-Schuko(Y)->C13/3x0.5Cu 1,8 0,5 Copper 6 EP280658 4895205110670
ExeGate Special PC-1.8S-Schuko(Y)->C13/3x0.75 1,8 0,75 CCA 6 EX297790 4895205177604
ExeGate Power PC-1.8P-Schuko(Y)->C13/3x0.75Cu 1,8 0,75 Copper 10 EP280660 4895205110663
ExeGate Special PC-1.8S-Schuko(Y)->C13/3x1.0 1,8 1,0 CCA 10 EX297796 4895205177611
ExeGate Power PC-1.8P-Schuko(Y)->C13/3x1.0Cu 1,8 1,0 Copper 10 EX297784 4895205177529
ExeGate Special PC-3S-Schuko(Y)->C13/3x0.5 3 0,5 CCA * ES281000 4895205111103
ExeGate Power PC-3P-Schuko(Y)->C13/3x0.5Cu 3 0,5 Copper 6 EP280661 4895205110816
ExeGate Special PC-3S-Schuko(Y)->C13/3x0.75 3 0,75 CCA 6 ES281001 4895205111110
ExeGate Power PC-3P-Schuko(Y)->C13/3x0.75Cu 3 0,75 Copper 10 EP280662 4895205110823
ExeGate Special PC-3S-Schuko(Y)->C13/3x1.0 3 1,0 CCA 10 EX297798 4895205177727
ExeGate Power PC-3P-Schuko(Y)->C13/3x1.0Cu 3 1,0 Copper 10 EP280663 4895205110830
ExeGate Special PC-5S-Schuko(Y)->C13/3x0.5 5 0,5 CCA * ES281002 4895205111141
ExeGate Power PC-5P-Schuko(Y)->C13/3x0.5Cu 5 0,5 Copper 6 EP280664 4895205110878
ExeGate Special PC-5S-Schuko(Y)->C13/3x0.75 5 0,75 CCA 6 ES281003 4895205111158
ExeGate Power PC-5P-Schuko(Y)->C13/3x0.75Cu 5 0,75 Copper 10 EP280665 4895205110885
ExeGate Special PC-5S-Schuko(Y)->C13/3x1.0 5 1,0 CCA 10 EX297800 4895205177741
ExeGate Power PC-5P-Schuko(Y)->C13/3x1.0Cu 5 1,0 Copper 10 EP280666 4895205110892
ExeGate Special PC-10S-Schuko(Y)->C13/3x0.75 10 0,75 CCA 6 EX297792 4895205177642
ExeGate Power PC-10P-Schuko(Y)->C13/3x0.75Cu 10 0,75 Copper 10 EP280667 4895205110700
ExeGate Special PC-10S-Schuko(Y)->C13/3x1.0 10 1,0 CCA 10 EX297802 4895205177659
ExeGate Power PC-10P-Schuko(Y)->C13/3x1.0Cu 10 1,0 Copper 10 EP280668 4895205110717

* Depends on operating conditions
