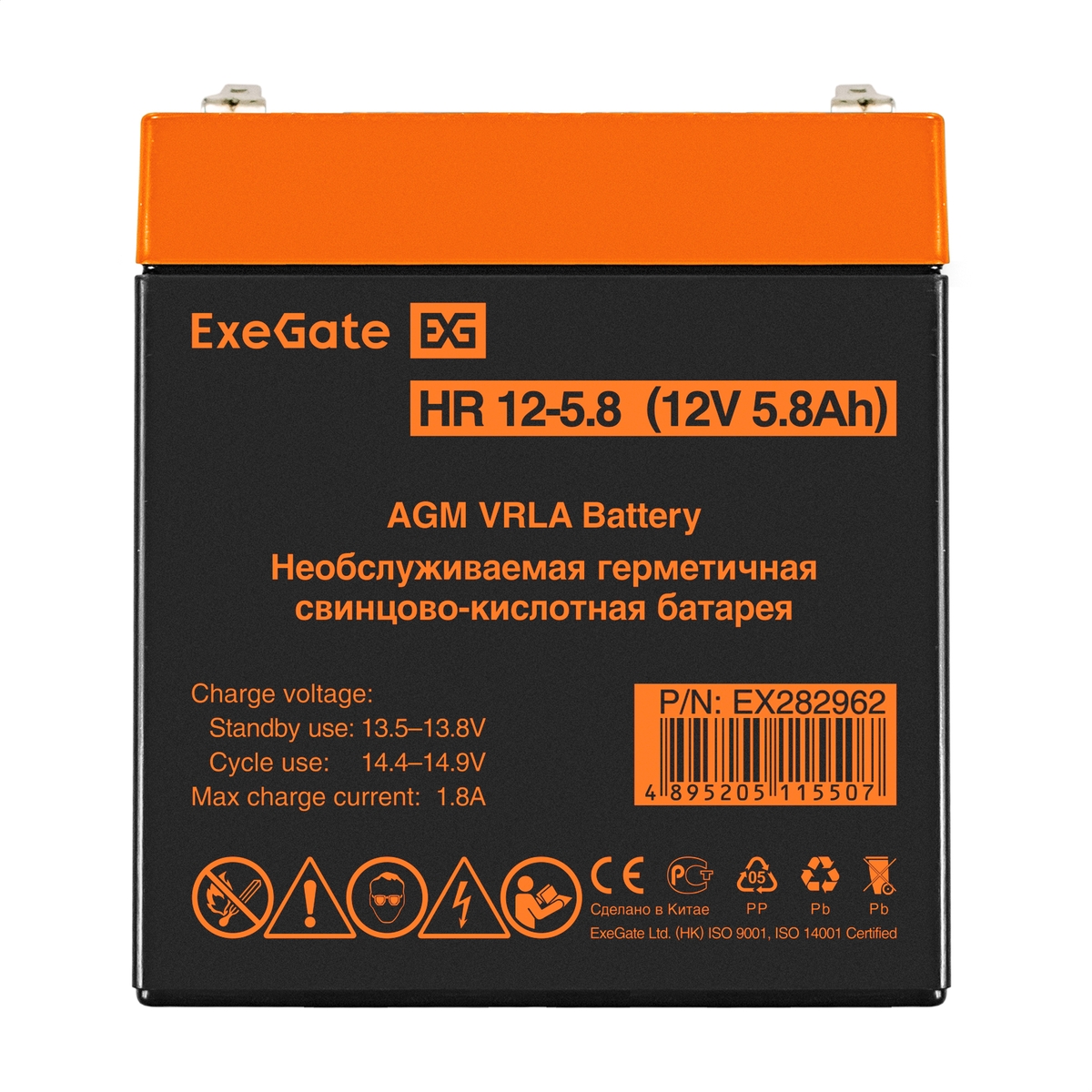

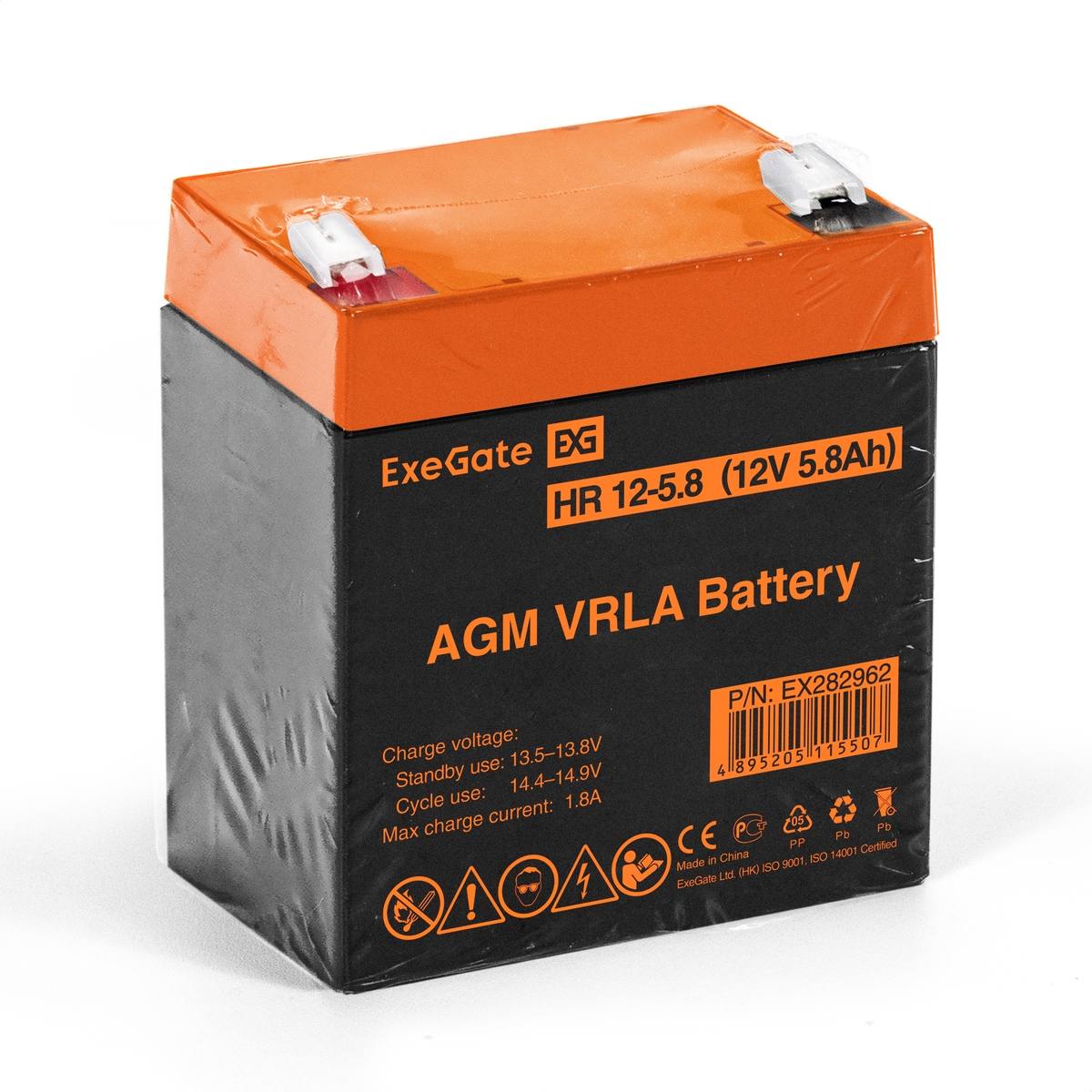

Battery ExeGate HR 12-5.8
ExeGate HR series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Optimized for continuous charging or discharge-charge modes. Excellent discharge characteristics at short discharge times.
The battery case is made of ABS UL94-HB plastic, which does not support Gorenje. Fully sealed design that eliminates electrolyte leakage. Internal gas recombination system, no need to add water.
SpecificationThe battery case is made of ABS UL94-HB plastic, which does not support Gorenje. Fully sealed design that eliminates electrolyte leakage. Internal gas recombination system, no need to add water.
| Appointment | For UPS |
| Voltage, V | 12 |
| Battery capacity, Ah | 5,8 |
| Standards and certifications | Declaration of conformity GOST 12.2.007.12-88; GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10; GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4 |
| Battery Life | |
| In buffered mode | 8 years (at 25°C) |
| Number of charge-discharge cycles in cyclic mode at 100% discharge | 260 |
| Self-discharge | 3% per month at 20°C |
| Charge method | Constant voltage charge (25°C) |
| Cyclic mode | 2.35 - 2.4 V / cell |
| Buffer mode | 2.25 - 2.3 V / cell |
| Internal resistance of a fully charged battery (25°C), m? | 30 |
| Cabinet material | ABS plastic |
| Temperature modes | |
| Storage | from -35°C to + 60°C |
| Charge | from -10°Cto + 60°C |
| Discharge | from -20°C to + 60°C |
| Warranty | 12 months if operating conditions are observed |
| Terminal type | F1 |
| Maximum discharge current (25°C) | 80A(5c) |
| Height with terminal, mm | 107 |
| Delivery set | Battery |
| Product size, mm | 90x70x101 |
| Weight, kg | 1,77 |
| P/N | EX282962 |
| EAN | 4895205115507 |
