Series CB
   |
    |

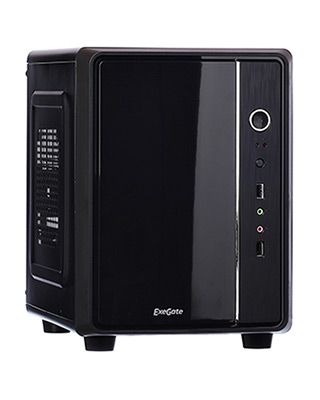

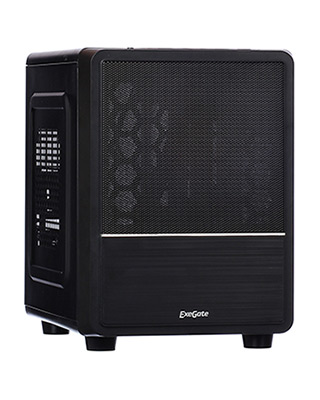

| CB-563 | CB-564 |
Specification
| Case Type | Desktop Cube |
| Motherboard Support | mini-ITX, mATX |
| Chassis Material | Steel |
| Drive Bay: | |
| Int. 3.5" | 2 |
| Int. 2.5" | 1 |
| Front I/O Ports | 2 x USB 2.0, MIC & HD Audio |
| LED indicators | 1 x Power, 1 x HDD, 1 x NIC |
| Expansion Slots | 4 |
| Cooling System | |
| Front | 1 x 8 cm |
| Rear | 2 x 8 cm |
| Side | 2 x 12 cm |
| PSU models | XP350, XP400, XP450, XP500, w/o PSU |
| Water cooling support | Yes |
| Max. motherboard length, mm | 244 |
| Max. height of the CPU fan, mm | 105 |
| Max. PSU length, mm | 160 |
| Max. SVGA length, mm | 270 |
| Case Color | Black |
| Chassis Color | Black |
| Chassis dimensions (W x H x D), mm | 222 x 290 x 280 |
| Packing dimensions (W x H x D), mm | 228 x 305 x 323 |
| Net Weight w/o PSU / with PSU, kg | 2,5/3 |
| Optional accessories | HDD Adapters Front panel 3,5" Card Reader 3,5" |
| Model | w/o PSU | 350 W | 400 W | 450 W | 500 W | |
| CB-563 | P/N | EX254061 | EX254062 | EX254063 | EX254064 | EX254065 |
| EAN | 4895205100367 | 4895205100220 | 4895205100237 | 4895205100244 | 4895205100374 | |
| CB-564 | P/N | EX254056 | EX254057 | EX254058 | EX254059 | EX254060 |
| EAN | 4895205100381 | 4895205100251 | 4895205100268 | 4895205100275 | 4895205100398 |
